Engine case 450/2005 Оригинальные запчасти для мотоциклов KTM 450 RALLYE (2005)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

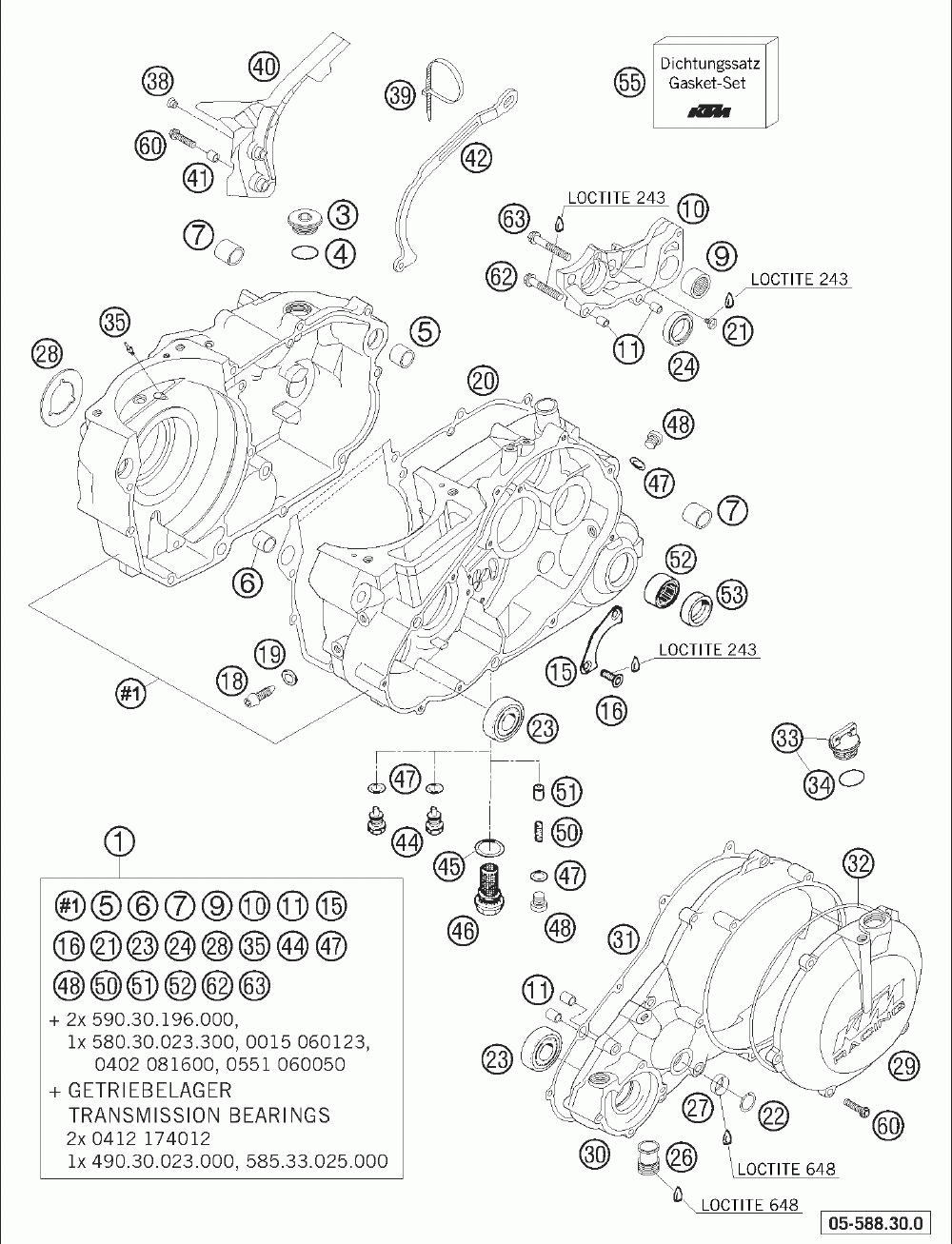

Engine case 450/2005

KTM 450 RALLYE

Engine case 450/2005

#

oem код

название

цена

4

O-ring 20x2 Viton

O-ring 20x2 Viton

5

Dowel 19 X15, 1x12

Dowel 19 X15, 1x12

6

Dowel 17 X 13 X 12

Dowel 17 X 13 X 12

9

Needle Bearing Hk 2216

Needle Bearing Hk 2216

11

Шпонка 9, 8 Х 7 Х 10

Шпонка 9, 8 Х 7 Х 10

15

Retaining Plate

Retaining Plate

16

Fl.head Scr.din7991-m6x16 10.9

Fl.head Scr.din7991-m6x16 10.9

19

Seal Ring Cu Din7603- 8x12x1

Seal Ring Cu Din7603- 8x12x1

20

Engi.case Gasket Sil C-4400

Engi.case Gasket Sil C-4400

21

Oval Head Scr. Din7985-m 5x10

Oval Head Scr. Din7985-m 5x10

23

Cylind.roll.nj 203 Ecp/c3 2001

Cylind.roll.nj 203 Ecp/c3 2001

24

Ball Bearing 61805 C3

Ball Bearing 61805 C3

26

Screw In Nozzle M20x1, 5

Screw In Nozzle M20x1, 5

27

Inspection Glass Gw 20-7

Inspection Glass Gw 20-7

28

Stop Disk 33 X 58 X 1, 5

Stop Disk 33 X 58 X 1, 5

31

Clutch Cover Gasket 2001

Clutch Cover Gasket 2001

33

Пробка M24x3

Пробка M24x3

34

Кольцо 19,00x3,00

Кольцо 19,00x3,00

35

Oil Jet 70 M6x0, 75 Ws8 03

Oil Jet 70 M6x0, 75 Ws8 03

38

Plastic Cap Sfl10

Plastic Cap Sfl10

39

Cable Tie 300/4, 8mm Black

Cable Tie 300/4, 8mm Black

41

Bushing 6, 5x8x11

Bushing 6, 5x8x11

44

Пробка сливная с магнитом M12x1,5

Пробка сливная с магнитом M12x1,5

45

Cu-seal Ring Din7603-22x27x2

Cu-seal Ring Din7603-22x27x2

46

Oil Drain Plug M22x1, 5

Oil Drain Plug M22x1, 5

47

Кольцо 12x18x1, 5

Кольцо 12x18x1, 5

48

Plug Din0908-m12x1, 5

Plug Din0908-m12x1, 5

50

Oil Pres.spring 5 Bar Red 2001

Oil Pres.spring 5 Bar Red 2001

51

Valve Piston D=10mm

Valve Piston D=10mm

52

Опорный подшипник 4903

Опорный подшипник 4903

53

Сальник 22x32x7 Bsl

Сальник 22x32x7 Bsl

60

Hh Collar Screw M 6x25 Ws=8

Hh Collar Screw M 6x25 Ws=8

61

Hh Collar Screw M 6x30 Sw=8

Hh Collar Screw M 6x30 Sw=8

62

Hh Collar Screw M 6x35 Ws=8

Hh Collar Screw M 6x35 Ws=8

63

Hh Collar Screw M 6x40 Ws=8

Hh Collar Screw M 6x40 Ws=8

66

Hh Collar Screw M 6x55 Ws=8

Hh Collar Screw M 6x55 Ws=8

68

Hh Collar Screw M 6x65 Ws=8

Hh Collar Screw M 6x65 Ws=8

63

Hh Collar Screw M6x40 Tx30

Hh Collar Screw M6x40 Tx30
