Transmission ii - countershaft 450/525 sx / 2005 Оригинальные запчасти для мотоциклов KTM 450/525 MXC RACING (2005)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Оригинальные запчасти для мотоциклов
KTM
2005
450/525 MXC RACING
Transmission ii - countershaft 450/525 sx / 2005
Transmission ii - countershaft 450/525 sx / 2005

Transmission ii - countershaft 450/525 sx / 2005

KTM 450/525 MXC RACING

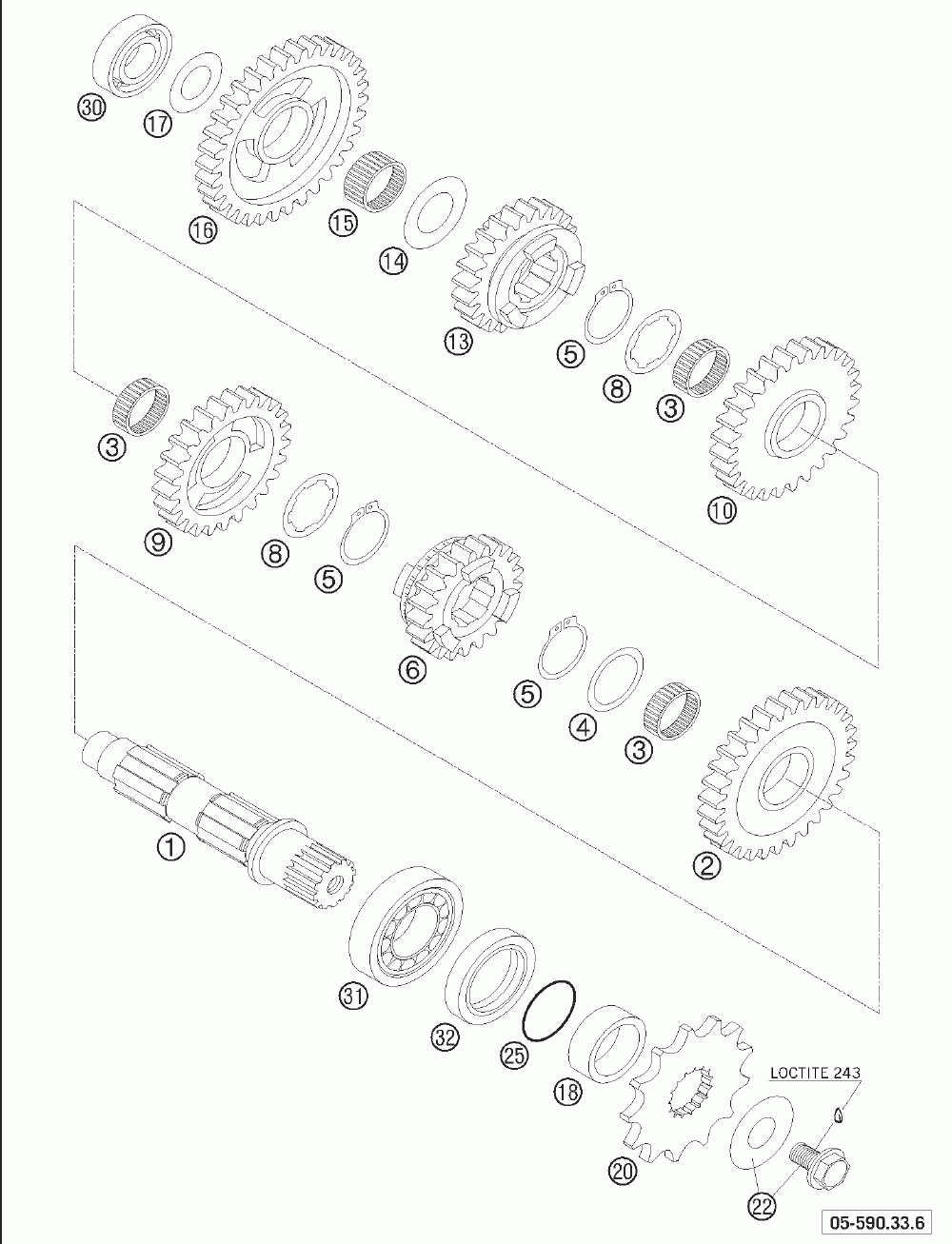

Transmission ii - countershaft 450/525 sx / 2005

#

oem код

название

цена

1

Counter Shaft Racing 2000

Counter Shaft Racing 2000

2

Idler Gear 2.g 30-t "36"

Idler Gear 2.g 30-t "36"

3

Needle Bear.k 22x26x10 Divided

Needle Bear.k 22x26x10 Divided

4

Stop Disc 25, 2x32x1, 5

Stop Disc 25, 2x32x1, 5

5

Circlip Din0471-25x1, 2

Circlip Din0471-25x1, 2

6

Sliding Gear 6.g 21-t "26"

Sliding Gear 6.g 21-t "26"

8

Stop Disc 25, 2x32x1, 5

Stop Disc 25, 2x32x1, 5

9

Idler Gear 4.g 26-t "33"

Idler Gear 4.g 26-t "33"

10

Idler Gear 3.g 28-t "47"

Idler Gear 3.g 28-t "47"

13

Sliding Gear 5.g 23-t "29"

Sliding Gear 5.g 23-t "29"

14

Shim 20x32x1

Shim 20x32x1

15

Needle Bearing K 20x26x12

Needle Bearing K 20x26x12

16

Idler Gear 1.g 32-t "43"

Idler Gear 1.g 32-t "43"

17

Stop Disc 17, 2x30x1

Stop Disc 17, 2x30x1

18

Spacer Bushing 12mm

Spacer Bushing 12mm

22

Screw 10.9+spring Washer

Screw 10.9+spring Washer

25

O-ring 25, 12x1, 78 Nbr70

O-ring 25, 12x1, 78 Nbr70

30

Ball Bearing 6203 Jr2 C3

Ball Bearing 6203 Jr2 C3

31

Cyl.roll Bearing Nj205

Cyl.roll Bearing Nj205

32

Shaft Seal Ring 32x45x7 Bslnbr

Shaft Seal Ring 32x45x7 Bslnbr
