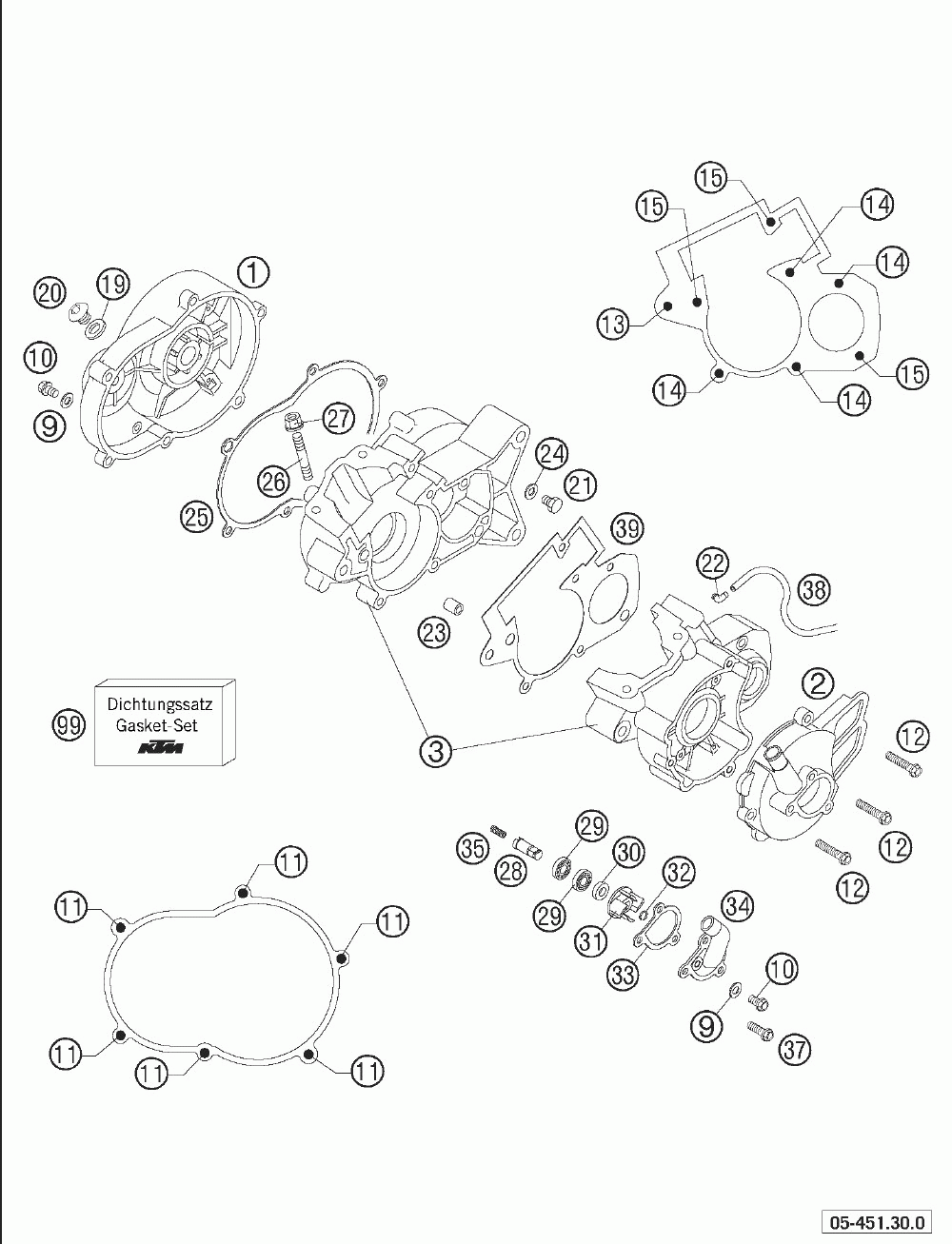

Engine case 50 lc / 2005

KTM 50 SX PRO JUNIOR LC
KTM
#oem кодцена
1
45130001100
Clutch Cover 50 2004
2
45130002000
Ignition Cover 50ccm Lc 2001
3
45130000044
Enginge Case 50ccm Lc 2001
9
0603061001
Cu-seal Ring Din7603-6x10x1
10
0015060103
Hh Collar Screw M 6x10 Ws=8
11
0015060253
Hh Collar Screw M 6x25 Ws=8
12
0015060303
Hh Collar Screw M 6x30 Sw=8
13
0015080603
Hh Collar Screw M 8x60 Ws=10
14
0912060353
Ah Screw Din0912-m 6x35
15
0912060404
Ah Screw Din0912-m 6x40 A2
19
45130019000
Gasket For Oil Plug
20
45130020000
Oil Plug 50 Lc 2001
21
46030021100
Oil Drain Plug M10 Ws=13
22
45130022000
Angle Piece 50ccm Lc 2001
23
45130023000
Dowel 7x9x10
24
0603100141
Уплотнитель шланга
25
45130025000
Gasket For Clutch Cover 2001
26
46030043000
Stud M8x41
27
46030045000
Collar Nut M8 Ws=10
28
45135054100
Water Pump Shaft 50 Lc 2007
29
46035058000
Wa.pu.bear. 10x19x5 Doublelip
30
46035056100
Shaft Seal Ring 10x18x4
31
46035055100
Water Pump Wheel 60/65 '99
32
0471090010
Circlip Din0471- 9x1
33
45135053000
Gasket Water Pump Cover 02
34
45135052000
Water Pump Cover 50 Lc 2002
35
45135058000
Spring For Water Pump Shaft 04
37
0015060163
Hh Collar Screw M 6x16 Ws=8
38
52031137001
Pvc-hose 3x5mm
39
45130039000
Engine Case Gasket 50 Lc 2001
99
45130099000
Gasket Set Cpl. 50 Lc 2001
