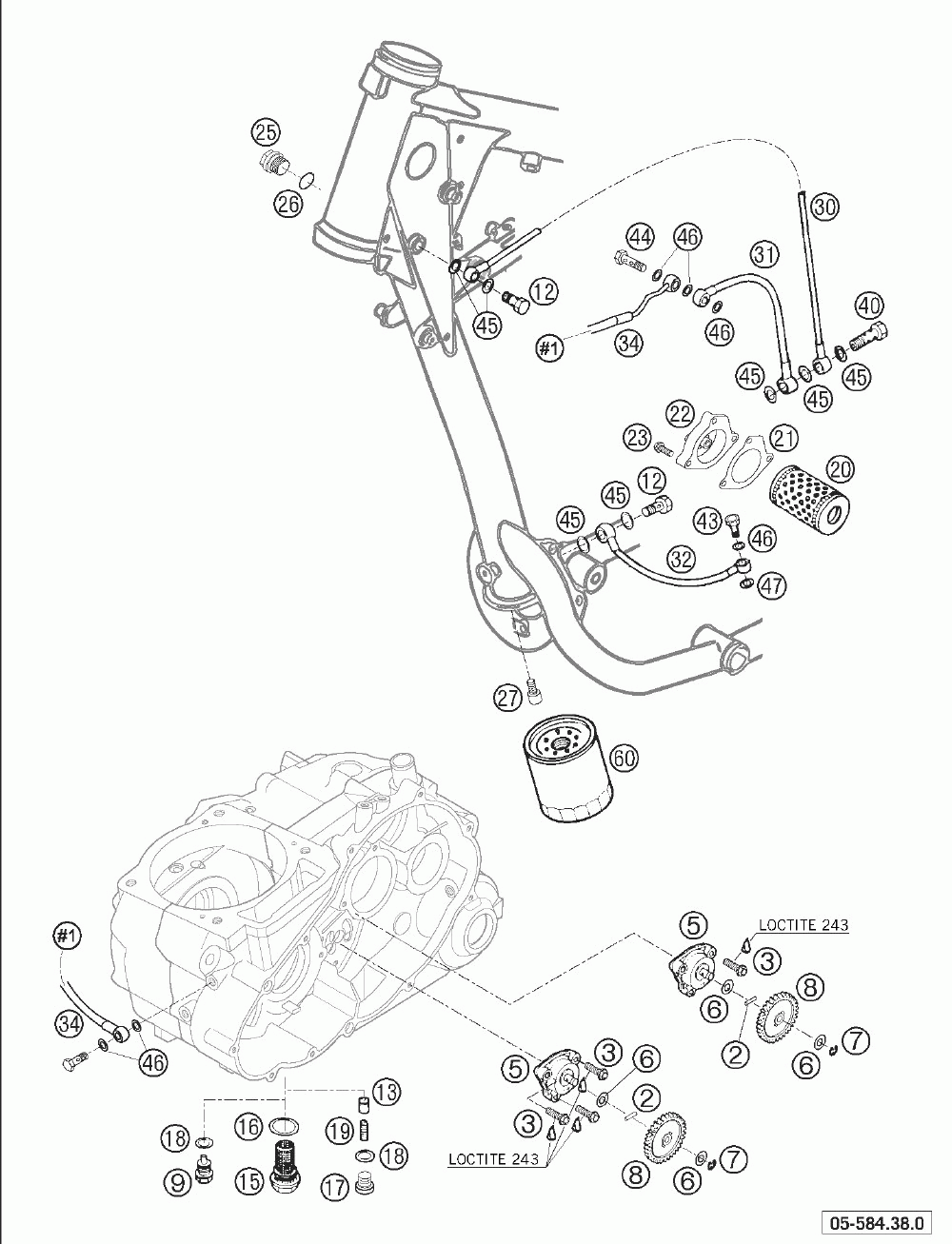

Lubricating system 625/640/2005

KTM 625 SMC
KTM
#oem кодцена
2
0402251980
Needlerol.din5402 Nra 2, 5x19, 8
3
0015060203
Hh Collar Screw M 6x20 Ws=8
5
58038007700
Oil Pump Mikuni G-73-10
6
58038007755
Stop Disk 8, 1 X 15 X 0, 5
7
0799060000
Tab Washer Din6799-rs 6, 0
8
58438001000
Oil Pump Gear 26-t
9
58030021000
Пробка сливная с магнитом M12x1,5
12
54313025000
Hollow Screw M10 X 1
13
58038028000
Valve Piston D=10mm
15
58038019100
Oil Drain Plug M22x1, 5
16
58038017100
Cu-seal Ring Din7603-22x27x2
17
0908120153
Plug Din0908-m12x1, 5
18
58038022000
Кольцо 12x18x1, 5
19
58038023300
Pressure Spring L=25mm D=1mm
20
58038005100
Oil Filter Long
21
58530041000
Oil Filter Cover Gasket 2001
22
58030008700
Oil Filter Cover 2001
23
0015060253
Hh Collar Screw M 6x25 Ws=8
25
0910160153
Plug Din0910-m16x1, 5
26
0603162220
Cu-seal Ring 16x22x2
27
0984060103
Ah Screw Din7984-m 6x10
30
58038234700
Oil Line Filter-frame Tube
31
58338034000
Oil Line Clutch Cover-frame
32
58338034100
Oil Line Clutch Cover-frame
34
58438034000
Oil Line 8/8 Bent 05
40
58038033200
Dual Banjo Bolt M10x1
43
58038130000
Jet Screw M 8 X 1 "150"
44
58038033000
Dual Banjo Bolt M8x1
45
0603100141
Уплотнитель шланга
46
0603082121
Seal Ring Cu Din7603- 8x12x1
47
58038032300
Cu-seal Ring 8 X 12 X 1, 5
60
58338045100
Screw Type Filter
