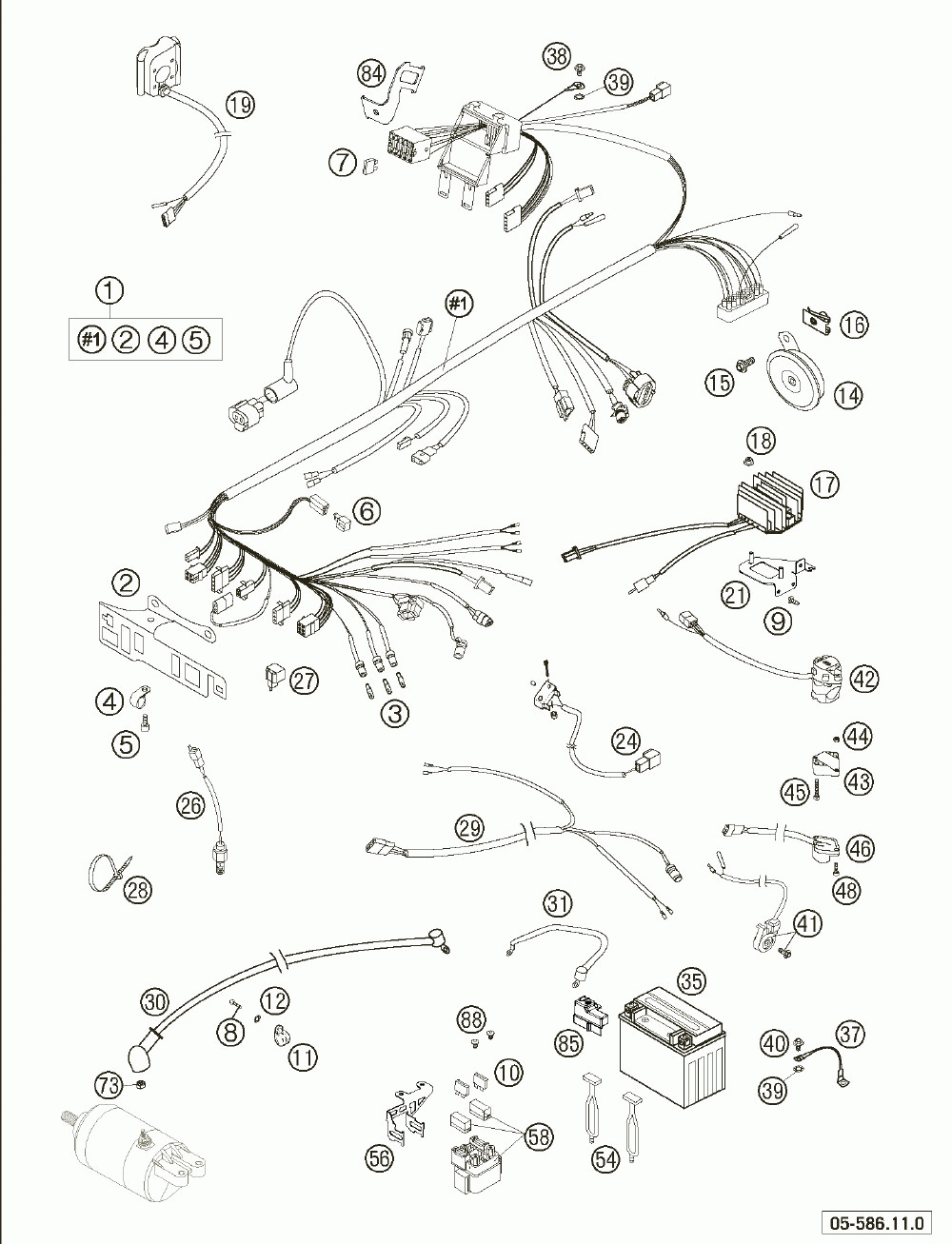

Wiring harness 625/2005

KTM 625 SMC

Wiring harness 625/2005

#

oem код

название

цена

1

Wiring Harness 625 Smc 05

Wiring Harness 625 Smc 05

2

Support Bracket Black 2001

Support Bracket Black 2001

3

Bulb 12v 1, 2w (w2x4, 6d)

Bulb 12v 1, 2w (w2x4, 6d)

4

Pvc-clamp 7, 9 Mm Heyco 3355

Pvc-clamp 7, 9 Mm Heyco 3355

5

Ah Screw Din 912 M 5x8

Ah Screw Din 912 M 5x8

6

Diode S3h-15 97

Diode S3h-15 97

8

Sheet Met.scr.din7981- 4, 8x13

Sheet Met.scr.din7981- 4, 8x13

9

Screw For Plastic 50x12

Screw For Plastic 50x12

11

Brake Cable Clamp Rsgu 9/12

Brake Cable Clamp Rsgu 9/12

12

Tooth Lock Wash. Din6797-j 5, 3

Tooth Lock Wash. Din6797-j 5, 3

14

Dc Horn L.e.b. 03

Dc Horn L.e.b. 03

15

Hh Collar Screw M 6x15 Ws=8

Hh Collar Screw M 6x15 Ws=8

16

Range Change Metal Nut M6

Range Change Metal Nut M6

17

Volt.regulator-rectifier 12v

Volt.regulator-rectifier 12v

18

Self Locking Nut M6 10.9

Self Locking Nut M6 10.9

19

Start-stop Switch 2000

Start-stop Switch 2000

19

Start-stop Tip Switch 2001

Start-stop Tip Switch 2001

21

Bracket Regulator 06

Bracket Regulator 06

24

Brake Light Switch Front Sm 03

Brake Light Switch Front Sm 03

26

Brake Light Switch Rear '98

Brake Light Switch Rear '98

27

Flasher Unit 97

Flasher Unit 97

29

Wiring Harness Rear 05

Wiring Harness Rear 05

30

Startercable L=810mm 05

Startercable L=810mm 05

31

Battery Cable L=140mm 05

Battery Cable L=140mm 05

35

Battery 12v 8, 6ah 03

Battery 12v 8, 6ah 03

37

Ground Cable L=80mm 05

Ground Cable L=80mm 05

38

Hh Collar Screw M 6x10 Ws=8

Hh Collar Screw M 6x10 Ws=8

39

Contact Washer M6 Vsv-k6

Contact Washer M6 Vsv-k6

40

Hh Collar Screw M 6x12 Ws=8

Hh Collar Screw M 6x12 Ws=8

41

Side Stand Switch Cpl. '97

Side Stand Switch Cpl. '97

42

H.light Switch Cev Egs Aus.'98

H.light Switch Cev Egs Aus.'98

43

Adapter For Flasher Switch '98

Adapter For Flasher Switch '98

44

Hexagon Nut Din0934-m 4

Hexagon Nut Din0934-m 4

45

Cyl.head Screw Din0084-m 4x22a

Cyl.head Screw Din0084-m 4x22a

46

Flasher Switch Cev '98

Flasher Switch Cev '98

48

Flat Head Screw Din7985-m 4x16

Flat Head Screw Din7985-m 4x16

54

Rubber L=145mm

Rubber L=145mm

56

Bracket Starter Relay 05

Bracket Starter Relay 05

58

Starter Relay 12v '99

Starter Relay 12v '99

73

Self Lock. Nut Din0985-m 6

Self Lock. Nut Din0985-m 6

84

Bracket Fuse Box 05

Bracket Fuse Box 05

85

Terminal Post Cover 05

Terminal Post Cover 05

88

Ah Oval Screw Iso 7380 M 6x8

Ah Oval Screw Iso 7380 M 6x8

3

Bulb 12v 2, 3w (w2x4, 6d)

Bulb 12v 2, 3w (w2x4, 6d)
