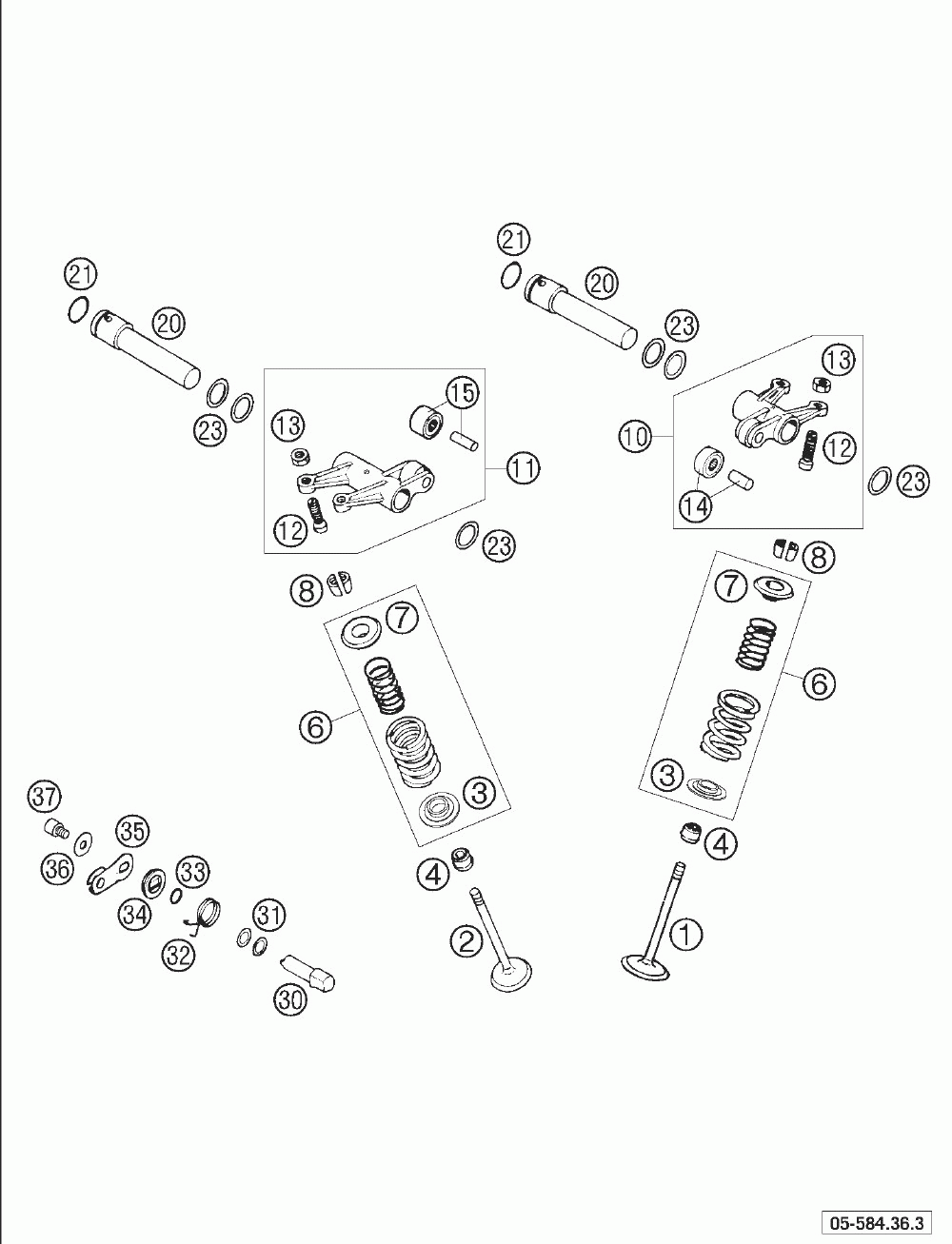

Valve drive 625-660/2005

KTM 625 SXC
KTM
#oem кодцена
1
58036030000
Intake Valve D=36 Mm
2
58536031000
Exhaust Valve D=32 Mm 2001
3
57336036000
Valve Spring Holder Graded
4
58036028000
Valve-steam Sealing
6
58536029044
Valve Spring Kit Rallye 2001
7
58036032700
Valve-spring Retainer Alu '95
8
58036033000
Valve Collet Mk7
10
58536060144
Rocker Arm Intake Cpl. 2005
11
58536061144
Rocker Arm Exhaust Cpl. 2005
12
58036062600
Adjustment Screw Cpl. M 7x0, 75
13
0934070756
Hexagon Nut Din0934-m 7x0, 75
14
58036061090
Rocker Arm Roller Cpl. Intake
15
58336061090
Rocker Arm Roller Cpl. Exhaust
20
58536056100
Rocker Arm Shaft L=96mm 7, 2mm
21
58036095000
O-ring 15, 08 X 2, 62 Nbr 70
30
58036050100
Decompression Shaft
32
58036059200
Decomp.lever Spring
33
0770100221
O-ring 10, 00x2, 20 Silicone
34
58036048000
Cover Disk
35
58036049500
Decompression Lever
36
0021060003
Washer Din9021-a 6, 4
37
0912060103
Ah Screw Din0912-m 6x10
