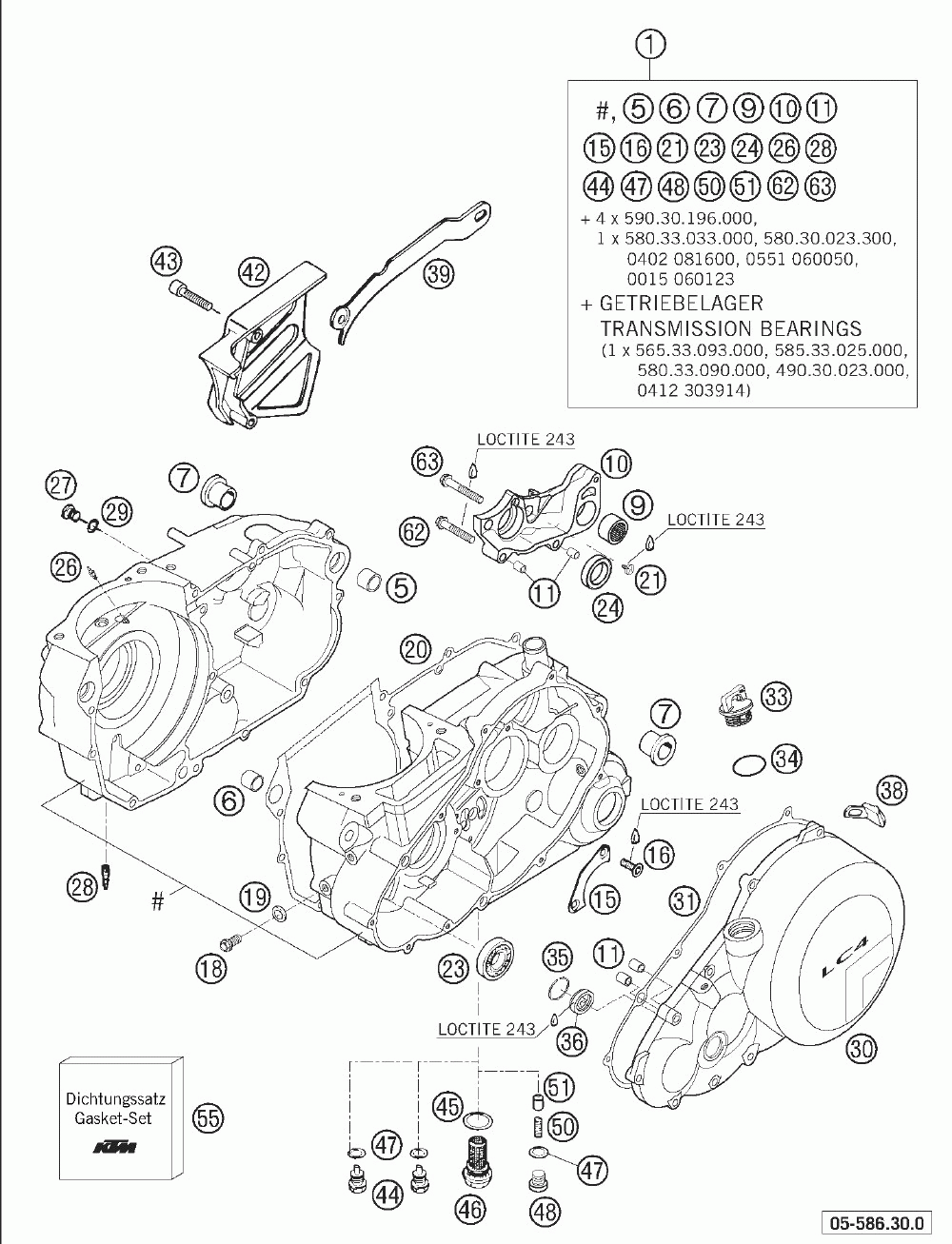

Engine case 660/2005

KTM 640 LC4 ENDURO

Engine case 660/2005

#

oem код

название

цена

5

Dowel 19 X15, 1x12

Dowel 19 X15, 1x12

6

Dowel 17 X 13 X 12

Dowel 17 X 13 X 12

7

Crank Case Bush

Crank Case Bush

9

Needle Bearing Hk 2216

Needle Bearing Hk 2216

10

Shift Mechanism Support Lc4'94

Shift Mechanism Support Lc4'94

11

Шпонка 9, 8 Х 7 Х 10

Шпонка 9, 8 Х 7 Х 10

15

Retaining Plate

Retaining Plate

16

Fl.head Scr.din7991-m6x16 10.9

Fl.head Scr.din7991-m6x16 10.9

18

Hh Collar Screw M 8x16 Ws=10

Hh Collar Screw M 8x16 Ws=10

19

Seal Ring Cu Din7603- 8x12x1

Seal Ring Cu Din7603- 8x12x1

20

Engine Case Sil C4302 0, 5

Engine Case Sil C4302 0, 5

21

Oval Head Scr. Din7985-m 5x10

Oval Head Scr. Din7985-m 5x10

23

Cylind.roll.nj 203 Ecp/c3 2001

Cylind.roll.nj 203 Ecp/c3 2001

24

Ball Bearing 61805 C3

Ball Bearing 61805 C3

26

Oil Jet 70 M6x0, 75 Ws8 03

Oil Jet 70 M6x0, 75 Ws8 03

27

Oil Drain Plug M10x1, 5 Ah-ws=6

Oil Drain Plug M10x1, 5 Ah-ws=6

28

Tube Lw 3

Tube Lw 3

29

Уплотнитель шланга

Уплотнитель шланга

30

Clutch Cover Cpl. Grey 03

Clutch Cover Cpl. Grey 03

31

Clutch Cover Gasket 2001

Clutch Cover Gasket 2001

33

Пробка M24x3

Пробка M24x3

34

Кольцо 19,00x3,00

Кольцо 19,00x3,00

35

Стопор

Стопор

36

Стекло - уровень масла

Стекло - уровень масла

38

Bump Rubber

Bump Rubber

42

Chain Cover Black '99

Chain Cover Black '99

43

Ah Screw Din0912-m 6x30

Ah Screw Din0912-m 6x30

44

Пробка сливная с магнитом M12x1,5

Пробка сливная с магнитом M12x1,5

45

Cu-seal Ring Din7603-22x27x2

Cu-seal Ring Din7603-22x27x2

46

Oil Drain Plug M22x1, 5

Oil Drain Plug M22x1, 5

47

Кольцо 12x18x1, 5

Кольцо 12x18x1, 5

48

Plug Din0908-m12x1, 5

Plug Din0908-m12x1, 5

50

Oil Pres.spring 5 Bar Red 2001

Oil Pres.spring 5 Bar Red 2001

51

Valve Piston D=10mm

Valve Piston D=10mm

55

Gasket Set Lc4 2003

Gasket Set Lc4 2003

60

Hh Collar Screw M 6x25 Ws=8

Hh Collar Screw M 6x25 Ws=8

61

Hh Collar Screw M 6x30 Sw=8

Hh Collar Screw M 6x30 Sw=8

62

Hh Collar Screw M 6x35 Ws=8

Hh Collar Screw M 6x35 Ws=8

63

Hh Collar Screw M 6x40 Ws=8

Hh Collar Screw M 6x40 Ws=8

66

Hh Collar Screw M 6x55 Ws=8

Hh Collar Screw M 6x55 Ws=8

68

Hh Collar Screw M 6x65 Ws=8

Hh Collar Screw M 6x65 Ws=8

63

Hh Collar Screw M6x40 Tx30

Hh Collar Screw M6x40 Tx30
