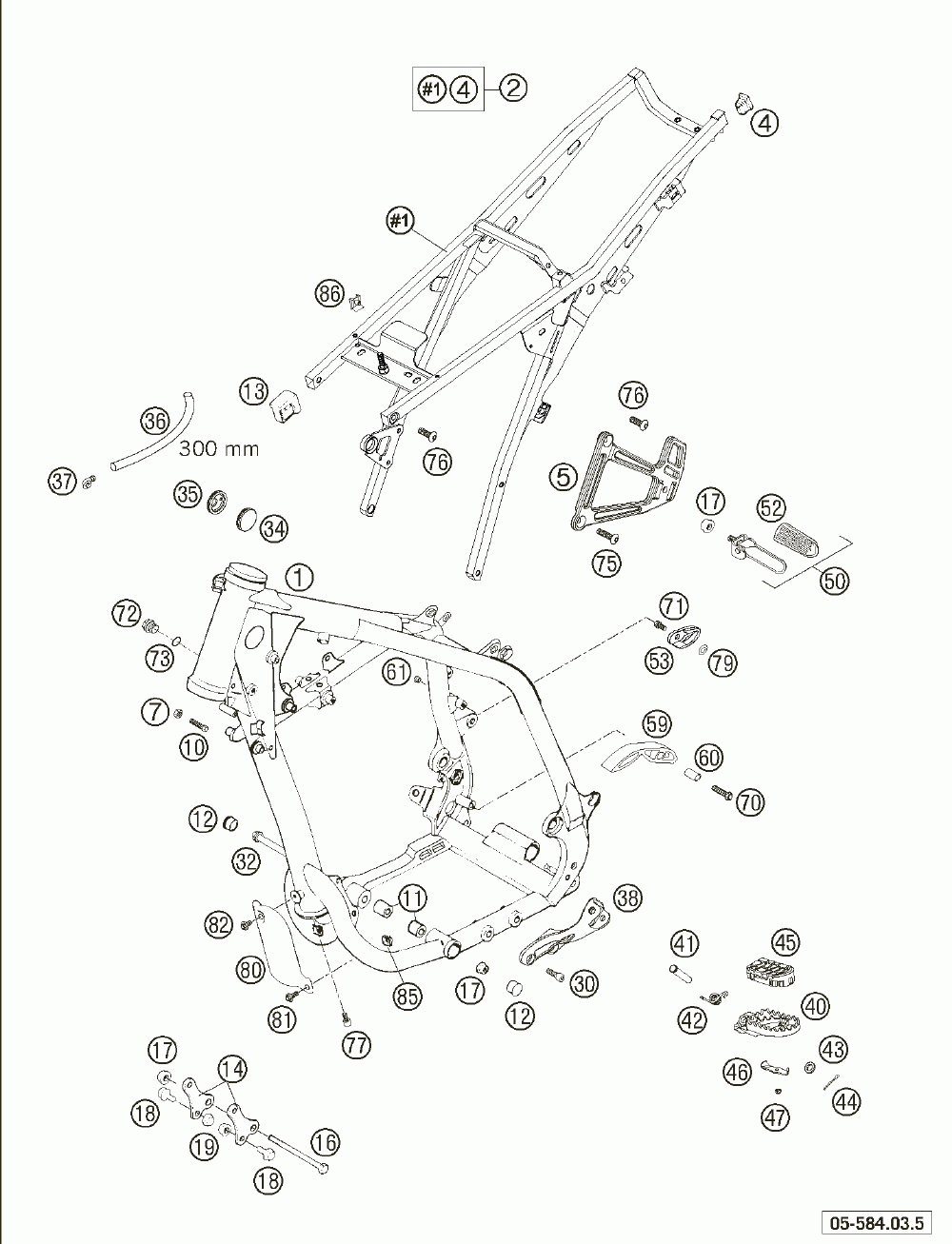

Frame · sub frame 640/2005

KTM 640 LC4 SUPERMOTO

Frame · sub frame 640/2005

#

oem код

название

цена

2

Subframe Cpl. "p5" 05

Subframe Cpl. "p5" 05

4

Plug 12 X 17 Mm

Plug 12 X 17 Mm

5

Footrestbr. Rear R. Antra 2000

Footrestbr. Rear R. Antra 2000

5

Footrest Bracket R/s Black

Footrest Bracket R/s Black

5

Footrest Bracket Re.l/s Bla.04

Footrest Bracket Re.l/s Bla.04

7

Hexagon Nut Din0934-m 8

Hexagon Nut Din0934-m 8

10

Special Screw M8x26 Ws=10

Special Screw M8x26 Ws=10

11

Spacer Roller 10, 3x20x22

Spacer Roller 10, 3x20x22

12

Pvc Cap D=22mm

Pvc Cap D=22mm

13

Tank Support '93

Tank Support '93

14

Engine Support Agw '94

Engine Support Agw '94

16

Engine Brac.screw M10x110 Ws13

Engine Brac.screw M10x110 Ws13

17

Collar Nut M10 Ws=13

Collar Nut M10 Ws=13

18

Hh Collar Screw M 8x16 Ws=13

Hh Collar Screw M 8x16 Ws=13

19

Self Locking Nut M8 10.9

Self Locking Nut M8 10.9

30

Ah Screw Din6912-m10x25, 10.9, L

Ah Screw Din6912-m10x25, 10.9, L

32

Engine Brac.screw M10x160 Ws13

Engine Brac.screw M10x160 Ws13

34

Plug 37mm

Plug 37mm

35

Plug 37mm Perforated 04

Plug 37mm Perforated 04

36

Pvc-hose 7x10 Per Meter

Pvc-hose 7x10 Per Meter

37

Angle Piece '97

Angle Piece '97

38

Footrest Bracket Left Alu 05

Footrest Bracket Left Alu 05

40

Foot Peg L/s Silver 02

Foot Peg L/s Silver 02

40

Foot Peg R/s Silver 02

Foot Peg R/s Silver 02

41

Bolt For Foot Ped 03

Bolt For Foot Ped 03

42

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

43

Washer Din0125-a10, 5

Washer Din0125-a10, 5

44

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

45

Footrest Rubber Front L/s 03

Footrest Rubber Front L/s 03

45

Footrest Rubber Front R/s 03

Footrest Rubber Front R/s 03

46

Closing Panel Front L/s R/s 03

Closing Panel Front L/s R/s 03

47

Самоконтрящаяся Гайка 0985-м DIN 5

Самоконтрящаяся Гайка 0985-м DIN 5

50

Footrest Rear L/s Cpl. '95

Footrest Rear L/s Cpl. '95

50

Foot Rest Rear R/s Cpl.'95

Foot Rest Rear R/s Cpl.'95

52

Footrest Rubber L/s&r/s Duke95

Footrest Rubber L/s&r/s Duke95

53

Chain Sliding Piece 05

Chain Sliding Piece 05

59

Chain Sliding Piece Below '97

Chain Sliding Piece Below '97

60

Bushing 8, 2x10x20

Bushing 8, 2x10x20

61

Plastic Cap Sfl10

Plastic Cap Sfl10

70

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

71

Hh Collar Screw M 8x16 Ws=10

Hh Collar Screw M 8x16 Ws=10

72

Plug Din0910-m16x1, 5

Plug Din0910-m16x1, 5

73

Cu-seal Ring 16x22x2

Cu-seal Ring 16x22x2

75

Ah Screw 8x29 Fl.head 04

Ah Screw 8x29 Fl.head 04

76

Sprocket Screw-ah M8x26 Ws=6

Sprocket Screw-ah M8x26 Ws=6

77

Ah Screw Din7984-m 6x10

Ah Screw Din7984-m 6x10

79

Washer Din0125-a 8, 4

Washer Din0125-a 8, 4

80

Cover Oil Filter '94

Cover Oil Filter '94

81

Hh Collar Screw M 6x15 Ws=8

Hh Collar Screw M 6x15 Ws=8

82

Hh Collar Screw M6x10 Tx30

Hh Collar Screw M6x10 Tx30

85

Snap-nut Holder M6 Kp142

Snap-nut Holder M6 Kp142

86

Range Change Metal Nut M6

Range Change Metal Nut M6
