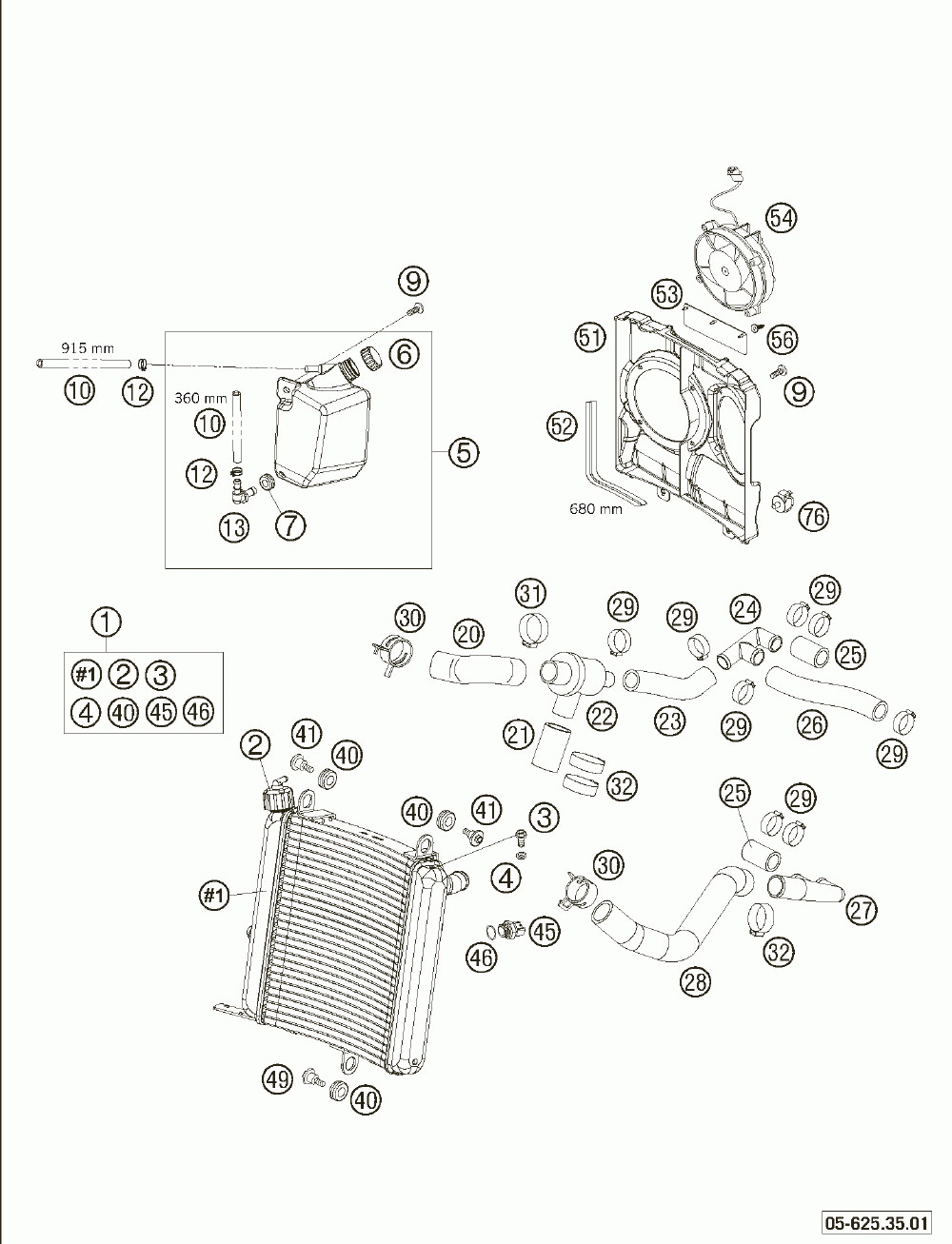

Cooling system 950/2005

KTM 950 SUPERMOTO
KTM
#oem кодцена
1
62535010000
Radiator 950 Sm 05
2
45135009000
Radiator Cap 50 Lc 1, 0 Bar
3
0015060103
Hh Collar Screw M 6x10 Ws=8
4
0125060003
Washer Din0125-a 6, 4
5
62535065000
Water Expansion Tank 05
6
60035066000
Plug F. Expansion Tank
7
60035069000
Rubber Grommet 6x9x13mm 04
9
0014060153
Hh Collar Screw M 6x15 Ws=8
12
58007117000
Ydnac-clamp 10107 10mm
13
60035068000
Angle Connection Expans. Tank
20
62535031000
Radiator Hose 05
21
60035030000
Radiator Hose Therm./pump 03
22
60035017000
Thermostat 75 Cpl. W. Case 03
23
62535025000
Radiator Hose Therm./distr. 05
24
60035019000
Distributor R/s 18/18/18mm 03
25
60035026000
Radiator Hose Cyl./distr. 03
26
60035027000
Radiator Hose Distr./distr. 03
27
60035028000
Distributor L/s 18/18/25mm 03
28
62535024000
Radiator Hose 05
29
00050271708
Variable One-ear Clamp 27, 1mm
30
00049320121
Clamp Std Dn32
31
00050346706
Variable One-ear Clamp 34, 6mm
32
00050331706
Variable One-ear Clamp 33, 1mm
40
41001052000
Rubber Sleeve D=12mm
41
60035001000
Special Screw M6x21 Ws=8
45
60035045000
Thermoswitch Lc8 102dg '03
46
0770017015
O-ring 17x1, 5 Nb75
49
60038083000
Screw Oil Tank Fixing 03
51
62535044000
Fan Cowl 05
53
62635044050
Fan Clack Rubber 08
54
58435041000
Fan Cpl. 12v Lc4 2000
76
58111076000
Хомут
