Rear wheel 105 Оригинальные запчасти для мотоциклов KTM 105 SX (2004)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

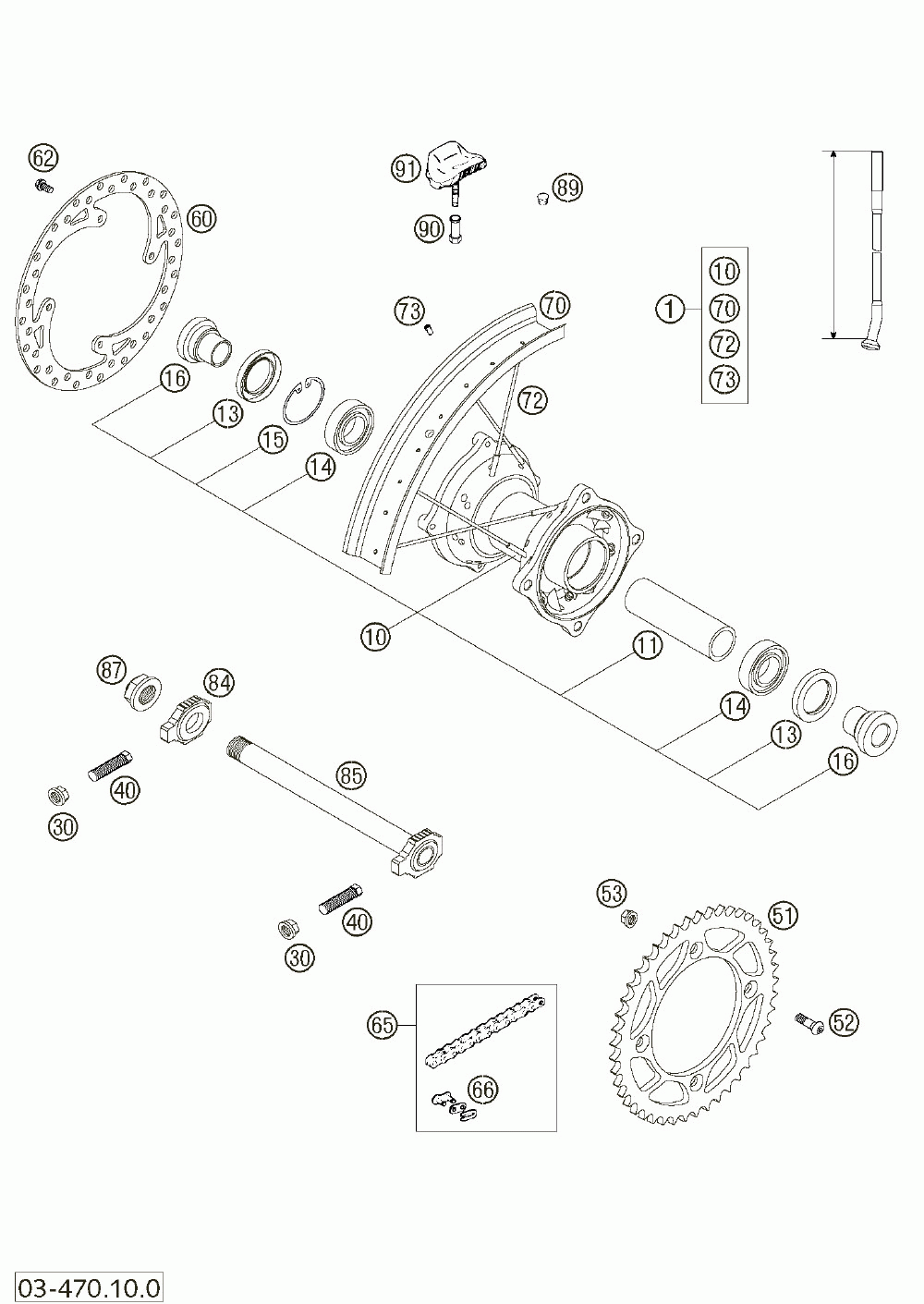

Rear wheel 105

KTM 105 SX

Rear wheel 105

#

oem код

название

цена

1

Rear Wheel Sp 85 Sx 16" 03

Rear Wheel Sp 85 Sx 16" 03

10

Rear Wheel Hub Cpl. 85 Sx 03

Rear Wheel Hub Cpl. 85 Sx 03

11

Bearing Spacer Tube 85 Sx 03

Bearing Spacer Tube 85 Sx 03

13

Shaft Seal Ring 32x47x7 Bsl

Shaft Seal Ring 32x47x7 Bsl

14

Gr.ball Bear.6005 Ddu2cg23s6nm

Gr.ball Bear.6005 Ddu2cg23s6nm

15

Circlip Din0472-47x1, 75

Circlip Din0472-47x1, 75

16

Bushing For Hub

Bushing For Hub

30

Hh Collar Nut M10x1, 25 Ws=13

Hh Collar Nut M10x1, 25 Ws=13

40

Screw M10x1, 25x50 Ws=10

Screw M10x1, 25x50 Ws=10

51

Rear Sprocket 49-t 85 Sx 03

Rear Sprocket 49-t 85 Sx 03

52

Sprocket Screw-ah M8x26 Ws=6

Sprocket Screw-ah M8x26 Ws=6

53

Self Locking Nut M8 10.9

Self Locking Nut M8 10.9

60

Brake Disc Rear D=200mm 03

Brake Disc Rear D=200mm 03

62

Special Screw M6x16 Ws=8 10.9

Special Screw M6x16 Ws=8 10.9

65

Chain 124 Rolls 85 Sx

Chain 124 Rolls 85 Sx

66

Connecting Link 85 Sx

Connecting Link 85 Sx

70

Rim Rear Al4 16x1, 85-32 03

Rim Rear Al4 16x1, 85-32 03

72

Spoke Rear 16" 4/3, 5/4-171 03

Spoke Rear 16" 4/3, 5/4-171 03

73

Spoke Nipple M4, 5x0, 75 8x21

Spoke Nipple M4, 5x0, 75 8x21

84

Chain Tensioner R/s 2000

Chain Tensioner R/s 2000

85

Axle Rear Cpl. 85 Sx 2003

Axle Rear Cpl. 85 Sx 2003

87

Hexagon Nut M20x1, 5 '98

Hexagon Nut M20x1, 5 '98

90

Nut For Wheel Holder '96

Nut For Wheel Holder '96

91

Rim Lock Vm1 (1, 60")

Rim Lock Vm1 (1, 60")
