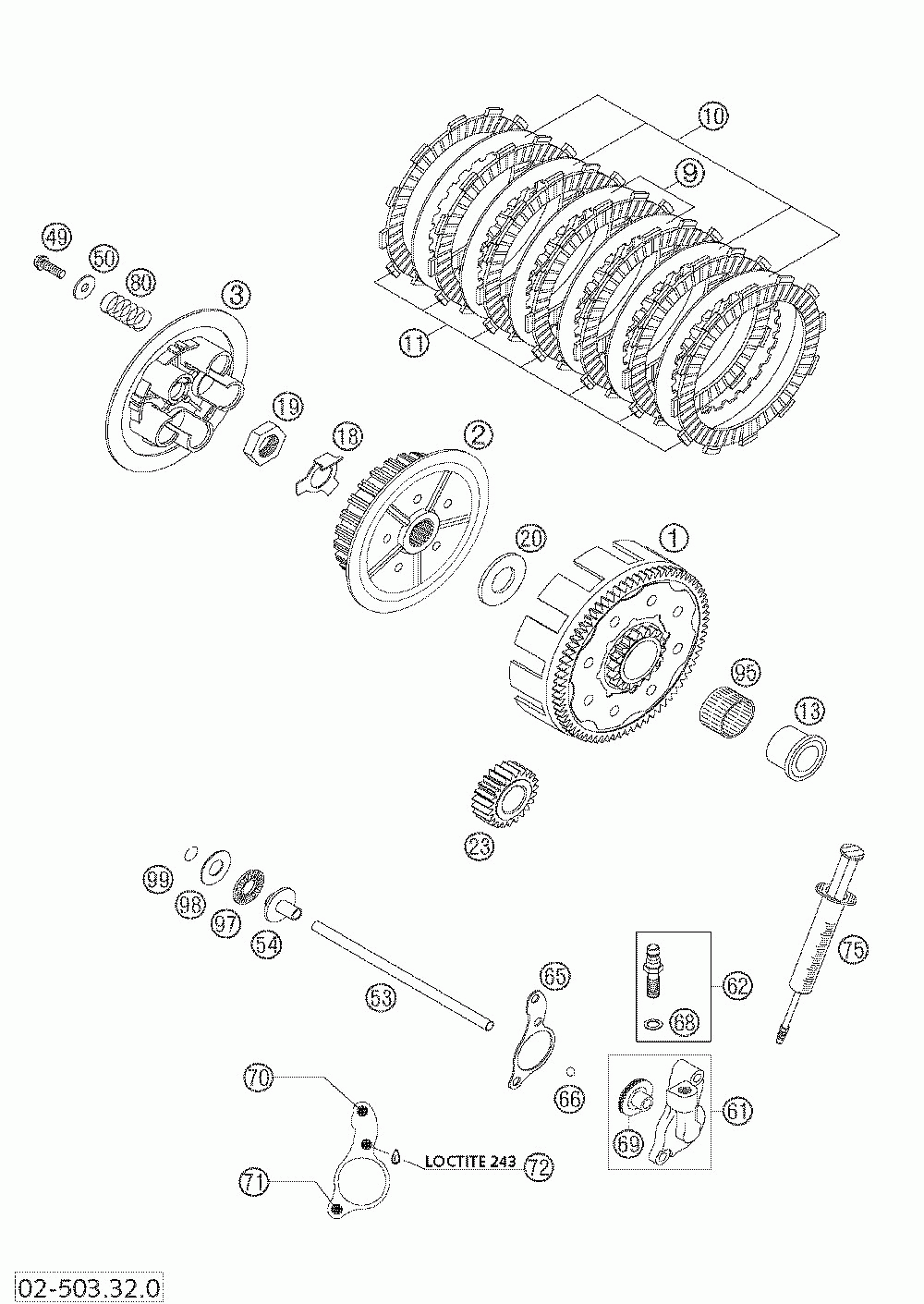

Clutch 125/200

KTM 125/200 SX

Clutch 125/200

#

oem код

название

цена

1

Outer Clutch H.73-t 125/200

Outer Clutch H.73-t 125/200

2

Inner Clutch Hub 125/200'98

Inner Clutch Hub 125/200'98

3

Pressure Plate 125/200'98

Pressure Plate 125/200'98

9

Intermedi. Disc Steel 1, 5mm'98

Intermedi. Disc Steel 1, 5mm'98

10

Interm'iate Disc Alu 1, 5mm'98

Interm'iate Disc Alu 1, 5mm'98

11

Organic Disk 3mm '98

Organic Disk 3mm '98

13

Inner Ring 20x26x25, 9 '98

Inner Ring 20x26x25, 9 '98

18

Sheet Metal Lock 1, 5mm '98

Sheet Metal Lock 1, 5mm '98

19

Hexagon Nut Din0936-m18x1, 5 R.

Hexagon Nut Din0936-m18x1, 5 R.

20

Stop Disk 20x39, 6x3 '98

Stop Disk 20x39, 6x3 '98

23

Prim. Pinion 23-t 125/200'98

Prim. Pinion 23-t 125/200'98

49

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

50

Washer 6, 2x18x2

Washer 6, 2x18x2

53

Push Rod L=178 125/200 2006

Push Rod L=178 125/200 2006

54

Pressure Piece 125-380 '98

Pressure Piece 125-380 '98

61

Cylinder Cpl. 125/200'98

Cylinder Cpl. 125/200'98

62

Hollow Screw Cpl. M 10x1 '98

Hollow Screw Cpl. M 10x1 '98

66

Ball Din5401-7

Ball Din5401-7

68

Cu-seal Ring Din7603-10x16x1

Cu-seal Ring Din7603-10x16x1

69

Piston W. O-ring 125/200 2000

Piston W. O-ring 125/200 2000

70

Hh Collar Screw M 6x40 Ws=8

Hh Collar Screw M 6x40 Ws=8

72

Hh Collar Screw M 6x25 Ws=8

Hh Collar Screw M 6x25 Ws=8

75

Vent Injektion Hydr. Clutch

Vent Injektion Hydr. Clutch

80

Clutch Spring 2, 3x39, 5 125'98

Clutch Spring 2, 3x39, 5 125'98

80

Clutch Spring 2, 4x40 200'98

Clutch Spring 2, 4x40 200'98

95

Needle Bearing K26x30x22zw.kse

Needle Bearing K26x30x22zw.kse

97

Axial Needle Bearing Axk 1226

Axial Needle Bearing Axk 1226

98

Axial Washer As1226 12x26x1

Axial Washer As1226 12x26x1

99

Circlip Din7993-rw12

Circlip Din7993-rw12

70

Hh Collar Screw M6x40 Tx30

Hh Collar Screw M6x40 Tx30
