Frame, sub frame 250/450/525 Оригинальные запчасти для мотоциклов KTM 450 SX, MXC, EXC RACING (2004)

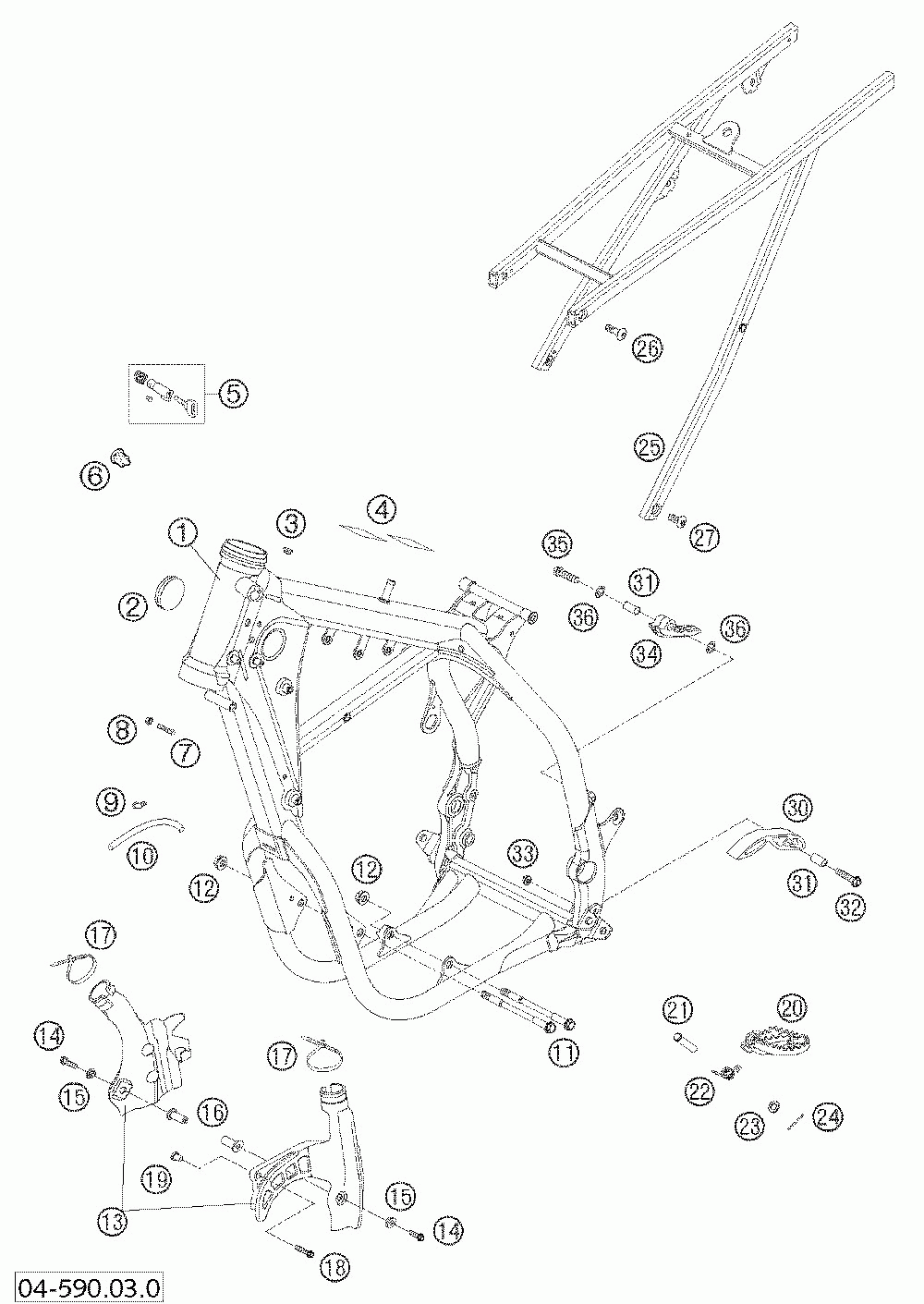

Frame, sub frame 250/450/525

KTM 450 SX, MXC, EXC RACING

oem код

название

цена

5940300110096

Frame Sx Racing "v4" 04

5940300120096

Frame Exc Racing Usa "t4" 04

54606004000

Plug 37mm

36111021000

Заглушка

50307012000

Adh. Foil Transp. 80x80 Mm 04

71003007000

Steering Head Lock Cpl. Zadi

42007049000

Plastic Cap

59001037000

Special Screw M8x26 Ws=10

0934080003

Hexagon Nut Din0934-m 8

50303089000

Angle Piece '97

55007016001

Pvc-hose 7x10 Per Meter

59003013000

Enginebrac.screw M10x123 Ws=13

54310086100

Self Locking Nut M10 Cu Ws=14

54803094000

Frame Protection Set 03

0014050253

Hh Collar Screw M 5x25 Ws=6

54803092060

Bush F. Frame Protection 03

54803092050

Blind Plug-in Nut M5 Wn 22a 03

44011076305

Cable Tie 300/4, 8mm Black

0015060353

Hh Collar Screw M 6x35 Ws=8

59030060050

Bushing F. Sprocket Cover Rac.

59003040250

Foot Peg L/s Silver 02

59003041250

Foot Peg R/s Silver 02

54803044000

Bolt For Foot Ped 03

54603041000

Footrest Spring L/s & R/s

0125100003

Washer Din0125-a10, 5

0094032253

Pin Din0094-3, 2x25 Steel

59403002044

Sub Frame Cpl. Alu Rac.(g3) 03

59403002144

Sub Frame Cpl. Alu Racing 04

54510052100

Sprocket Screw-ah M8x26 Ws=6

54610052000

Винт M8x20 Ws=6

51103053000

Chain Sliding Piece Below '97

51103053051

Bushing 8, 2x10x20

0015080353

Hh Collar Screw M 8x35 Ws=10

54310086200

Self Locking Nut M8 10.9

54804067000

Chain Sliding Piece 03

0025080306

Hh Collar Screw M8x30 Tx40

36003014000

Стопорная шайба 8 мм
