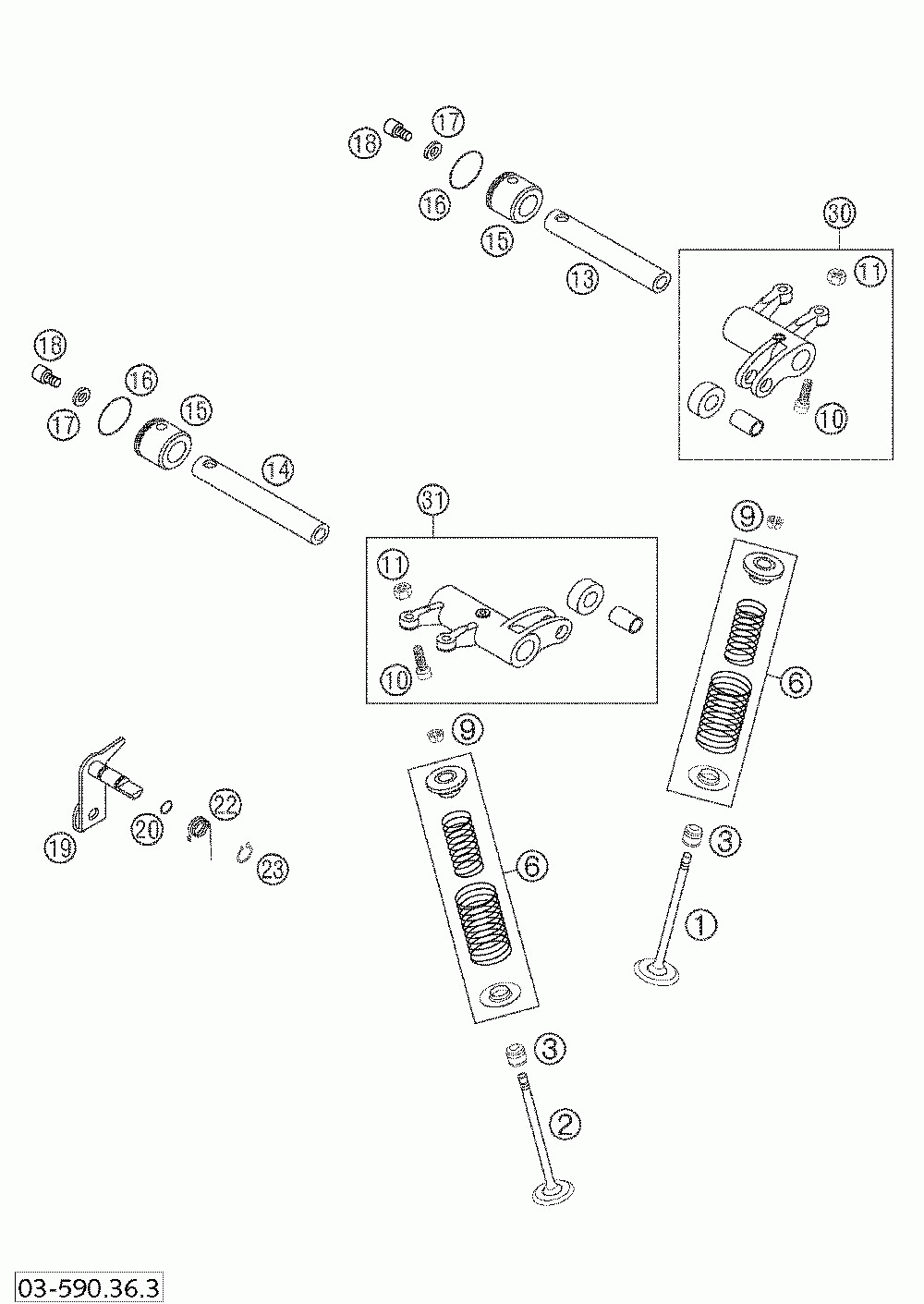

Valve drive 450 sx

KTM 450 SX, MXC, EXC RACING

Valve drive 450 sx

#

oem код

название

цена

1

Intake Valve D=35mm Titan 03

Intake Valve D=35mm Titan 03

2

Exhaust Valve D=30mm Titan 03

Exhaust Valve D=30mm Titan 03

3

Valve-stem Sealing Racing

Valve-stem Sealing Racing

6

Valve Spring Set Cpl. 04

Valve Spring Set Cpl. 04

9

Valve Collet Kk 6 H

Valve Collet Kk 6 H

10

Adjustment Screw M6x0, 75

Adjustment Screw M6x0, 75

11

Nut M6x0, 75

Nut M6x0, 75

13

Rocker Arm Shaft Intake

Rocker Arm Shaft Intake

14

Rocker Arm Shaft Exhaust

Rocker Arm Shaft Exhaust

15

End Cap Rocker Arm Shaft

End Cap Rocker Arm Shaft

16

O-ring 19, 10x1, 60 Nbr 70

O-ring 19, 10x1, 60 Nbr 70

17

Shim Alu 5, 2x10x2

Shim Alu 5, 2x10x2

18

Ah Screw Din 912 M 5x8

Ah Screw Din 912 M 5x8

19

Decompression Shaft Cpl.

Decompression Shaft Cpl.

20

O-ring 5, 10x1, 60 Nbr 70

O-ring 5, 10x1, 60 Nbr 70

22

Decompression Lever Spring

Decompression Lever Spring

23

Circlip Din0471- 8x0, 8

Circlip Din0471- 8x0, 8

30

Rocker Arm Intake Cpl.

Rocker Arm Intake Cpl.

31

Rocker Arm Exhaust Cpl.

Rocker Arm Exhaust Cpl.
