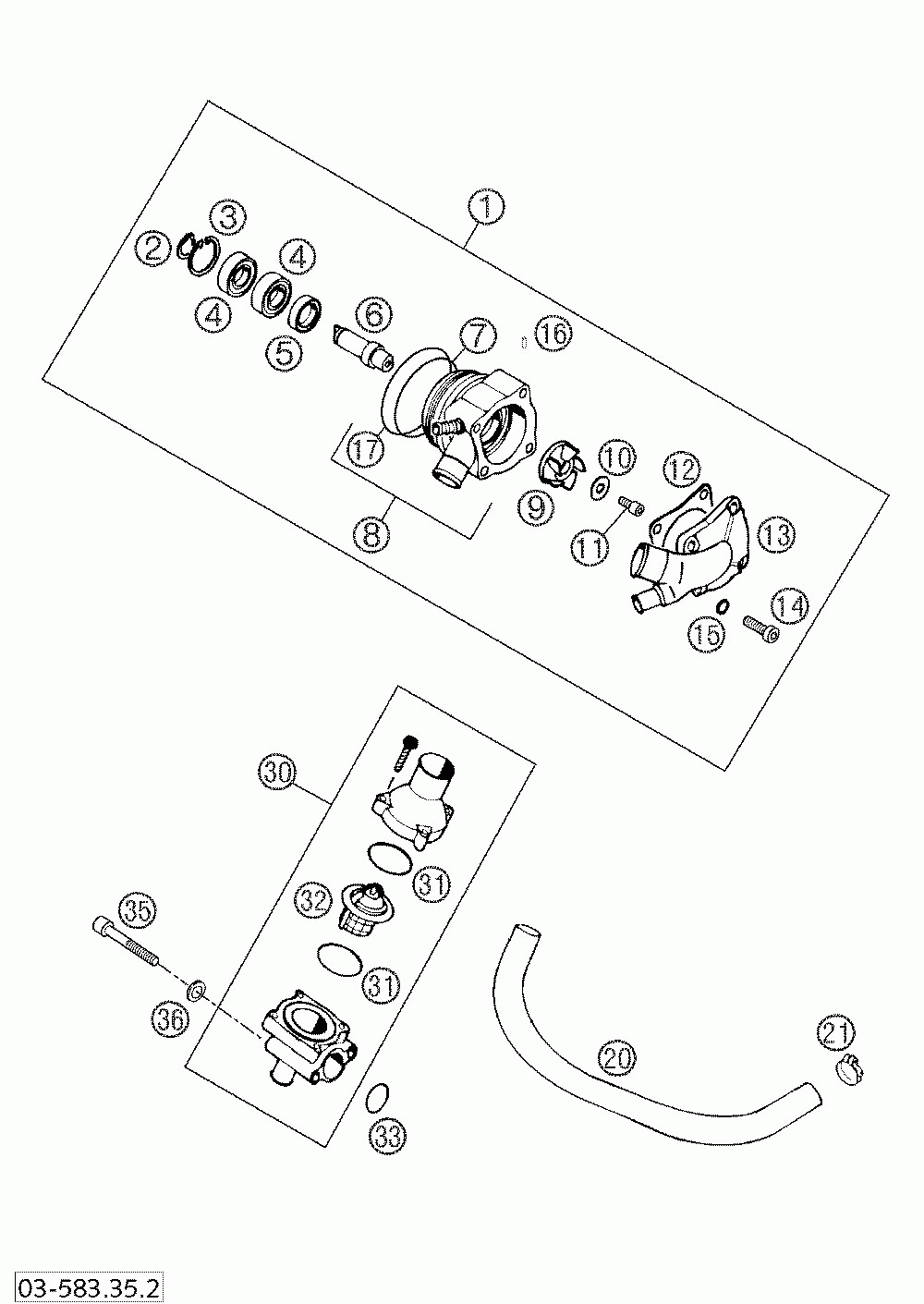

Water pump 640

KTM 640 LC4 ADVENTURE
KTM
#oem кодцена
1
58335050044
Water Pump Mechanic Cpl.'94
2
0471120010
Circlip Din0471-12x1
3
0472280120
Circlip Din0472-28x1, 2
4
0625060016
Groov.ball Bear. 6001.2rsr C3
5
0760152472
Shaft Seal Ring 15x24x7 A-duo
6
54435010000
Вал Водяного Насоса
7
0770047015
O-ring 47, 00x1, 50 Nbr 70
8
58035002644
Water Pump Case Cpl. 4t '00
9
56535005300
Water Pump Wheel
10
0021050003
Washer Din9021-a 5, 3
11
0912050123
Ah Screw Din0912-m 5x12
12
56535003300
Water Pump Cover Gasket
13
58335001244
Water Pump Cover Lc4 '99
14
0984060203
Ah Screw Din6912-m 6x20 8.8
15
0603061001
Cu-seal Ring Din7603-6x10x1
17
0770049025
O-ring 49, 00x2, 50 Nbr
20
58335025350
Radiator Hose 12x3 04
21
58335099000
Hose Clamp Gemi 10-16
30
58335013044
Thermostat Cpl. 70 Dg Lc4'94
31
0770320020
O-ring 32, 00x2, 00
32
58335017000
Thermostat 70 Degrees '94
33
0770021020
Уплотнительное кольцо 21, 00х2
35
0912060453
Ah Screw Din0912-m 6x45
36
0125060003
Washer Din0125-a 6, 4
