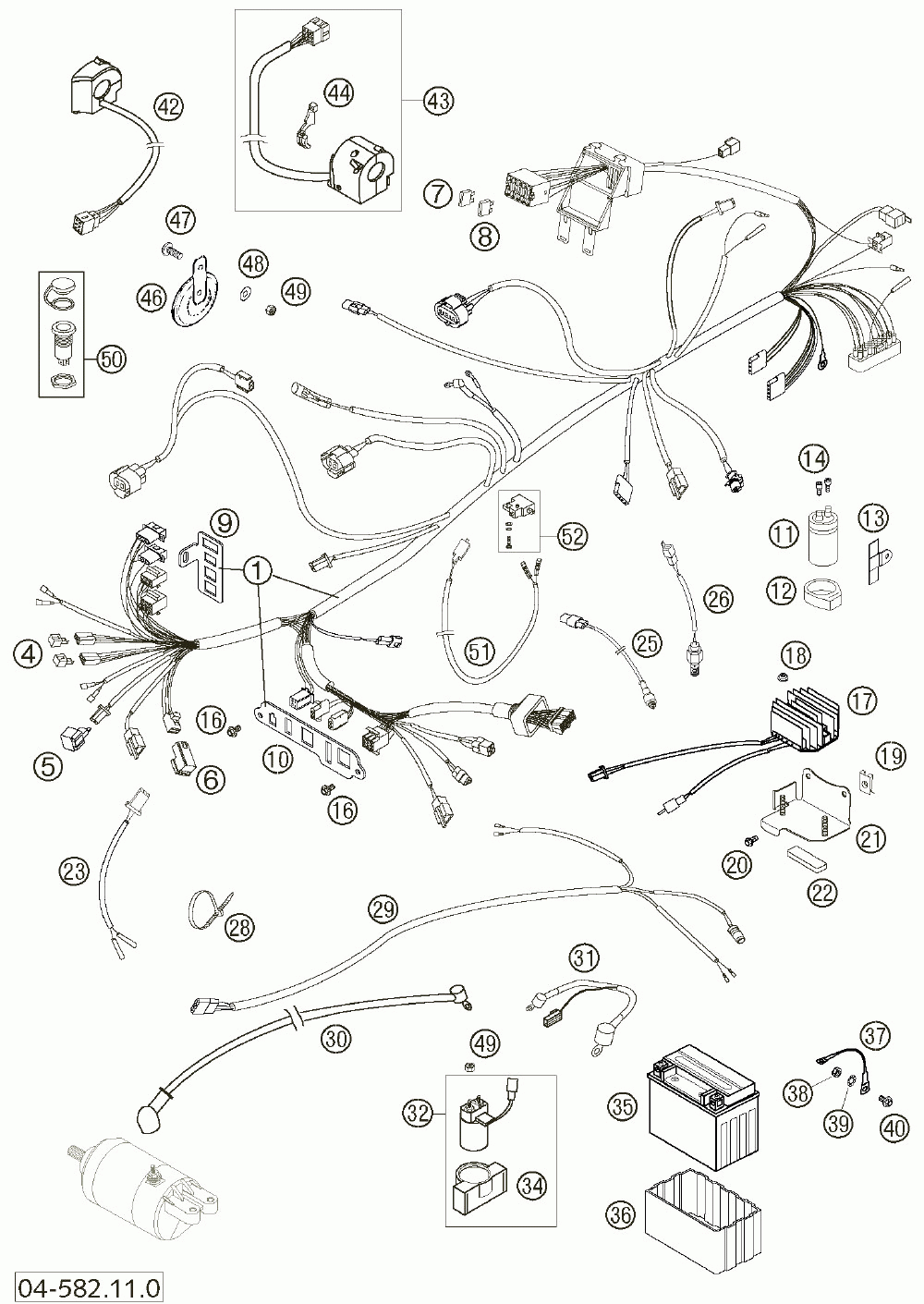

Wiring harness 640

KTM 640 LC4 ADVENTURE

Wiring harness 640

#

oem код

название

цена

1

Main Wiring Harness Adv. 03

Main Wiring Harness Adv. 03

4

Diode S3h-15 97

Diode S3h-15 97

5

Flasher Unit 97

Flasher Unit 97

6

Starter Relay '96

Starter Relay '96

9

Bracket For Plugs Short Adv.03

Bracket For Plugs Short Adv.03

10

Bracket For Plugs Long Adv. 02

Bracket For Plugs Long Adv. 02

11

Condensator 25v, 10.000 Mf

Condensator 25v, 10.000 Mf

12

Capacitor Bracket

Capacitor Bracket

13

Bracket For Capacitor

Bracket For Capacitor

14

Ah Screw Din 912 M 5x8

Ah Screw Din 912 M 5x8

16

Hh Collar Screw M6x10 Tx30

Hh Collar Screw M6x10 Tx30

17

Volt.regulator-rectifier 12v

Volt.regulator-rectifier 12v

18

Self Locking Nut M6 10.9

Self Locking Nut M6 10.9

19

Range Change Metal Nut M6

Range Change Metal Nut M6

20

Hh Collar Screw M 6x10 Ws=8

Hh Collar Screw M 6x10 Ws=8

21

Battery Bracket 03

Battery Bracket 03

22

Metamoll For Rearlight 99

Metamoll For Rearlight 99

23

Flasher Cable Front 03

Flasher Cable Front 03

25

Clutch Switch 03

Clutch Switch 03

26

Brake Light Switch Rear '98

Brake Light Switch Rear '98

29

Wiring Harness Rear 03

Wiring Harness Rear 03

30

Startercable 700 Mm '97

Startercable 700 Mm '97

31

Battery Cable L= 200 Mm 03

Battery Cable L= 200 Mm 03

32

Starter Relay With Hold.rubber

Starter Relay With Hold.rubber

34

Hold. Rubber For Startrelay

Hold. Rubber For Startrelay

35

Battery 12v 8, 6ah 03

Battery 12v 8, 6ah 03

36

Battery Cover 96

Battery Cover 96

37

Ground Cable D=6mm L=140mm '97

Ground Cable D=6mm L=140mm '97

39

Contact Washer M6 Vsv-k6

Contact Washer M6 Vsv-k6

40

Hh Collar Screw M 6x15 Ws=8

Hh Collar Screw M 6x15 Ws=8

42

Start-stop Switch/light Sw. 03

Start-stop Switch/light Sw. 03

43

Light Switch Ad Adventure 02

Light Switch Ad Adventure 02

44

Choke Lever Lc4 2002

Choke Lever Lc4 2002

46

Dc Horn 12v K80/l Leb

Dc Horn 12v K80/l Leb

48

Washer Din0125-a 6, 4

Washer Din0125-a 6, 4

49

Self Lock. Nut Din0985-m 6

Self Lock. Nut Din0985-m 6

50

Connector Black 03

Connector Black 03

51

Cable Brake Light Switch 04

Cable Brake Light Switch 04

52

Brake Light Sw. Front Cpl. 03

Brake Light Sw. Front Cpl. 03
