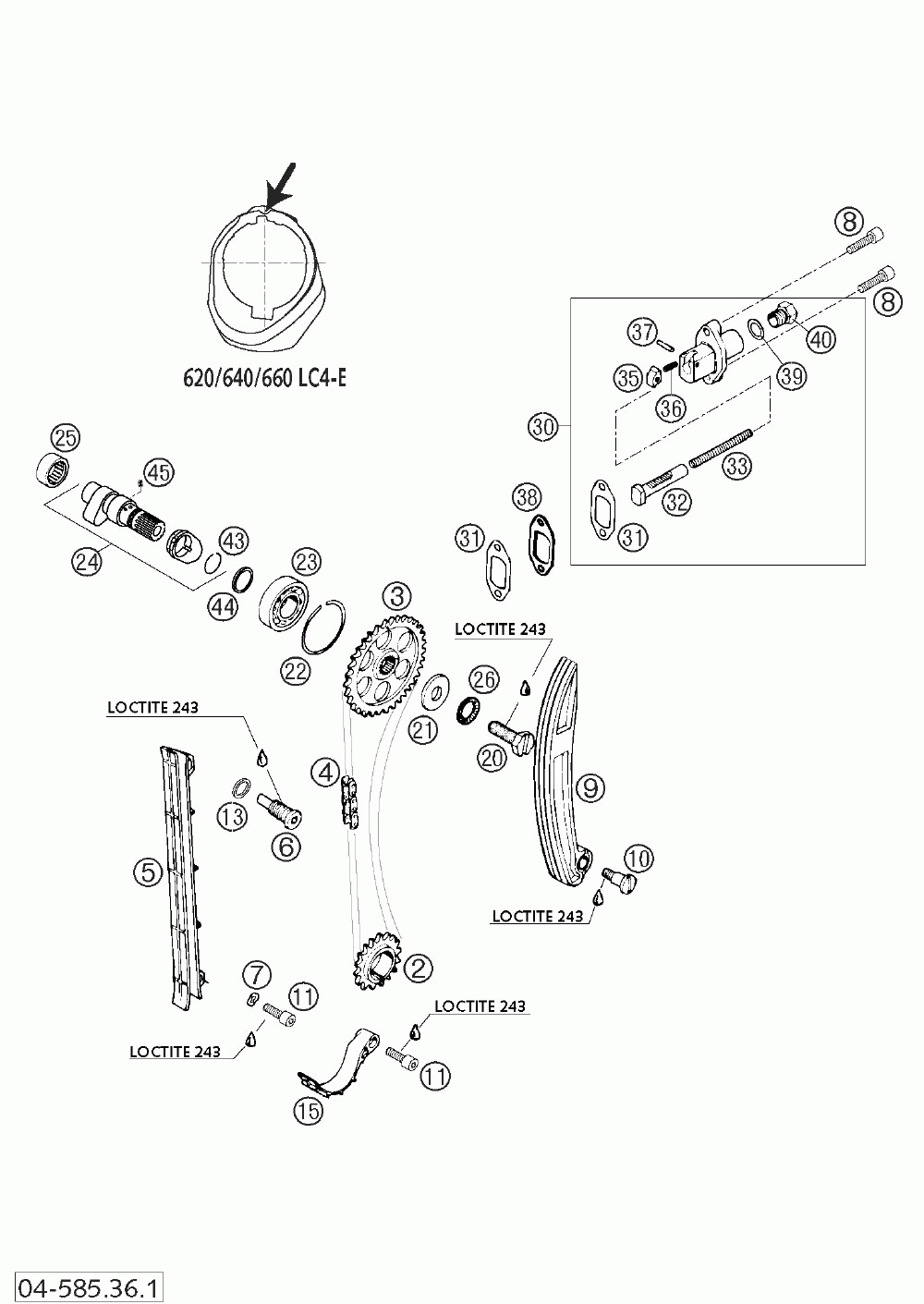

Timing valve 660

KTM 660 RALLYE FACTORY REPLICA
KTM
#oem кодцена
2
58036014000
Timing Gear 17-t
3
58336011001
Camshaft Gear 34-t "01" '94
4
58036013000
Timing Chain C107c / 100 Links
5
58036001000
Timing Chain Guide
6
58036009000
Chain Guide Screw
7
0137060003
Spring Washer Din0137-b 6
8
0912060253
Ah Screw Din0912-m 6x25
9
58536002044
Chain Tensioner Rallye
10
0923080120
Flat Head Scr. M 8x12
11
0912060208
Ah Screw Din0912-m 6x20 Ss
13
58038022100
Cu-seal Ring 12 X 16 X 2
15
58336018000
Securing Guide
20
58336112000
Driving Screw M10x25
21
58036012000
Steel Washer 10 X 28 X 3
22
58036096000
Circlip Sb 42
23
0625060040
Grooved Ball Bearing Tmb004
24
58536010044
Camshaft Rallye Cpl. 2001
25
58036097000
Needle Bearing Bk 2012
26
36003014200
Locking Washer 10mm
30
58036003144
Autom.tensioner Cpl. '88
31
58036005100
Tensioner Gasket 1, 5 Mm
32
58036004100
Pressure Bolt
33
58036006100
Pressure Spring 0, 9mm
35
58036007100
Ratcheting Pawl
36
58036007050
Pres.spring F.ratcheting Pawl
37
0402031780
Иглы Рол
39
58038022000
Кольцо 12x18x1, 5
40
58036008100
Plug M12x1, 5
43
0417200120
Circlip Ws20
44
58336015000
Stepped Ring
45
58336016052
Spring For Auto-decompr. '95
