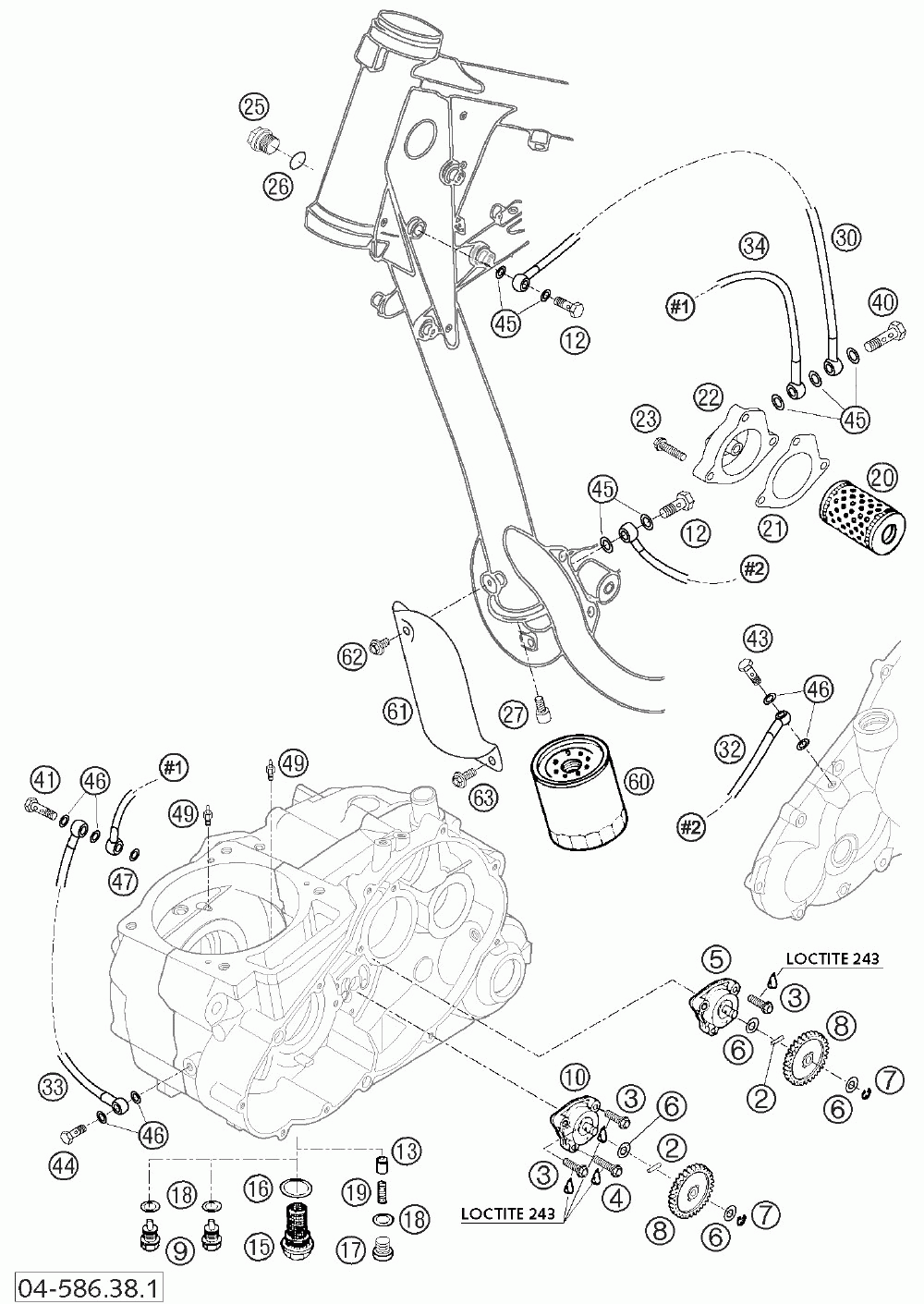

Lubricating system 660

KTM 660 SMC

Lubricating system 660

#

oem код

название

цена

2

Needlerol.din5402 Nra 2, 5x19, 8

Needlerol.din5402 Nra 2, 5x19, 8

3

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

4

Hh Collar Screw M 6x25 Ws=8

Hh Collar Screw M 6x25 Ws=8

5

Oil Pump Mikuni G-73-10

Oil Pump Mikuni G-73-10

6

Stop Disk 8, 1 X 15 X 0, 5

Stop Disk 8, 1 X 15 X 0, 5

7

Tab Washer Din6799-rs 6, 0

Tab Washer Din6799-rs 6, 0

8

Oil Pump Gear 26-t

Oil Pump Gear 26-t

9

Пробка сливная с магнитом M12x1,5

Пробка сливная с магнитом M12x1,5

12

Hollow Screw M10 X 1

Hollow Screw M10 X 1

13

Valve Piston D=10mm

Valve Piston D=10mm

15

Oil Drain Plug M22x1, 5

Oil Drain Plug M22x1, 5

16

Cu-seal Ring Din7603-22x27x2

Cu-seal Ring Din7603-22x27x2

17

Plug Din0908-m12x1, 5

Plug Din0908-m12x1, 5

18

Кольцо 12x18x1, 5

Кольцо 12x18x1, 5

19

Oil Pres.spring 5 Bar Red 2001

Oil Pres.spring 5 Bar Red 2001

20

Oil Filter Long

Oil Filter Long

21

Oil Filter Cover Gasket 2001

Oil Filter Cover Gasket 2001

22

Oil Filter Cover 2001

Oil Filter Cover 2001

25

Plug Din0910-m16x1, 5

Plug Din0910-m16x1, 5

26

Cu-seal Ring 16x22x2

Cu-seal Ring 16x22x2

27

Ah Screw Din7984-m 6x10

Ah Screw Din7984-m 6x10

30

Oil Line Filter-frame Tube

Oil Line Filter-frame Tube

32

Oil Line Clutch Cover-frame

Oil Line Clutch Cover-frame

34

Oil Line Filter/inject.va. R/s

Oil Line Filter/inject.va. R/s

40

Dual Banjo Bolt M10x1

Dual Banjo Bolt M10x1

41

Dual Banjo Bolt M8x1

Dual Banjo Bolt M8x1

43

Jet Screw M 8 X 1 "150"

Jet Screw M 8 X 1 "150"

44

Banjo Bolt M8x1

Banjo Bolt M8x1

45

Уплотнитель шланга

Уплотнитель шланга

46

Copper Gask.din7603- 8, 2x13x1

Copper Gask.din7603- 8, 2x13x1

47

Copper Gasket 8, 2x12x2 Mm 2001

Copper Gasket 8, 2x12x2 Mm 2001

49

Oil Jet 70 M6x0, 75 Ws8 03

Oil Jet 70 M6x0, 75 Ws8 03

60

Screw Type Filter

Screw Type Filter

61

Cover Oil Filter '94

Cover Oil Filter '94

62

Hh Collar Screw M6x10 Tx30

Hh Collar Screw M6x10 Tx30

63

Hh Collar Screw M 6x15 Ws=8

Hh Collar Screw M 6x15 Ws=8
