Frame, sub frame 660 Оригинальные запчасти для мотоциклов KTM 660 SUPERMOTO FACTORY REPLICA (2004)

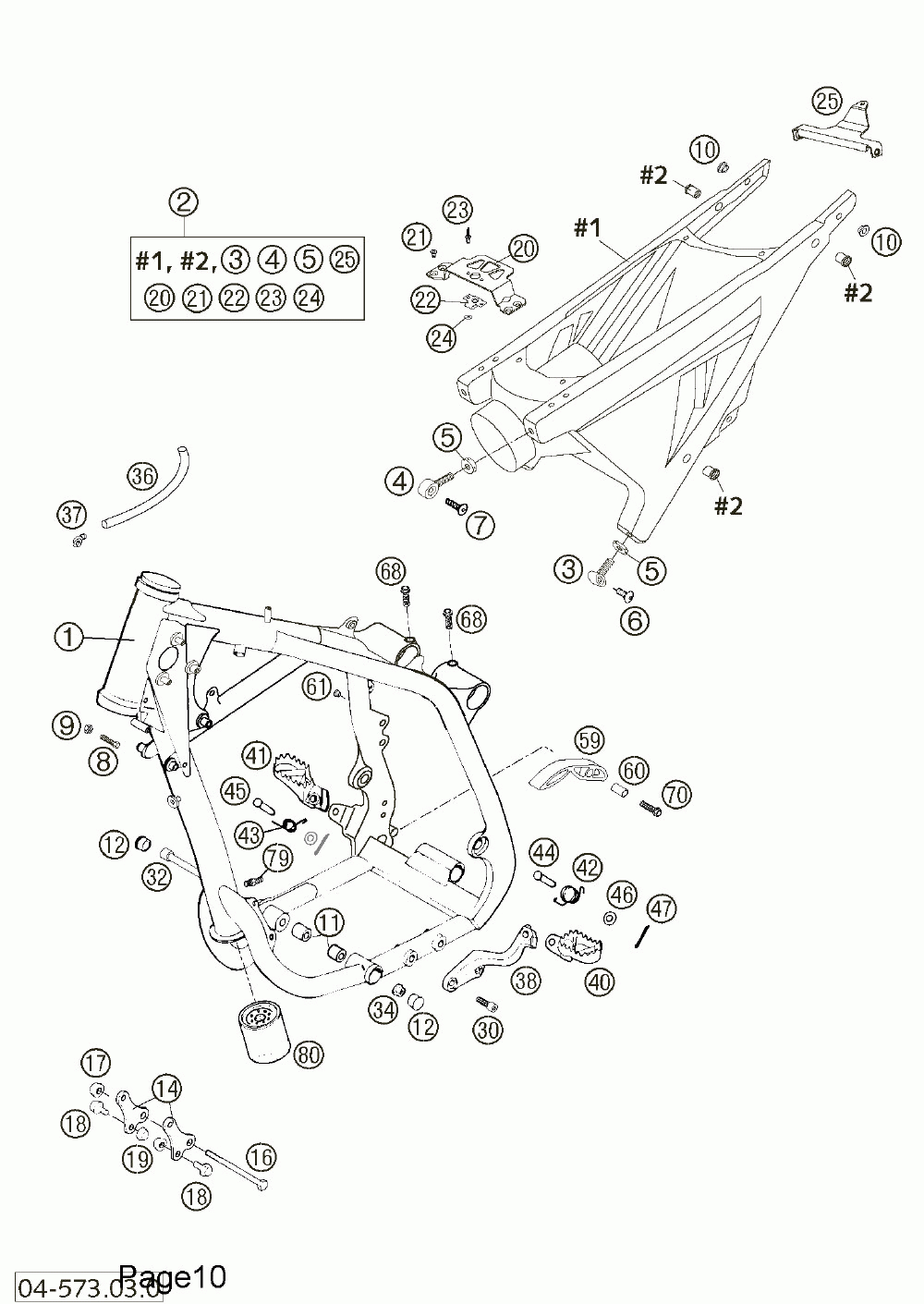

Frame, sub frame 660

KTM 660 SUPERMOTO FACTORY REPLICA

oem код

название

цена

57303003200

Eye Bolt For Subframe Bottom

54610052000

Винт M8x20 Ws=6

54510052100

Sprocket Screw-ah M8x26 Ws=6

59001037000

Special Screw M8x26 Ws=10

0934080003

Hexagon Nut Din0934-m 8

58003012000

Spacer Roller 10, 3x20x22

58303055000

Engine Support Agw '94

58403013000

Engine Brac.screw M10x110 Ws13

49009082000

Self Locking Nut M10 Fk8

49109481052

Hh Collar Screw M 8x16 Ws=13

54310086200

Self Locking Nut M8 10.9

0991050102

Flat H.scew Din7991-m5x10 10.9

45007040050

Quick Release Latchplate

0134030003

Washer Din0134- 3, 2

0912100250

Ah Screw Din6912-m10x25, 10.9, L

58403014000

Engine Brac.screw M10x160 Ws13

54630044000

Collar Nut M10 Ws=13

31007107001

Pvc-hose 6x9 Mm Per Meter

50303089000

Angle Piece '97

5830304000019

Footrest L/s Anthrazit '98

5830304000030

Footrest L/s Black

58303041000

Footrest Spring L/s '93

54603041000

Footrest Spring L/s & R/s

58303044000

Bolt For Footrest

54603044000

Bolt For Footrest 9, 8 X 50

0125100003

Washer Din0125-a10, 5

0094032253

Pin Din0094-3, 2x25 Steel

51103053000

Chain Sliding Piece Below '97

51103053051

Bushing 8, 2x10x20

0025080256

Винт M8x25 Tx40

0025080306

Hh Collar Screw M8x30 Tx40

57303096000

Overflow Reservoir Superm. 02
