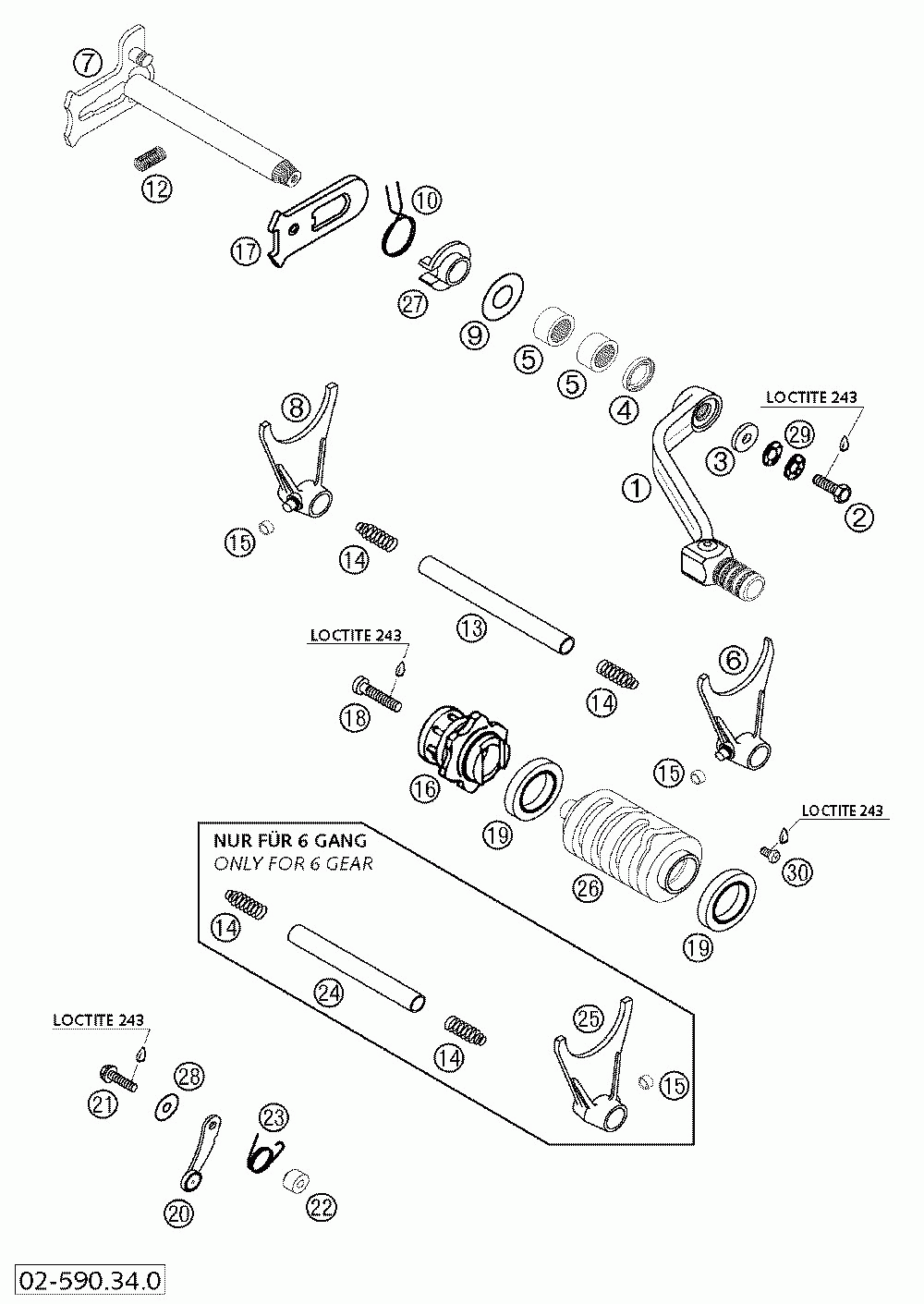

Shifting mechanism 250/450/525

KTM 250 EXC RACING, 450/525 SX, MXC, EXC RACING
KTM
#oem кодцена
1
59034031000
Shift Lever Cpl.racing 2000
2
0933060203
Hh Screw Din0933-m 6x20
3
50232050001
Steel Washer 6, 4x17x3
4
0760142460
Shaft Seal Ring 14x24x6 B
5
54632095000
Needle Bear.hk 1412 14x20x12
6
59034002000
Shift Fork 2./4.gear 2000
7
59034005044
Shift Shaft Cpl. Racing '03
8
59834003000
Shift Fork 1./3.gear 2002
9
54634050000
Stop Disk 14x30x1
10
54634014100
Return Spring 2, 2mm '95
12
56534013100
Tensioning Spring 0, 8mm
13
59034020000
Shift Rail 11, 8x105mm
14
58038023200
Pressure Spring 0, 9mm
15
50334018100
Shifting Roller 6x8x5, 2
16
59034015144
Ship Drum Locating Cpl.
17
54634008044
Sliding Plate Cpl.
18
0984060302
Ah Screw Din6912 M 6x30
19
0625618050
Ball Bearing 61805 C3
20
77034024044
Locking Lever Cpl. 08
21
0015050203
Hh Collar Screw M 5x20 Ws=8
22
54634052300
Sleeve For Locking Lever
23
59034023000
Spring 2, 3mm
24
59034019000
Shift Rail 11, 8x89mm
25
59834001000
Shift Fork 5./6.gear 2002
26
59034012000
Shiftroller 6-gear
26
59434012000
Shiftroller 4-gear
27
54634020000
Spring Guide
28
71008012000
Washer 5, 3x17x1, 5mm
29
50233041000
Pair Of Washers M 6 Nordlock
30
0985050083
Flat Head Screw Din7985-m 5x 8
