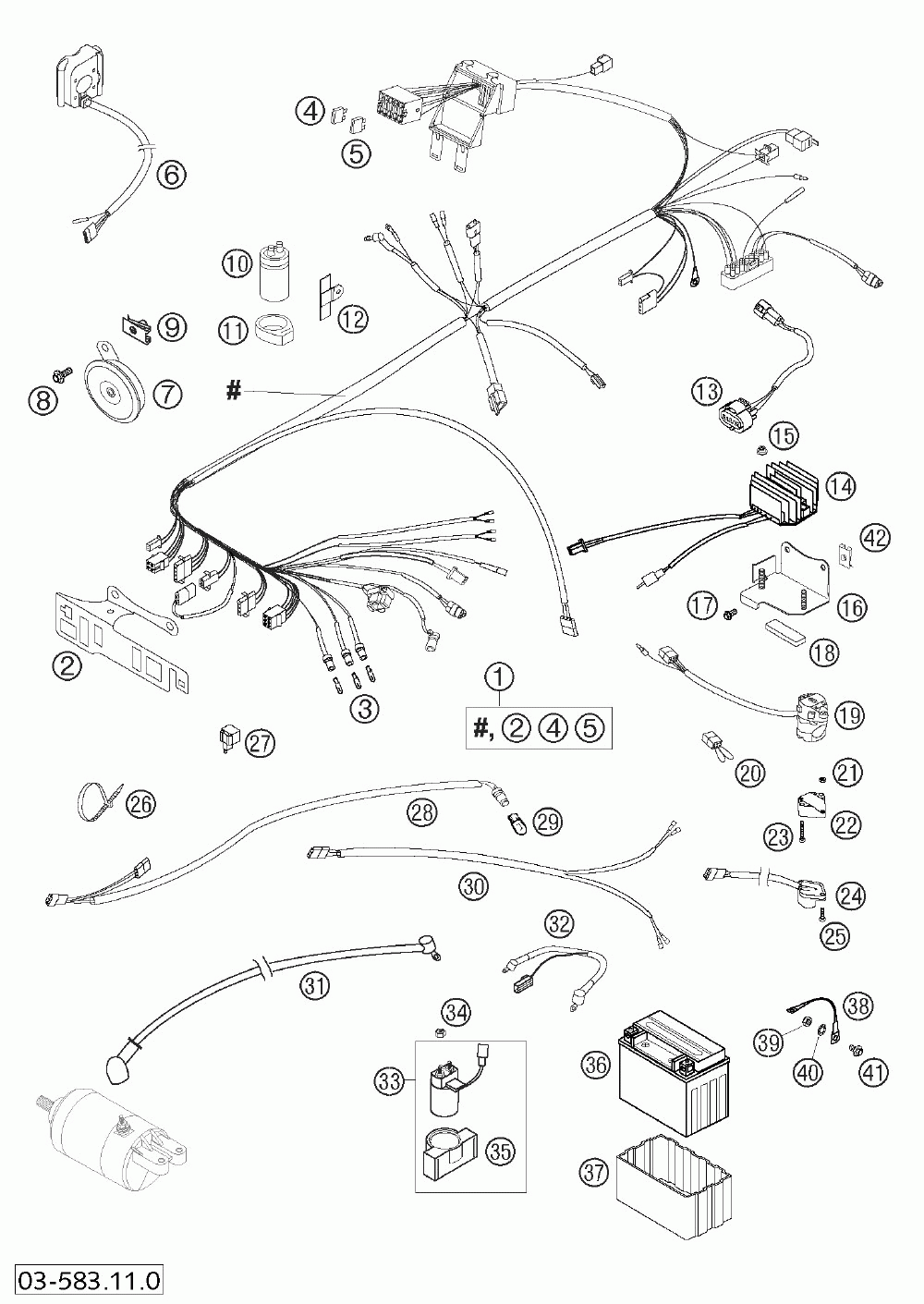

Wiring harness 625

KTM 625 SXC

Wiring harness 625

#

oem код

название

цена

1

Wiring Harness Sxc 03

Wiring Harness Sxc 03

2

Support Bracket Black 2001

Support Bracket Black 2001

3

Bulb 12v 1, 2w (w2x4, 6d)

Bulb 12v 1, 2w (w2x4, 6d)

6

Start-stop Tip Switch 2001

Start-stop Tip Switch 2001

6

Start-stop Switch 2000

Start-stop Switch 2000

7

Dc Horn L.e.b. 03

Dc Horn L.e.b. 03

8

Hh Collar Screw M 6x15 Ws=8

Hh Collar Screw M 6x15 Ws=8

9

Range Change Metal Nut M6

Range Change Metal Nut M6

10

Condensator 25v, 10.000 Mf

Condensator 25v, 10.000 Mf

11

Capacitor Bracket

Capacitor Bracket

12

Bracket For Capacitor

Bracket For Capacitor

13

Adapt. Cable Tps Mukuni 03

Adapt. Cable Tps Mukuni 03

14

Volt.regulator-rectifier 12v

Volt.regulator-rectifier 12v

15

Self Locking Nut M6 10.9

Self Locking Nut M6 10.9

16

Battery Bracket 03

Battery Bracket 03

17

Hh Collar Screw M 6x10 Ws=8

Hh Collar Screw M 6x10 Ws=8

18

Metamoll For Rearlight 99

Metamoll For Rearlight 99

19

H.light Switch Cev Egs Aus.'98

H.light Switch Cev Egs Aus.'98

20

Dummy Plug F. Sxc Usa 03

Dummy Plug F. Sxc Usa 03

21

Hexagon Nut Din0934-m 4

Hexagon Nut Din0934-m 4

22

Adapter For Flasher Switch '98

Adapter For Flasher Switch '98

23

Cyl.head Screw Din0084-m 4x22a

Cyl.head Screw Din0084-m 4x22a

24

Flasher Switch Cev '98

Flasher Switch Cev '98

25

Flat Head Screw Din7985-m 4x16

Flat Head Screw Din7985-m 4x16

27

Flasher Unit 97

Flasher Unit 97

28

Wiring H. Number P. Light 2001

Wiring H. Number P. Light 2001

29

Светодиод 12v 5w (w2,1x9,5d)

Светодиод 12v 5w (w2,1x9,5d)

30

Flash.wiringharness Rear 2001

Flash.wiringharness Rear 2001

31

Startercable 700 Mm '97

Startercable 700 Mm '97

32

Battery Cable L= 200 Mm 03

Battery Cable L= 200 Mm 03

33

Starter Relay With Hold.rubber

Starter Relay With Hold.rubber

34

Self Lock. Nut Din0985-m 6

Self Lock. Nut Din0985-m 6

35

Hold. Rubber For Startrelay

Hold. Rubber For Startrelay

36

Battery 12v 8, 6ah 03

Battery 12v 8, 6ah 03

37

Battery Cover 96

Battery Cover 96

38

Ground Cable D=6mm L=140mm '97

Ground Cable D=6mm L=140mm '97

40

Contact Washer M6 Vsv-k6

Contact Washer M6 Vsv-k6

3

Bulb 12v 2, 3w (w2x4, 6d)

Bulb 12v 2, 3w (w2x4, 6d)
