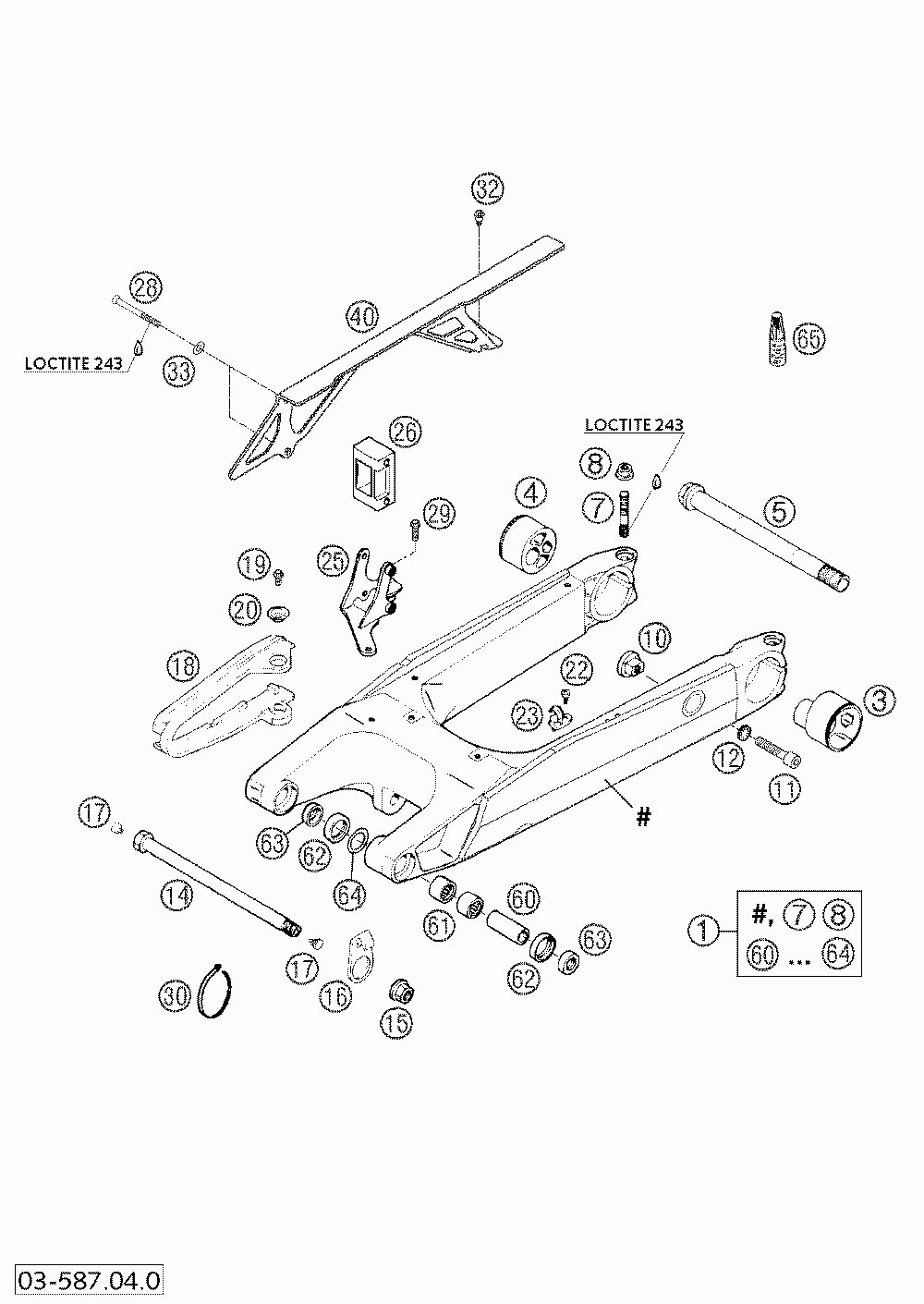

Swingarm, chain guard 640

KTM 640 DUKE II
KTM
#oem кодцена
1
58704030244
Swingarm Cpl. Duke 2002
3
58303030011
Eccentrics L/s '94
4
58303130011
Eccentrics R/s '94
5
58310085000
Wheel Spindle Rear L=232mm '94
7
0835100456
Stud Din0835-m10x45
8
54630044000
Collar Nut M10 Ws=13
10
58313050000
Brake Carrier Support
11
0912100453
Ah Screw Din0912-m10x45
12
50233041100
Pair Of Washers M10 Nordlock
14
54603014100
Swingarm Bolt Kpl. L=253
15
54603015000
Self Locking Nut M14x1, 5 Ws=19
16
50230211000
Brake Hose Guide '89
17
54403135000
Plastic Cap Sfl10
18
58307073000
Chain Sliding Guard Duke'94
19
0015060103
Hh Collar Screw M 6x10 Ws=8
20
72210079000
Шайба
22
0010050103
Special Screw M 5, 0x10
23
54611076000
Retaining Clamp For Brake Hose
25
58307068200
Bracket For Chain Guide 02
26
51007066600
Chain Guide Sm/duke 2002
28
0991060553
Flat Head Screw Din7991 M6x55
29
0015060123
Hh Collar Screw M 6x12 Ws=8
32
59001092050
винт M6x12, 5 Вт = 8
33
58404060051
Washer F. Chainguard Sm 02
40
58404060000
Chainguard Sm, Duke 2002
60
50203081700
Bushing Sleeve 15x20x38, 75
61
59004031000
Needle Bush Hk2012v
62
0760253270
Shaft Seal Ring 25x32x7
63
54603090000
Bucket F.shaftsealring 15x25x9
64
59004033100
Washer 20x32x0, 8
