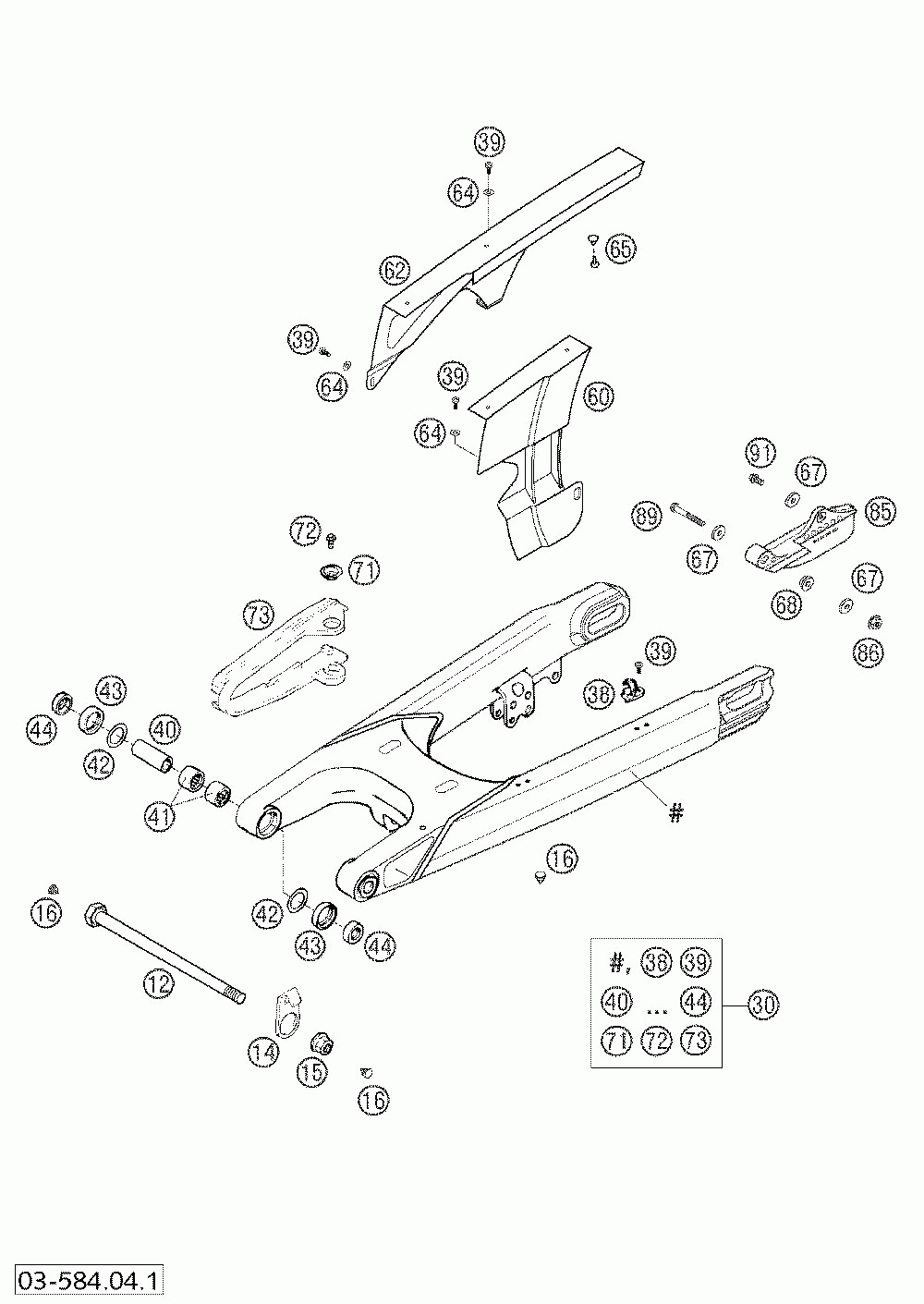

Swingarm lc4 enduro 640

KTM 640 LC4 ENDURO, 640 LC4 SUPERMOTO
KTM
#oem кодцена
12
54603014100
Swingarm Bolt Kpl. L=253
14
50230211000
Brake Hose Guide '89
15
54603015000
Self Locking Nut M14x1, 5 Ws=19
30
58404030344
Swingarm Cpl. Lc4 03
38
54611076100
Retain.clamp For Brake Hose'96
39
0010050103
Special Screw M 5, 0x10
40
50203081700
Bushing Sleeve 15x20x38, 75
41
59004031000
Needle Bush Hk2012v
42
59004033100
Washer 20x32x0, 8
43
0760253270
Shaft Seal Ring 25x32x7
44
54603090000
Bucket F.shaftsealring 15x25x9
60
58307060000
Chainguard Small '96
62
58307060250
Chainguard Large 03
64
0021050003
Washer Din9021-a 5, 3
65
20012062055
Hollow Rivet Two Parts
67
50232050003
Steel Washer 6, 2x18x2 Dacromet
68
58404060150
Collared Bush 6, 2x10x20x6 03
71
72210079000
Шайба
72
0015060103
Hh Collar Screw M 6x10 Ws=8
73
58307073000
Chain Sliding Guard Duke'94
85
58404070000
Chain Guide Cpl. Rear Lc4 '98
86
56509064100
Self Locking Nut M6 10.9
89
0015060553
Hh Collar Screw M 6x55 Ws=8
91
0015060163
Hh Collar Screw M 6x16 Ws=8
