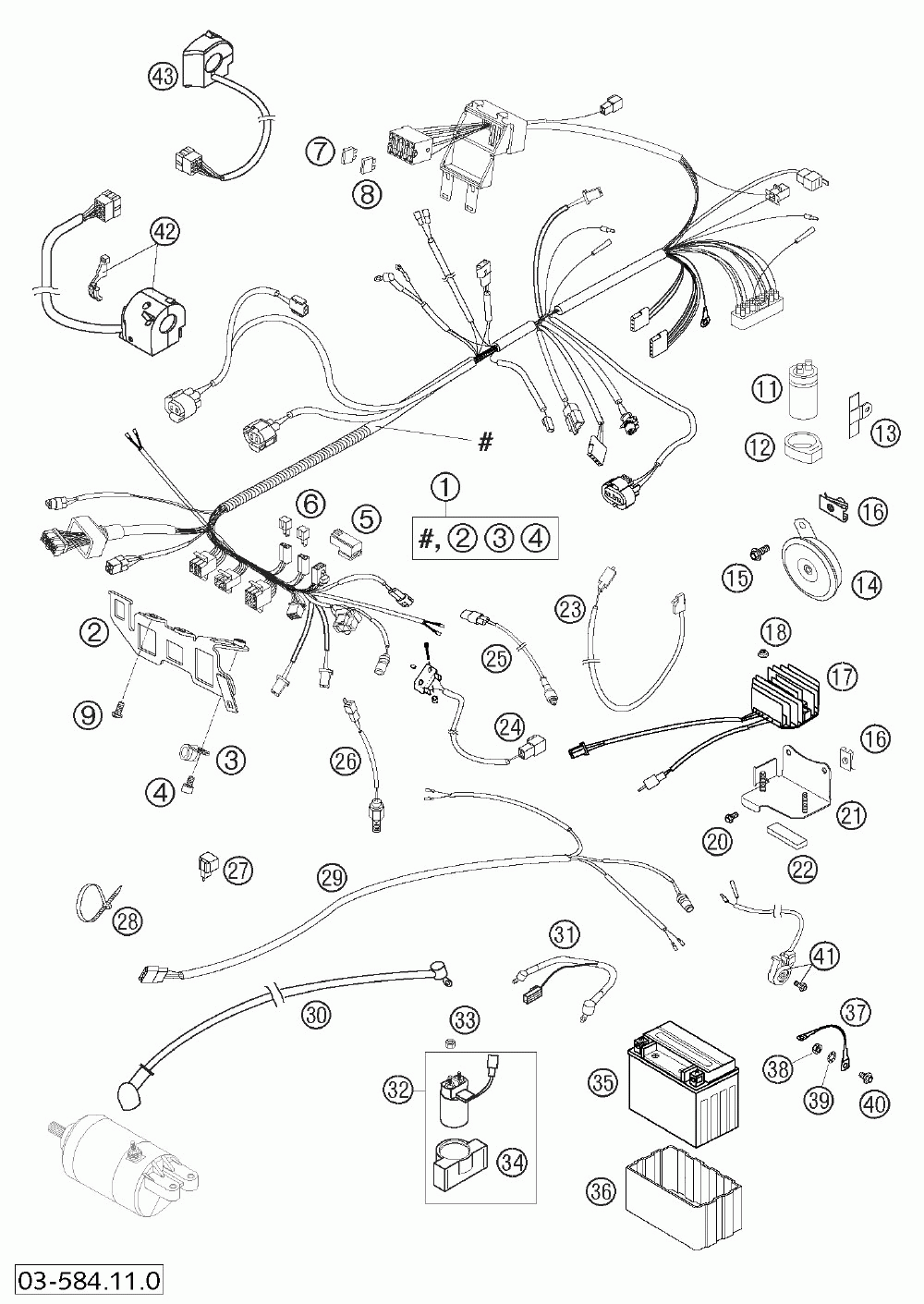

Wiring harness 640

KTM 640 LC4 ENDURO, 640 LC4 SUPERMOTO
KTM
#oem кодцена
1
58411175400
Wiring Harness Lc4 03
3
49007439000
Clamp Rsgu 15/12
4
0912050083
Ah Screw Din 912 M 5x8
5
58411057000
Starter Relay '96
6
58411096100
Diode S3h-15 97
9
0016050121
Screw For Plastic 50x12
11
49111435100
Condensator 25v, 10.000 Mf
12
54511048000
Capacitor Bracket
13
54611448000
Bracket For Capacitor
14
50311060100
Dc Horn L.e.b. 03
15
0014060153
Hh Collar Screw M 6x15 Ws=8
16
54603048100
Range Change Metal Nut M6
17
58411034100
Volt.regulator-rectifier 12v
18
56509064100
Self Locking Nut M6 10.9
20
0015060103
Hh Collar Screw M 6x10 Ws=8
21
58411055200
Battery Bracket 03
22
58414040051
Metamoll For Rearlight 99
23
50311050100
Brake Light Switch Front 2002
24
58411050000
Brake Light Switch Front Sm 03
25
58411049100
Clutch Switch 03
26
50311051100
Brake Light Switch Rear '98
27
44611207200
Flasher Unit 97
29
58411176300
Wiring Harness Rear 03
30
58411059100
Startercable 700 Mm '97
31
58411059350
Battery Cable L= 200 Mm 03
32
58411058000
Starter Relay With Hold.rubber
33
0985060003
Self Lock. Nut Din0985-m 6
34
58411058050
Hold. Rubber For Startrelay
35
58411053100
Battery 12v 8, 6ah 03
36
58411053050
Battery Cover 96
37
58411097100
Ground Cable D=6mm L=140mm '97
39
58411098100
Contact Washer M6 Vsv-k6
41
58411045000
Side Stand Switch Cpl. '97
42
58411070100
Head Light Switch Ad Lc4 02
43
58411074200
Start-stop Switch Ad 03
