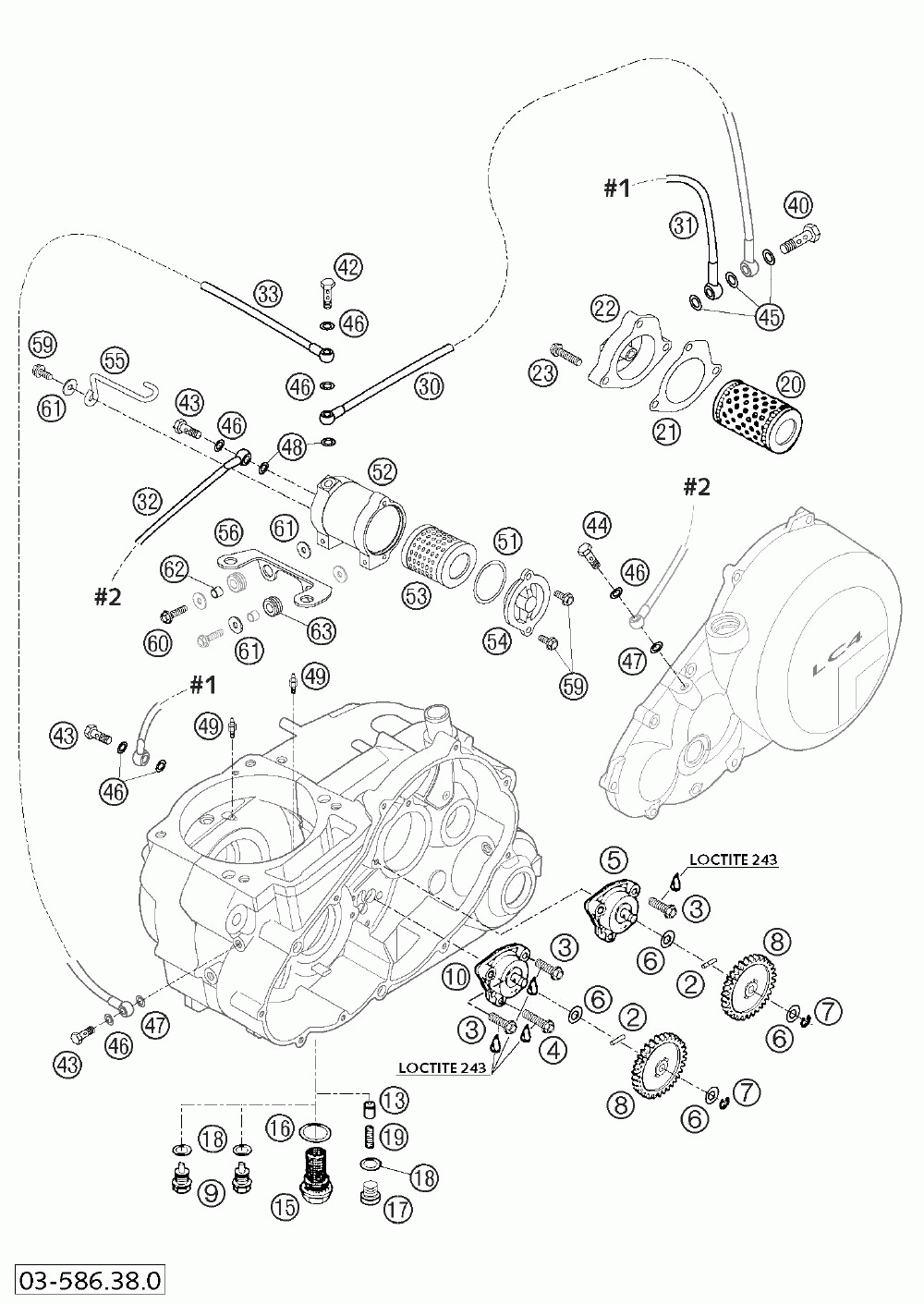

Lubricating system 660

KTM 660 SMC

Lubricating system 660

#

oem код

название

цена

2

Needlerol.din5402 Nra 2, 5x19, 8

Needlerol.din5402 Nra 2, 5x19, 8

3

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

4

Hh Collar Screw M 6x25 Ws=8

Hh Collar Screw M 6x25 Ws=8

5

Oil Pump Mikuni G-73-10

Oil Pump Mikuni G-73-10

6

Stop Disk 8, 1 X 15 X 0, 5

Stop Disk 8, 1 X 15 X 0, 5

7

Tab Washer Din6799-rs 6, 0

Tab Washer Din6799-rs 6, 0

8

Oil Pump Gear 26-t

Oil Pump Gear 26-t

9

Пробка сливная с магнитом M12x1,5

Пробка сливная с магнитом M12x1,5

13

Valve Piston D=10mm

Valve Piston D=10mm

15

Oil Drain Plug M22x1, 5

Oil Drain Plug M22x1, 5

16

Cu-seal Ring Din7603-22x27x2

Cu-seal Ring Din7603-22x27x2

17

Plug Din0908-m12x1, 5

Plug Din0908-m12x1, 5

18

Кольцо 12x18x1, 5

Кольцо 12x18x1, 5

19

Oil Pres.spring 5 Bar Red 2001

Oil Pres.spring 5 Bar Red 2001

20

Oil Filter Long

Oil Filter Long

21

Oil Filter Cover Gasket 2001

Oil Filter Cover Gasket 2001

22

Oil Filter Cover 2001

Oil Filter Cover 2001

31

Oil Line Filter/inject.va. R/s

Oil Line Filter/inject.va. R/s

32

Oil Line Junc.b-crank.300mm 01

Oil Line Junc.b-crank.300mm 01

40

Dual Banjo Bolt M10x1

Dual Banjo Bolt M10x1

42

Dual Banjo Bolt M8x1

Dual Banjo Bolt M8x1

43

Banjo Bolt M8x1

Banjo Bolt M8x1

44

Jet Screw M 8 X 1 "150"

Jet Screw M 8 X 1 "150"

45

Уплотнитель шланга

Уплотнитель шланга

46

Copper Gask.din7603- 8, 2x13x1

Copper Gask.din7603- 8, 2x13x1

47

Cu-seal Ring 8 X 12 X 1, 5

Cu-seal Ring 8 X 12 X 1, 5

48

Copper Gasket 8, 2x12x2 Mm 2001

Copper Gasket 8, 2x12x2 Mm 2001

49

Oil Jet 70 M6x0, 75 Ws8 03

Oil Jet 70 M6x0, 75 Ws8 03

51

O-ring 40, 00x2, 50 Nbr 70

O-ring 40, 00x2, 50 Nbr 70

52

Micro Filter Housing 02

Micro Filter Housing 02

53

Oil Filter Short With Gasket

Oil Filter Short With Gasket

54

Oil Filter Cover Racing

Oil Filter Cover Racing

55

Hanger For Brake Hose Rear 03

Hanger For Brake Hose Rear 03

59

Hh Collar Screw M 5x16 Ws=8

Hh Collar Screw M 5x16 Ws=8

60

Hh Collar Screw M 5x20 Ws=8

Hh Collar Screw M 5x20 Ws=8

61

Washer Din9021-a 5, 3

Washer Din9021-a 5, 3

62

Spacer Bushing 6, 5 X 8 X 7

Spacer Bushing 6, 5 X 8 X 7

63

Rubber Sleeve D=8mm Open

Rubber Sleeve D=8mm Open
