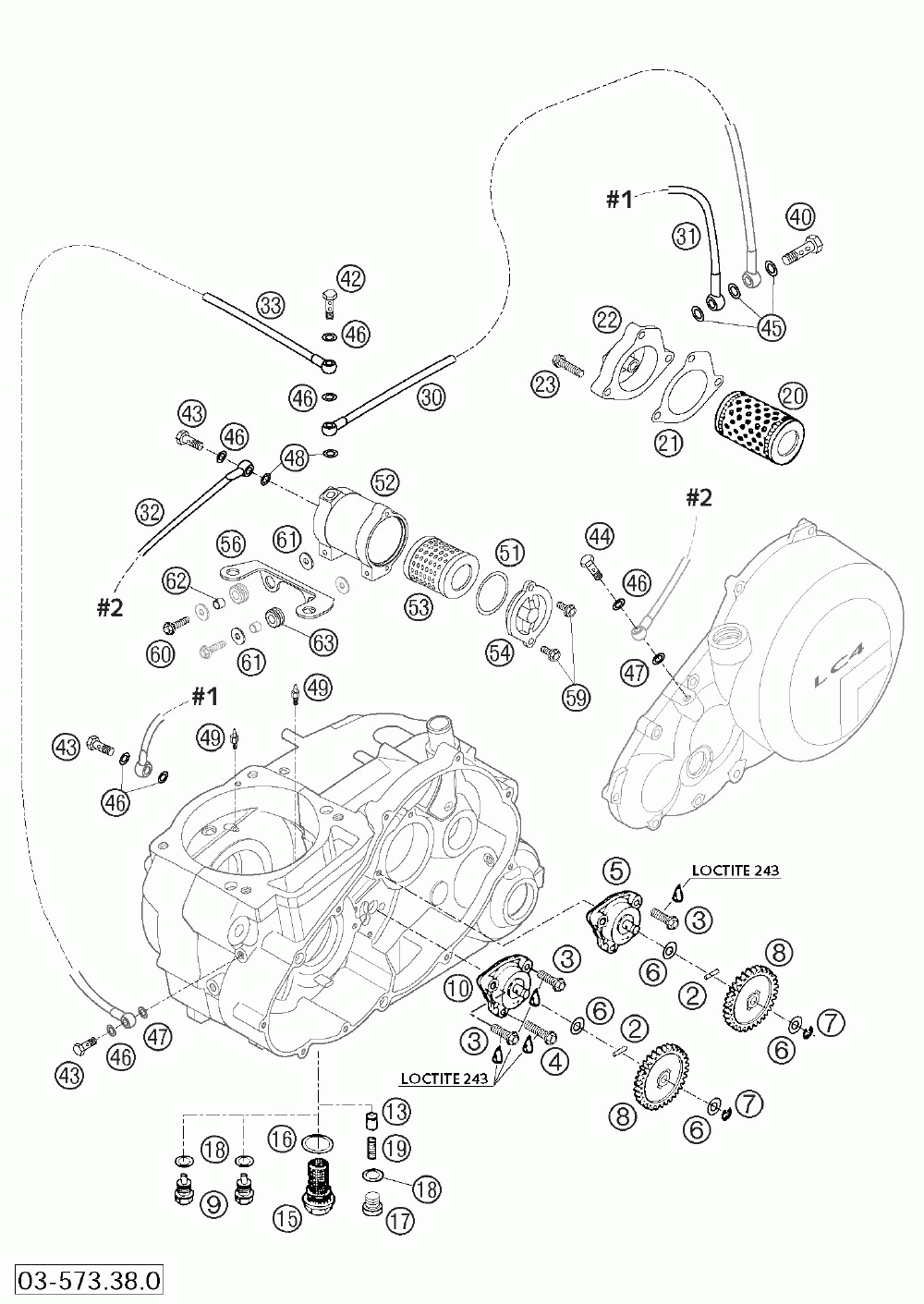

Lubricating system 660

KTM 660 SUPERMOTO FACTORY REPLICA
KTM
#oem кодцена
2
0402251980
Needlerol.din5402 Nra 2, 5x19, 8
3
0015060203
Hh Collar Screw M 6x20 Ws=8
4
0015060253
Hh Collar Screw M 6x25 Ws=8
5
58038007700
Oil Pump Mikuni G-73-10
6
58038007755
Stop Disk 8, 1 X 15 X 0, 5
7
0799060000
Tab Washer Din6799-rs 6, 0
8
58438001000
Oil Pump Gear 26-t
9
58030021000
Пробка сливная с магнитом M12x1,5
13
58038028000
Valve Piston D=10mm
15
58038019100
Oil Drain Plug M22x1, 5
16
58038017100
Cu-seal Ring Din7603-22x27x2
17
0908120153
Plug Din0908-m12x1, 5
18
58038022000
Кольцо 12x18x1, 5
19
58538023000
Oil Pres.spring 5 Bar Red 2001
20
58038005100
Oil Filter Long
21
58530041000
Oil Filter Cover Gasket 2001
22
58030008700
Oil Filter Cover 2001
31
58038334600
Oil Line Filter/inject.va. R/s
32
58538046000
Oil Line Junc.b-crank.300mm 01
40
58038033200
Dual Banjo Bolt M10x1
42
58038033000
Dual Banjo Bolt M8x1
43
58038029000
Banjo Bolt M8x1
44
59038029000
Jet Screw "100" M8x1 Ws=12
45
0603100141
Уплотнитель шланга
46
0603082131
Copper Gask.din7603- 8, 2x13x1
47
58038032300
Cu-seal Ring 8 X 12 X 1, 5
48
0603821220
Copper Gasket 8, 2x12x2 Mm 2001
49
60030064070
Oil Jet 70 M6x0, 75 Ws8 03
51
0770400025
O-ring 40, 00x2, 50 Nbr 70
52
58338043000
Micro Filter Housing 02
53
59038046144
Oil Filter Short With Gasket
54
59038041000
Oil Filter Cover Racing
59
0015050163
Hh Collar Screw M 5x16 Ws=8
60
0015050203
Hh Collar Screw M 5x20 Ws=8
61
0021050003
Washer Din9021-a 5, 3
62
58011039000
Spacer Bushing 6, 5 X 8 X 7
63
31008060000
Rubber Sleeve D=8mm Open
