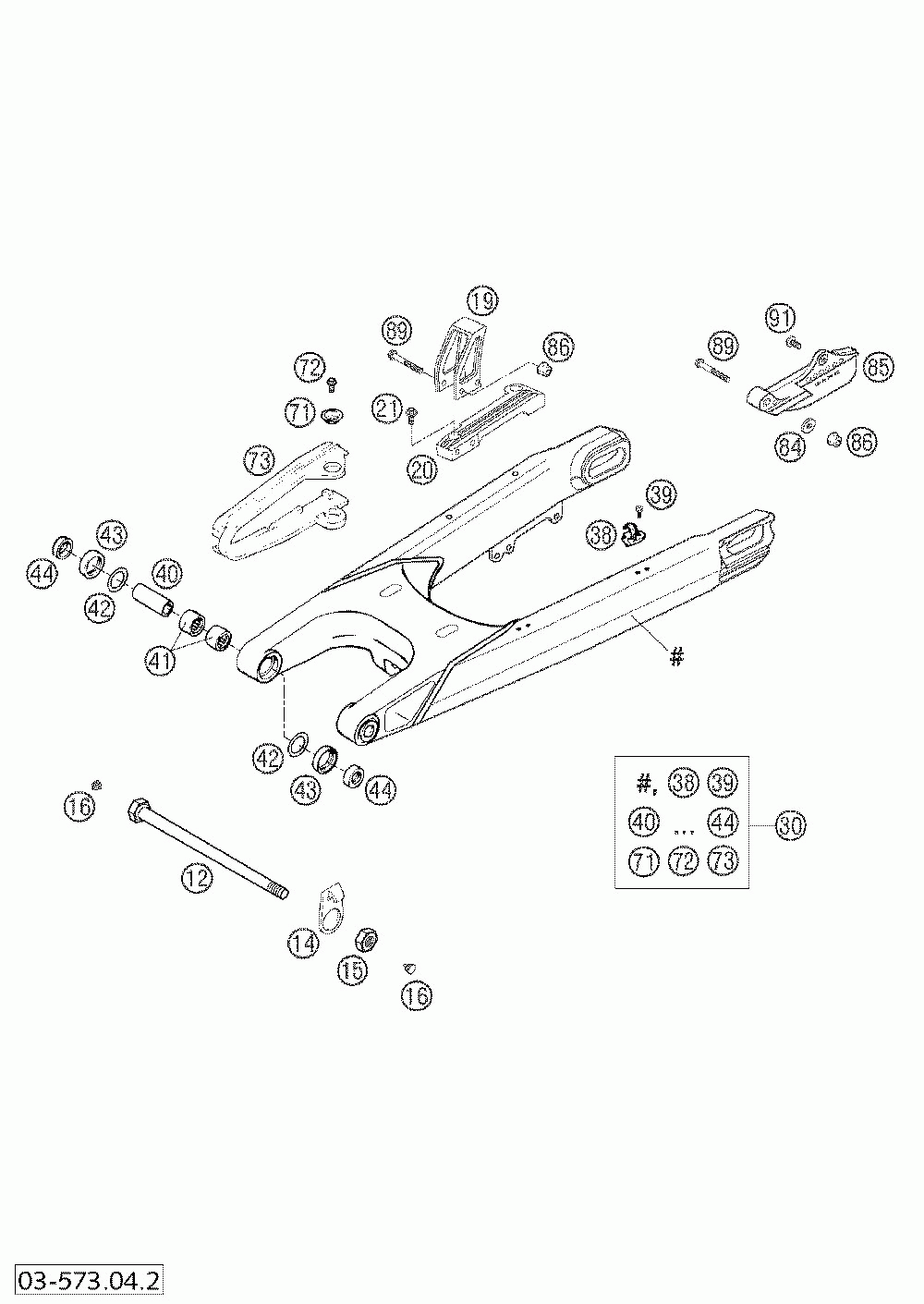

Swingarm 660

KTM 660 SUPERMOTO FACTORY REPLICA
KTM
#oem кодцена
12
54603014100
Swingarm Bolt Kpl. L=253
14
50230211000
Brake Hose Guide '89
15
54603015000
Self Locking Nut M14x1, 5 Ws=19
19
57304067000
Chain Guard Top Sm 2003
20
57304066100
Chain Guard Bottom Sm 2003
21
0014060153
Hh Collar Screw M 6x15 Ws=8
38
54611076100
Retain.clamp For Brake Hose'96
39
0010050103
Special Screw M 5, 0x10
40
50203081700
Bushing Sleeve 15x20x38, 75
41
59004031000
Needle Bush Hk2012v
42
54603036000
Stop Disk 22, 2x31, 7x1
43
0760253270
Shaft Seal Ring 25x32x7
44
54603090000
Bucket F.shaftsealring 15x25x9
71
72210079000
Шайба
72
0015060103
Hh Collar Screw M 6x10 Ws=8
73
58307073000
Chain Sliding Guard Duke'94
84
50232050001
Steel Washer 6, 4x17x3
85
58404070000
Chain Guide Cpl. Rear Lc4 '98
86
56509064100
Self Locking Nut M6 10.9
89
0015060403
Hh Collar Screw M 6x40 Ws=8
91
0024060106
Hh Collar Screw M6x10 Tx30
89
0025060406
Hh Collar Screw M6x40 Tx30
