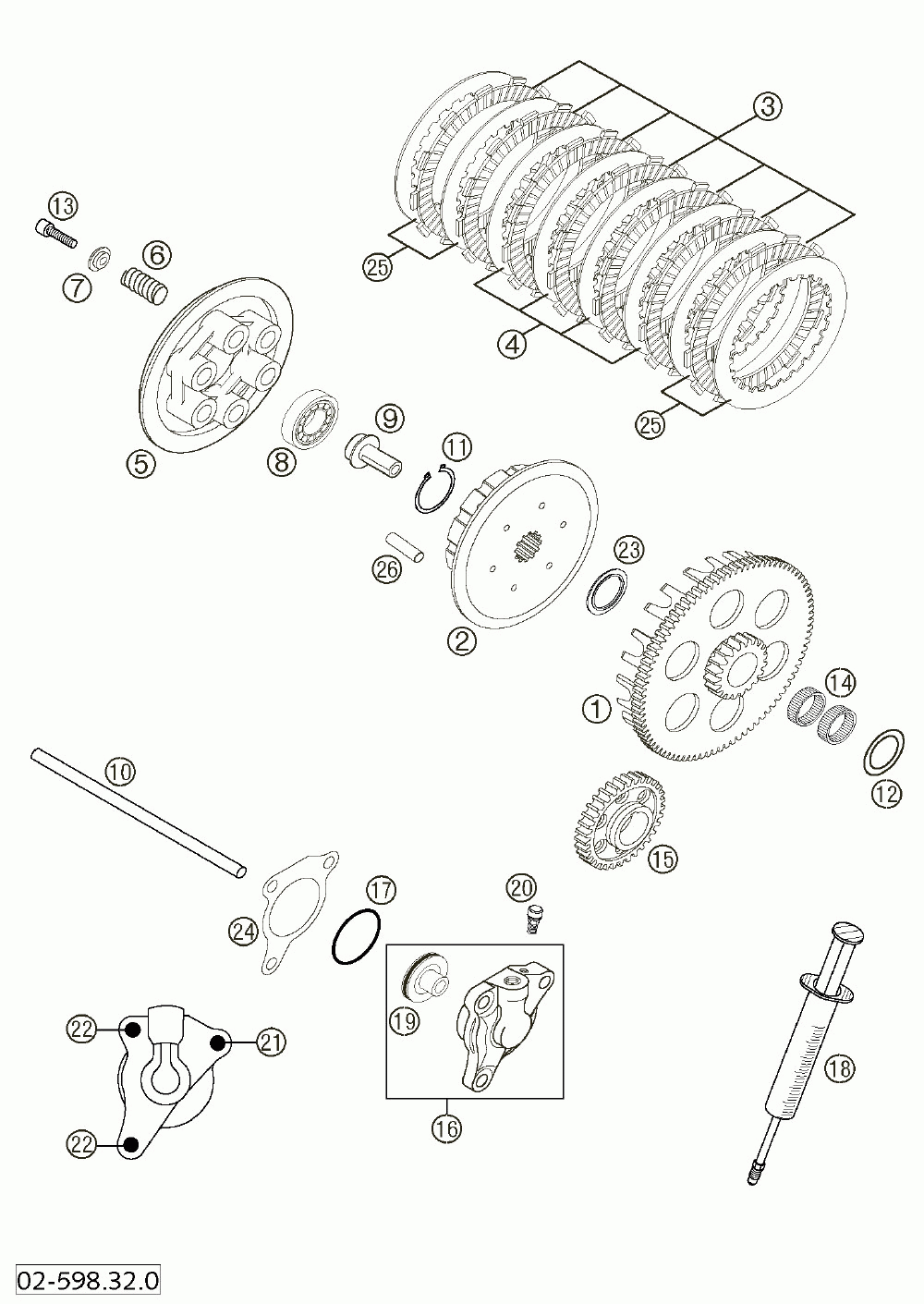

Clutch 250

KTM 250 EXC RACING
KTM
#oem кодцена
1
59032000276
Outer Clutch H. 76-t/20-t 2001
2
59032002100
Inner Clutch Hub Racing 2002
3
59032011000
Lining Disk 1, 8mm
4
59032010200
Intermediate Disc 1, 4mm 2002
5
59032003000
Крышка Давления
6
59032005000
Clutch Spring 2, 5x43mm
7
59032006050
Spring Retainer 6, 2x12x18x5, 2
8
0625160040
Grooved Ball Bear. Tm 16004 C3
9
59032055100
Pressure Bolt 02
10
59032054000
Push Rod 7x188mm
11
0471250120
Circlip Din0471-25x1, 2
12
59032017000
Supportwasher 25x35x1
13
0984060252
Ah Screw Din6912 M6x25
14
0405252910
Needle Bear K 25x29x10
15
59032000033
Primary Gear 33-t
16
59032061044
% Output Cylinder Cpl. 27mm 03
17
0770300015
O-ring 30, 00x1, 50 Nbr 70
18
50329050000
Vent Injektion Hydr. Clutch
19
54632066000
Piston W. O-ring 250-380 '2000
20
54732064000
Штуцер С Колпачком
21
0015060353
Hh Collar Screw M 6x35 Ws=8
22
0015060203
Hh Collar Screw M 6x20 Ws=8
23
59032014000
Шайба
24
59032065000
Gasket For Slave Cylinder
25
59032010100
Intermediate Disc 1mm 2002
26
59032004000
Driving Sleeve D=8, L=31 2002
