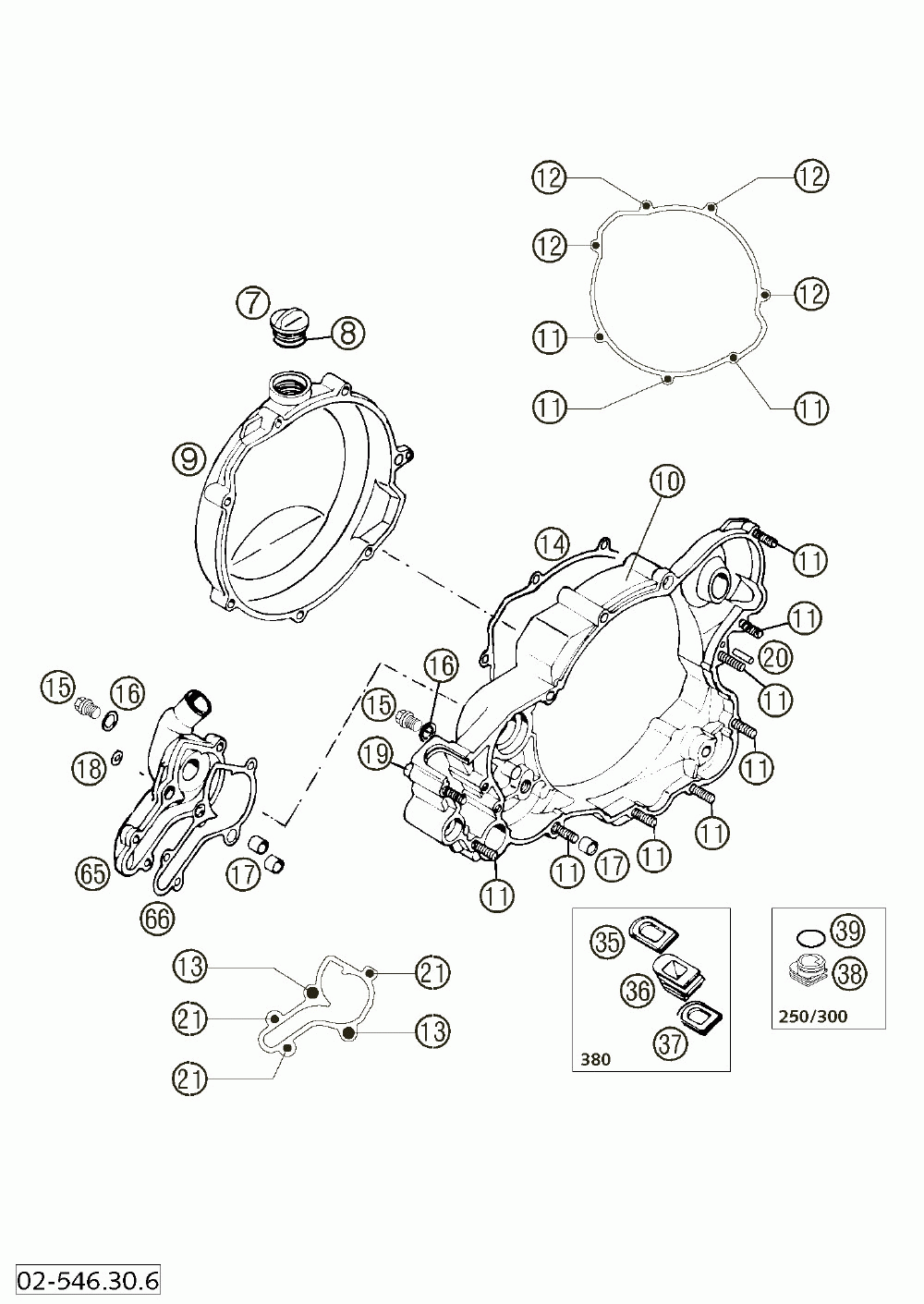

Clutch cover 250/300/380

KTM 250/300/380 SX, MXC, EXC
KTM
#oem кодцена
7
58030020100
Пробка M24x3
8
0770160030
O-ring 16, 00x3, 00 Nbr 70
9
5463010100098
Outer Clutch Cover 2001
10
54630001300
Clutch Cover 250/300/360 '96
11
0015060303
Hh Collar Screw M 6x30 Sw=8
12
0015060703
Hh Collar Screw M 6x70 Ws=8
13
0015060253
Hh Collar Screw M 6x25 Ws=8
14
54630025050
Outer Clutch Cover Gasket
15
0910100003
Plug Din0910-m 10x1
16
42013226000
Cu-seal Ring Din7603-10x16x1
17
49030090000
Шпонка 9, 8 Х 7 Х 10
18
0603061001
Cu-seal Ring Din7603-6x10x1
19
0015060453
Hh Collar Screw M 6x45 Ws=8
20
0007050160
Cylinder Pin Din 7-5x16mm (m6)
21
0015060203
Hh Collar Screw M 6x20 Ws=8
35
54637207000
Sealing Element Top
36
54637007000
Прокладка
37
54637107000
Sealing Element Bottom
38
54737091000
Sealing Carrier 250 2000
39
0770021160
0-ring 18, 72x2, 62
65
54635001000
Крышка водяной помпы
66
54635003200
Water Pump Cover Gasket
