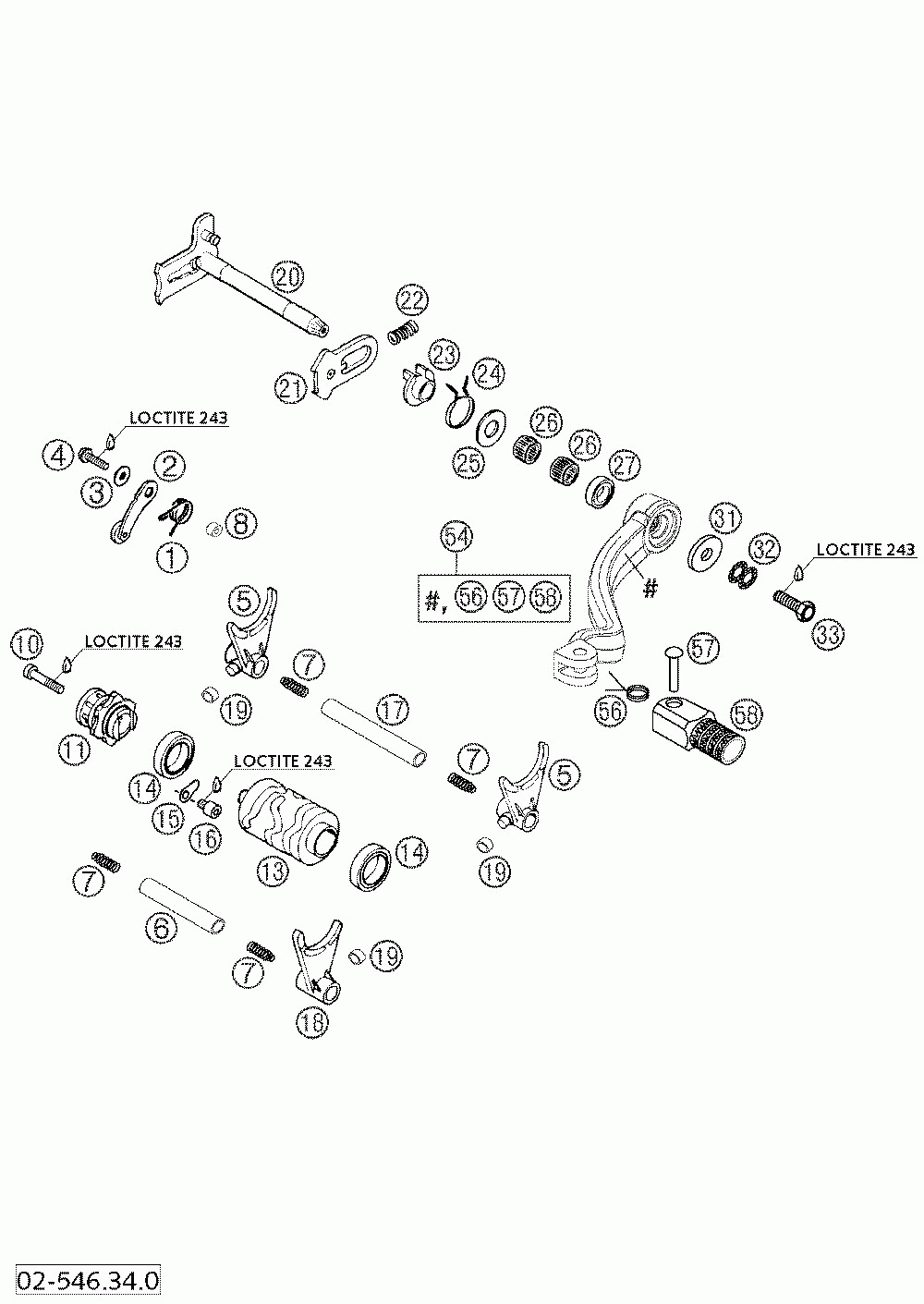

Shifting mechanism 250/300/380

KTM 250/300/380 SX, MXC, EXC
KTM
#oem кодцена
1
54634023300
Locking Lever Spring '96
2
77034024044
Locking Lever Cpl. 08
3
0349000050
Washer Din7349-5x15x2
4
0015050203
Hh Collar Screw M 5x20 Ws=8
5
54734002000
Shifting Fork 1./3.gear+2.g'99
6
54734019000
Shifting Rail 75, 8mm Mains.'99
7
58038023200
Pressure Spring 0, 9mm
8
54634052300
Sleeve For Locking Lever
10
0912060303
Ah Screw Din0912-m 6x30
11
59034015144
Ship Drum Locating Cpl.
13
54734012000
Shift Roller 250-380 '99
14
0625618050
Ball Bearing 61805 C3
15
54634049000
Retaining Plate
16
0912060083
Ah Screw Din0912-m 6x 8
17
54734020000
Shifting Rail 96, 8mm Count.'99
18
54734001000
Shifting Fork 4./5.gang '99
19
50334018100
Shifting Roller 6x8x5, 2
20
54634105044
Shift Shaft Cpl. '03
21
54634008044
Sliding Plate Cpl.
22
56534013100
Tensioning Spring 0, 8mm
23
54634020000
Spring Guide
24
54634014100
Return Spring 2, 2mm '95
25
54634050000
Stop Disk 14x30x1
26
54632095000
Needle Bear.hk 1412 14x20x12
27
0760142460
Shaft Seal Ring 14x24x6 B
31
50232050001
Steel Washer 6, 4x17x3
32
50233041000
Pair Of Washers M 6 Nordlock
33
0933060165
Hh Screw Din0933-m 6x16 10.9
54
54734031000
Shift Lever Cpl. 2-stroke 2001
56
54634032100
Shifting Lever Spring 250
57
54634031050
Bolt 6x25 For Shift Lever
58
54634131000
Step Plate For Shift Lever 250
