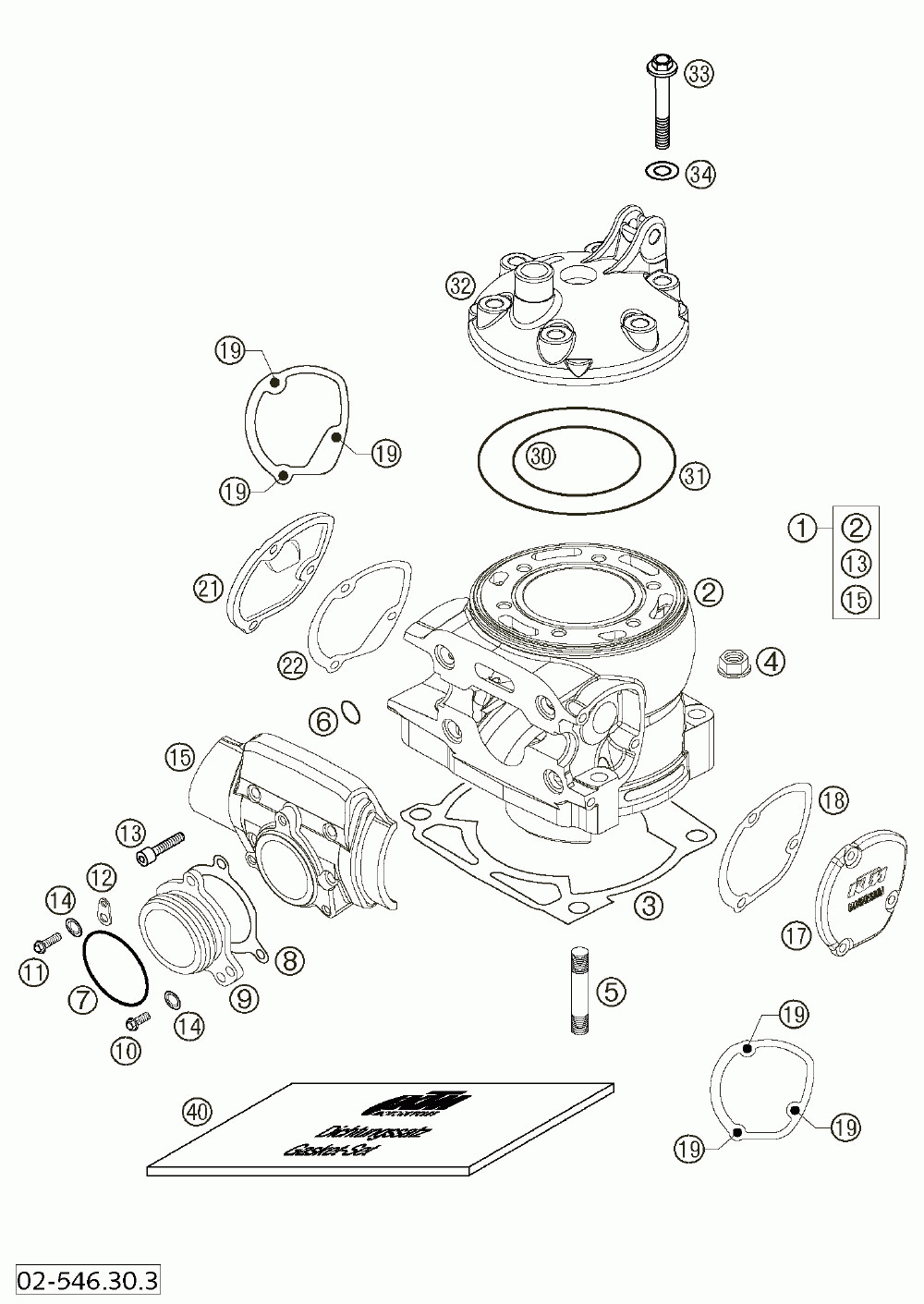

Cylinder 250/300

KTM 250/300/380 SX, MXC, EXC
KTM
#oem кодцена
1
54630205344
Cylinder Cpl.w.flange 250 2002
1
54630405244
Cylinder Cpl.w.flange 300 2001
4
54630044000
Collar Nut M10 Ws=13
5
0835100456
Stud Din0835-m10x45
5
0835100403
Stud Din0835-m10x40
6
0770116241
O-ring 11, 3 X2, 4 Silicon
7
0770440030
O-ring 44, 00x3, 00 Viton
8
54630046000
Exhaust Flange Gasket
9
54705003000
Exhaust Flange Cpl. 250 '99
9
54605073000
Exhaust Flange
10
0015060163
Hh Collar Screw M 6x16 Ws=8
11
0015060203
Hh Collar Screw M 6x20 Ws=8
12
51005074000
Retaining Plate
13
0912060303
Ah Screw Din0912-m 6x30
14
0137060003
Spring Washer Din0137-b 6
17
60008001100
Head Light Mask 07
17
5473700500098
Control Cover L/s 2001
18
54737006000
Gasket For Control Cover L/s
19
0015050123
Hh Collar Screw M 5x12 Ws=8
21
5473700700098
Control Cover R/s 2001
22
54737008000
Gasket For Control Cover R/s
30
0770760021
O-ring 76, 00x2, 00 Viton
30
0770800021
O-ring 80, 00x2, 00 Viton
31
0770114020
O-ring 114, 00x2, 00 Silicone
32
54630206300
Cylinder Head Sx 250 2002
32
54630306700
Cylinder Head "3002" 300 2001
33
56530079000
Collar Screw M8x42 Ws=13 10.9
34
56530080000
Cu-seal Ring 8 X 16 X 1
40
54630097100
Gasket Set Cyl. 250/300 96-06
