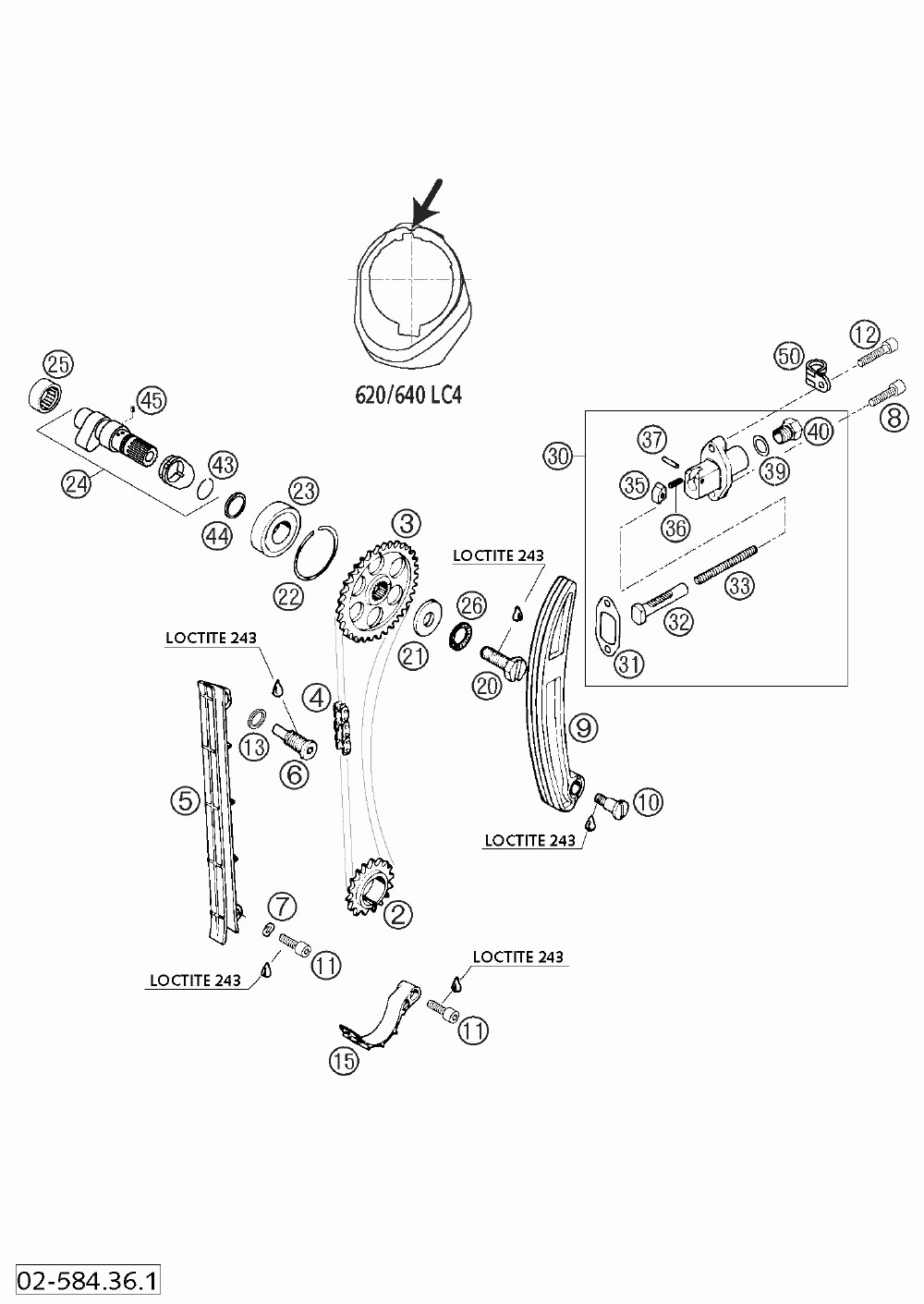

Timing valve 625

KTM 625 LC4 SUPERCOMPETITION, 625 LC4 SUPERCOMPETITION SUPERMOTO
KTM
#oem кодцена
2
58036014000
Timing Gear 17-t
3
58336011001
Camshaft Gear 34-t "01" '94
4
58036013000
Timing Chain C107c / 100 Links
5
58036001000
Timing Chain Guide
6
58036009000
Chain Guide Screw
7
0137060003
Spring Washer Din0137-b 6
8
0912060253
Ah Screw Din0912-m 6x25
9
58036002000
Timing Chain Tensioner
10
0923080120
Flat Head Scr. M 8x12
11
0912060208
Ah Screw Din0912-m 6x20 Ss
12
0912060303
Ah Screw Din0912-m 6x30
13
58038022100
Cu-seal Ring 12 X 16 X 2
15
58336018000
Securing Guide
20
58336112000
Driving Screw M10x25
21
58036012000
Steel Washer 10 X 28 X 3
22
58036096000
Circlip Sb 42
23
0625060040
Grooved Ball Bearing Tmb004
24
58336010144
Camshaft 249/ Cpl.
25
58036097000
Needle Bearing Bk 2012
26
36003014200
Locking Washer 10mm
30
58036003144
Autom.tensioner Cpl. '88
31
58036005100
Tensioner Gasket 1, 5 Mm
32
58036004100
Pressure Bolt
33
58036006100
Pressure Spring 0, 9mm
35
58036007100
Ratcheting Pawl
36
58036007050
Pres.spring F.ratcheting Pawl
37
0402031780
Иглы Рол
39
58038022000
Кольцо 12x18x1, 5
40
58036008100
Plug M12x1, 5
43
0417200120
Circlip Ws20
44
58336015000
Stepped Ring
45
58336016052
Spring For Auto-decompr. '95
50
54211052000
Clamp Rsgu 24/15
