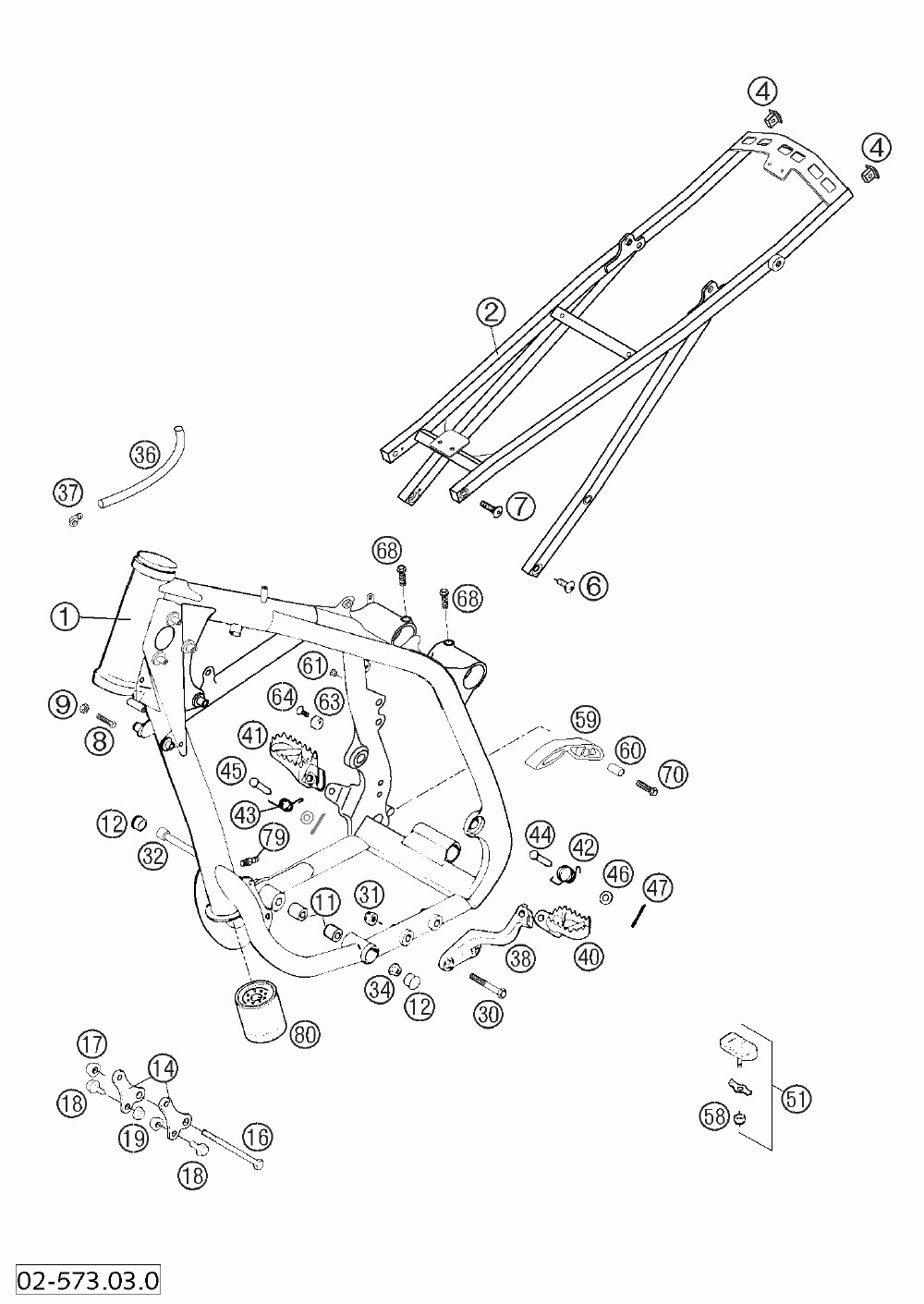

Frame, sub frame 660

KTM 660 SUPERMOTO FACTORY REPLICA
KTM
#oem кодцена
4
50303002182
Plug-in Cap Sw14 99
6
54610052000
Винт M8x20 Ws=6
7
54510052100
Sprocket Screw-ah M8x26 Ws=6
8
59001037000
Special Screw M8x26 Ws=10
9
0934080003
Hexagon Nut Din0934-m 8
11
58003012000
Spacer Roller 10, 3x20x22
15
58303055000
Engine Support Agw '94
16
0931101103
Hh Screw Din0931-m10x110
17
49009082000
Self Locking Nut M10 Fk8
18
54310086200
Self Locking Nut M8 10.9
30
0931100603
Hh Screw Din0931-m10x60
31
0985100003
гайка Din0985-m10
32
0912101603
Ah Screw Din0912-m10x160
34
54630044000
Collar Nut M10 Ws=13
37
50303089000
Angle Piece '97
38
58303038000
Footrest Bracket L/s '93
38
5830303800030
Footrest Bracket L/s Black
40
5830304000019
Footrest L/s Anthrazit '98
40
5830304000030
Footrest L/s Black
41
5460314000030
Footrest R/s Black
42
58303041000
Footrest Spring L/s '93
43
54603041000
Footrest Spring L/s & R/s
44
58303044000
Bolt For Footrest
45
54603044000
Bolt For Footrest 9, 8 X 50
46
0125100003
Washer Din0125-a10, 5
47
0094032253
Pin Din0094-3, 2x25 Steel
59
51103053000
Chain Sliding Piece Below '97
60
51103053051
Bushing 8, 2x10x20
63
58303063000
Brake Lever Stop '93
64
0991060202
Flat Head Din7991-m 6x20
68
0025080256
Винт M8x25 Tx40
70
0025080306
Hh Collar Screw M8x30 Tx40
80
57303096000
Overflow Reservoir Superm. 02
85
49109481052
Hh Collar Screw M 8x16 Ws=13
