Driven clutch assembly

Arctic Cat 90 Y-12

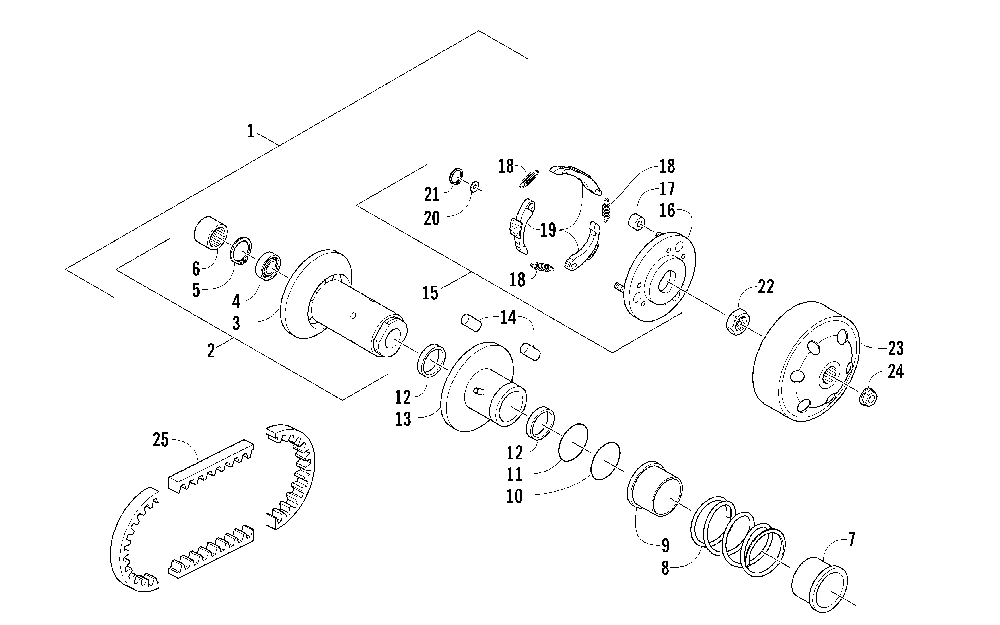

Driven clutch assembly

#

oem код

название

цена

1

Drive Face Ass'y (b) (inc. 2-22)

Drive Face Ass'y (b) (inc. 2-22)

2

Secondary Fix Slot Wheel (inc. 3-6)

Secondary Fix Slot Wheel (inc. 3-6)

3

Face Ass'y Driven

Face Ass'y Driven

4

Radial Ball Bearing

Radial Ball Bearing

5

Internal Cir Clip

Internal Cir Clip

6

Игольчатый подшипник

Игольчатый подшипник

7

Coller Spring

Coller Spring

8

Пружина сжатия

Пружина сжатия

9

Secondary Spring Seat

Secondary Spring Seat

10

Oil Ring

Oil Ring

11

Oil Ring

Oil Ring

12

Сальник

Сальник

13

Secondary Sliding Slot Wheel

Secondary Sliding Slot Wheel

14

Guide Pin

Guide Pin

15

Plate Ass'y Drive (inc. 16-21)

Plate Ass'y Drive (inc. 16-21)

16

Plate Comp Drive

Plate Comp Drive

17

Rubber Clutch Damper

Rubber Clutch Damper

18

Spring Clutch

Spring Clutch

19

Clutch Weight Set

Clutch Weight Set

20

Copper Plain Washer

Copper Plain Washer

21

External Cir Clip

External Cir Clip

22

Hex Nut

Hex Nut

23

Clutch Cover Comp

Clutch Cover Comp

24

Hex Flange Nut With Serration

Hex Flange Nut With Serration

25

Belt Drive

Belt Drive
