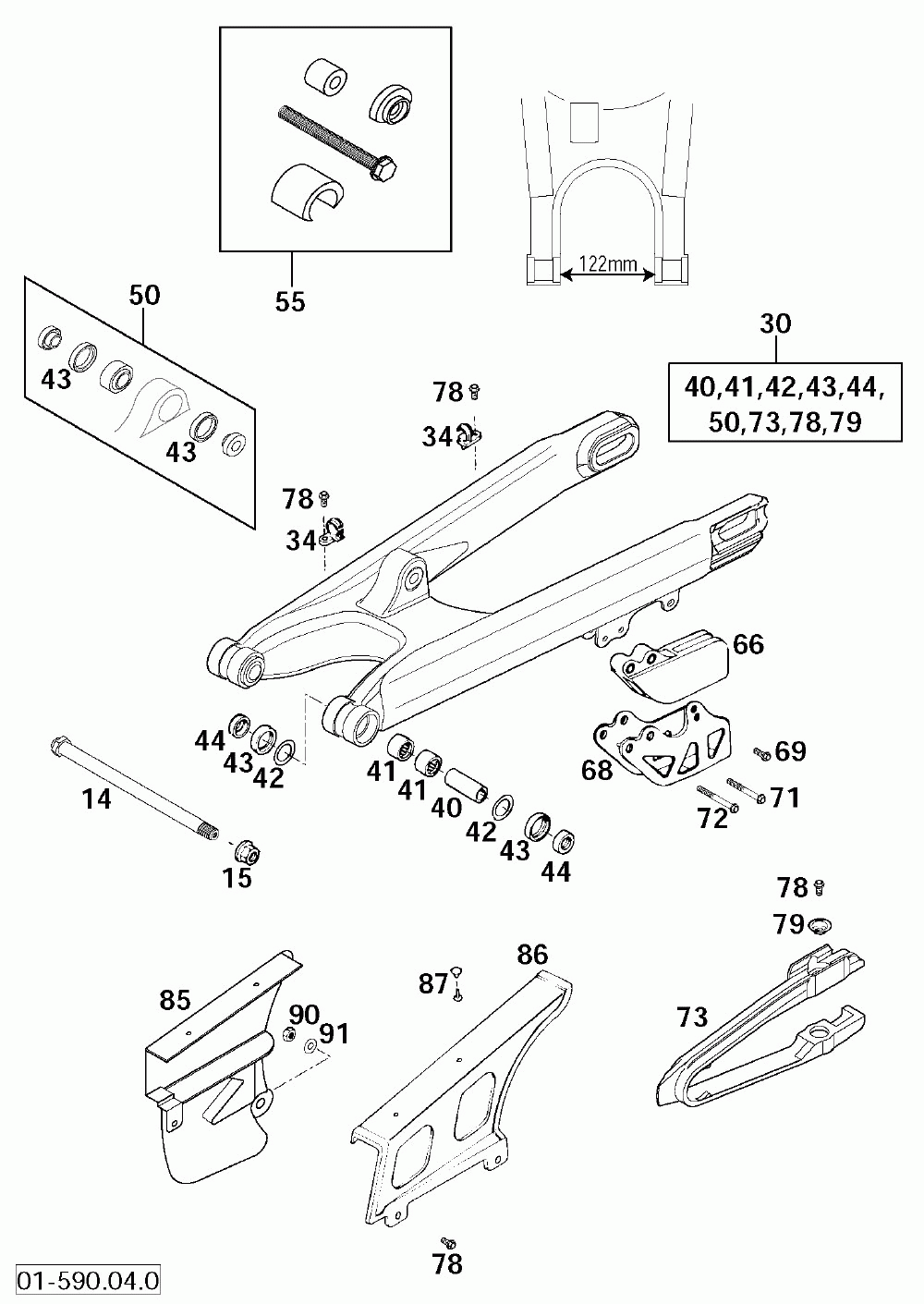

Schwingarm, kettenschutz swingarm, chain guard 400/520

KTM 400/520 SX MXC EXC RACING CHASSIS
KTM
#oem кодцена
14
50303014000
Swingarm Bolt 14x252 Ws=22
15
54603015000
Self Locking Nut M14x1, 5 Ws=19
30
59004030244
Swingarm Cpl. 540 Sxs 2000
34
54611076100
Retain.clamp For Brake Hose'96
40
50203081700
Bushing Sleeve 15x20x38, 75
41
59004031000
Needle Bush Hk2012v
42
54603036000
Stop Disk 22, 2x31, 7x1
43
0760253270
Shaft Seal Ring 25x32x7
44
54603090000
Bucket F.shaftsealring 15x25x9
50
50304090044
Pivot Bearing+bushes Pds '99
55
50329000044
Tool Bearing Mounting Pds
66
54607066100
Chain Guide Rear '94
68
54607070144
Retaining Plate Cpl.
69
0015060163
Hh Collar Screw M 6x16 Ws=8
72
0015060553
Hh Collar Screw M 6x55 Ws=8
73
50304066100
Chain Guard 05
78
0009050103
Special Screw M 5, 0x10
79
72210079000
Шайба
85
50304060100
Chain Guard Small Exc 2000
86
54607460000
Chain Guard Large Egs
87
20012062055
Hollow Rivet Two Parts
90
0985060003
Self Lock. Nut Din0985-m 6
91
0021060003
Washer Din9021-a 6, 4
