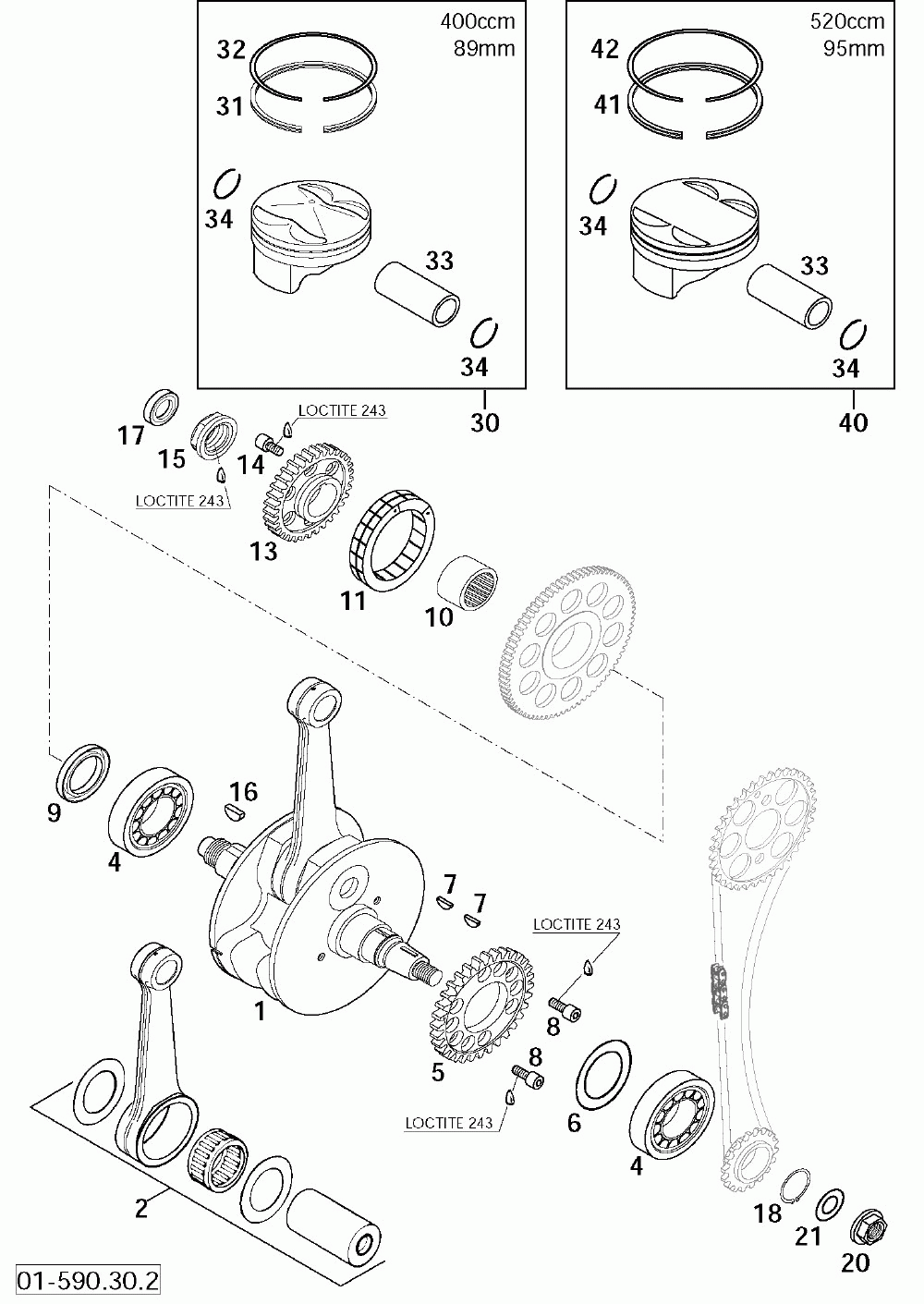

Kurbelwelle, kolben crankshaft, piston 400/520

KTM 400/520 SX MXC EXC RACING ENGINE
KTM
#oem кодцена
1
59530018300
Crankshaft Cpl. 400 Rac. 2006
1
59030018500
Crankshaft Cpl. 520 Rac. 2006
2
59530015044
Con.rod Rep.set 400 Rac. 2000
2
59030015044
Con.rod Rep.set 250/520 Rac.00
4
50330082000
Подшипник
5
59030055000
Drive Gear 32-t F.balanc.shaft
6
56030081000
Thrust Washer 30, 5x45x0, 10
6
56030081100
Thrust Washer 30, 7x47x0, 15
6
56030081200
Thrust Washer 30, 5x45x0, 30
7
0888030050
Шпонка 3x5x13
8
0984060162
Ah Screw Din7984-m 6x16
9
0760304772
Sh.seal Ring 30x47x7 Bsl Viton
10
0618301617
Needle Bearing Hk 3016 B
11
58440026000
Free-wheel Fwd 332008 Bls
13
59032000033
Primary Gear 33-t
14
0912060106
винт 0912-м 6х10 10.9
15
59030029100
Hh Nur M20x1, 5 Ws=27 Left
16
6946005
Шпонка 5x6
17
0760142460
Shaft Seal Ring 14x24x6 B
18
0471250120
Circlip Din0471-25x1, 2
20
49030021000
Гайка M12x1
21
0137120000
Spring Washer Din0137-b12
31
59530031000
Oil Scraper Ring 89/81, 5x3
32
57530032000
Rectangular Ring 89mm
33
59030033000
Piston Pin Bolt 20x15, 8/12x50
34
59030074000
Circlip C20x1, 5
41
58030631000
Oil Scraper Ring 95mm
42
59030032000
Rectangular Ring 95/87, 2x1, 25
