  6. Zylinderkopf cylinder head 400/640

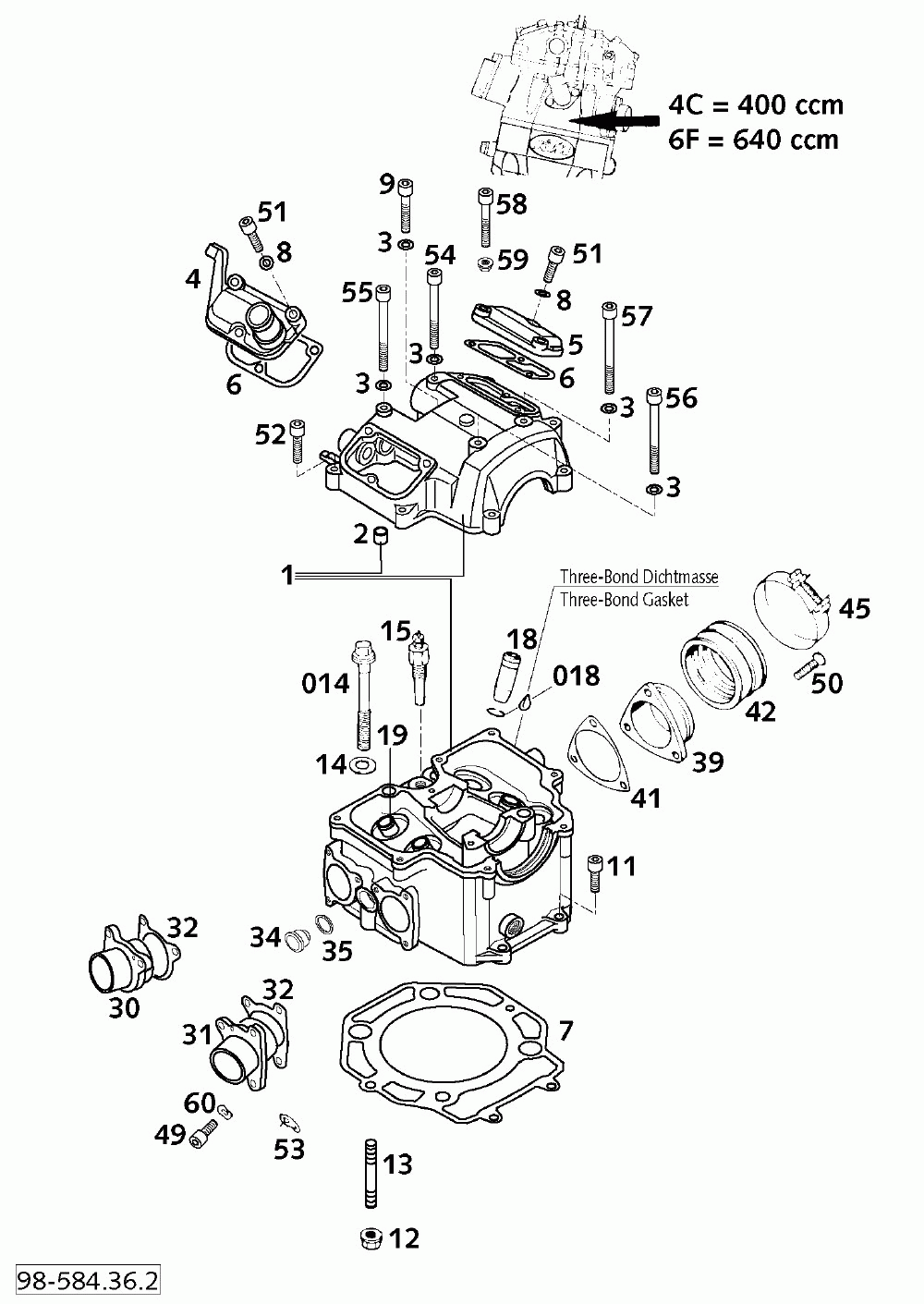

Zylinderkopf cylinder head 400/640

KTM 400/640 LC4-E/SUPERMOTO ENGINE
KTM
#oem кодцена
1
57636020300
Cylinder Head Cpl. 400 Lc4 '97
1
58436020000
Cylinder Head Cpl. 640 Lc4 '98
2
49030090000
Шпонка 9, 8 Х 7 Х 10
3
58036065100
Cu-seal Ring 6 X 10 X 2
4
58036152600
Valve Cover Front '99
5
58036052200
Valve Cover Rear
6
58036053000
Valve Cover Gasket
7
57530036000
Cylinder Head Gasket 90, 3 Mm
7
58330036000
Cylinder Head Gasket 101, 3 Mm
8
0603061001
Cu-seal Ring Din7603-6x10x1
9
0912060353
Ah Screw Din0912-m 6x35
11
0912060253
Ah Screw Din0912-m 6x25
12
49030028000
Collar Nut M8
13
0835080355
Stud Din0835-m 8x35 10.9
13
54330043000
Stud Din0835-m 8x40
45
56530061000
Clamp Sm12/a60
49
0912060163
Ah Screw Din0912-m 6x16
50
0991060202
Flat Head Din7991-m 6x20
51
0912060203
Ah Screw Din0912-m 6x20
53
51005074000
Retaining Plate
54
0912060501
Ah Screw Din0912-m 6x50 12.9
55
0912060551
Ah Screw Din0912-m 6x55 12.9
56
0912060653
Винт 6х65
57
0912060703
Ah Screw Din0912-m 6x70
59
56509064100
Self Locking Nut M6 10.9
60
0137060003
Spring Washer Din0137-b 6
