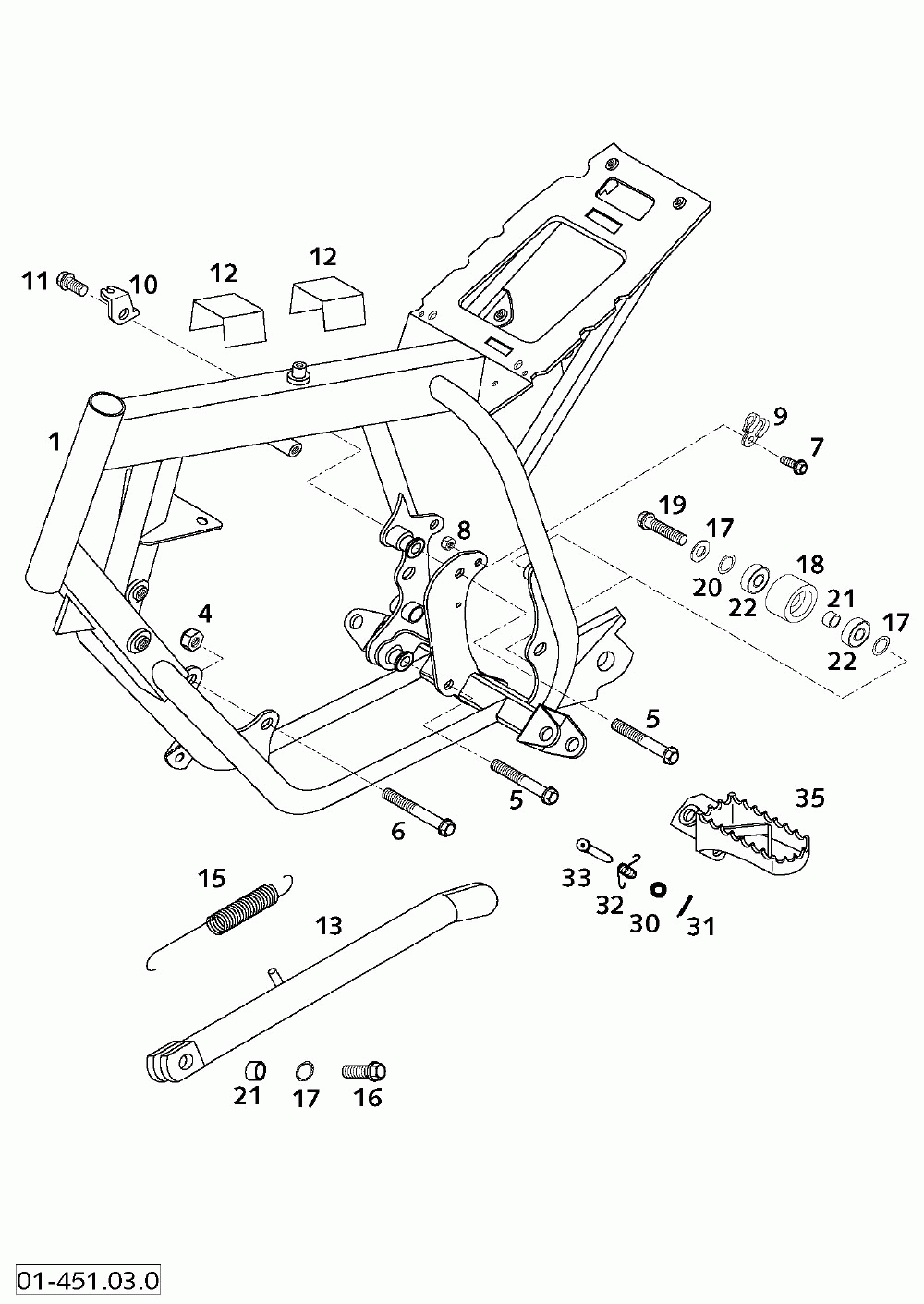

Frame, side stand 50 lc

KTM 50 SX Pro Senior LC CHASSIS / ENGINE
KTM
#oem кодцена
1
45103001100
Frame Pro Sen."lc" (mc1r) 2001
4
54310086200
Self Locking Nut M8 10.9
5
0015080553
Hh Collar Screw M 8x55 Ws=10
6
0015080603
Hh Collar Screw M 8x60 Ws=10
7
0015050163
Hh Collar Screw M 5x16 Ws=8
8
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
9
45001070000
Brake Cable Clamp Rsgu 9/12
10
45113052000
Brake Thrust Bearing Mini 2001
11
0015080163
Hh Collar Screw M 8x16 Ws=10
12
58711054050
Metamoll For Battery Bracket
13
4510302300090
Side Stand L=319mm Silver 2001
15
51003021000
Sidestand Spring Long
16
0933080203
Hh Screw Din0933-m 8x20
17
36003014000
Стопорная шайба 8 мм
18
50203053000
Chain Roll D=30mm
19
0015080353
Hh Collar Screw M 8x35 Ws=10
20
0125080003
Washer Din0125-a 8, 4
21
74003021000
Bushing 8.2 X 12 X 6
22
0625006087
Grooved Ball Bear. 608 2rs C3
31
0094032253
Pin Din0094-3, 2x25 Steel
32
54603041000
Footrest Spring L/s & R/s
33
54603044000
Bolt For Footrest 9, 8 X 50
35
5460304000090
Foot Rest L/s Silver
