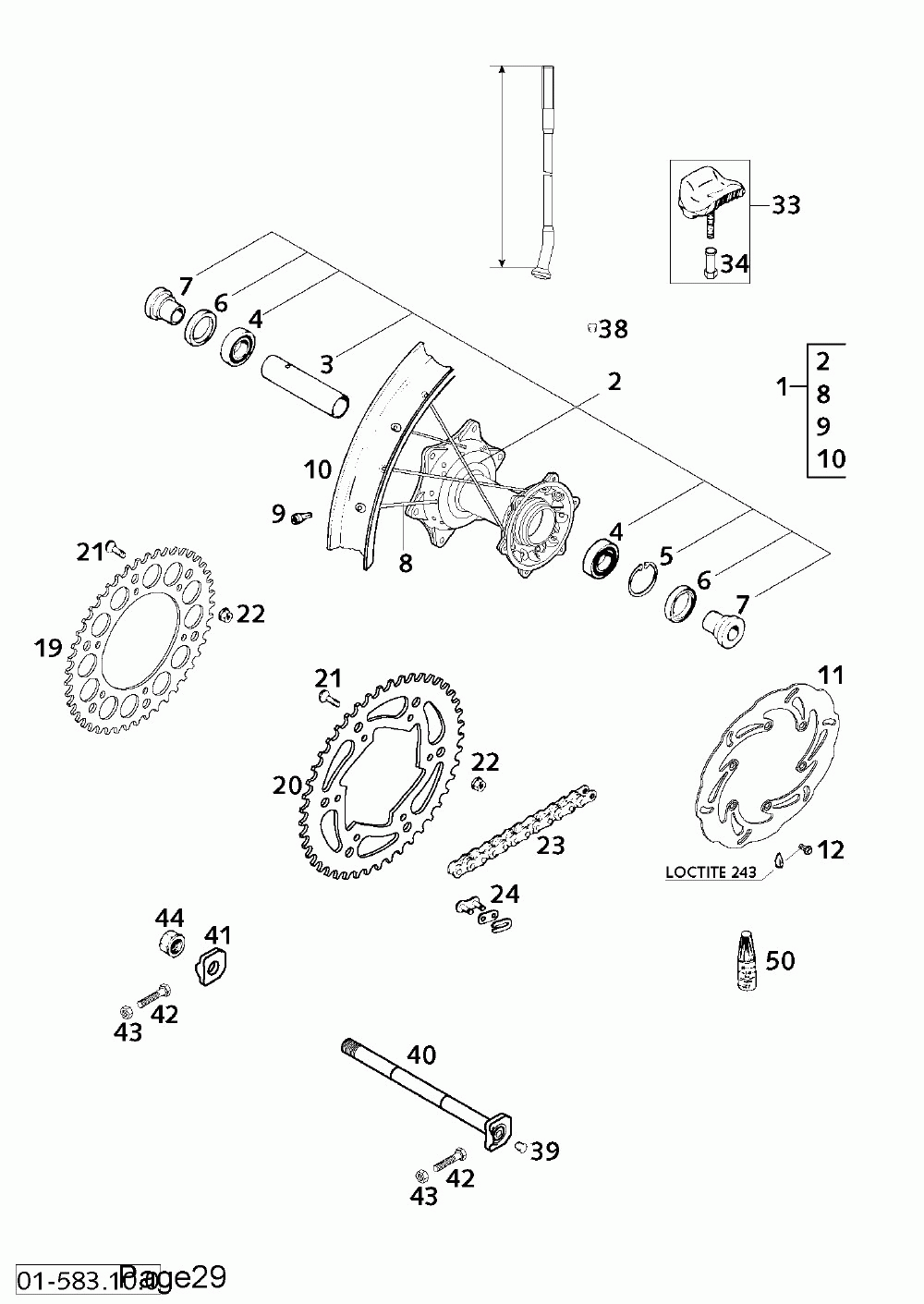

Hinterrad sc rear wheel sc 620

KTM 620 SUPER COMPETITION, 620 SC SUPERMOTO CHASSIS
KTM
#oem кодцена
1
50310001244
Rearwheel Cpl.2.15x18"did 2000
2
5481001004491
Rear Wheel Hub Cpl. Sx, Exc 03
3
59010011000
Bushing Spacer Tube 121, 5mm 01
4
0625060058
Gr.ball Bear.6005 Ddu2cg23s6nm
5
0472047175
Circlip Din0472-47x1, 75
6
0760324771
Shaft Seal Ring 32x47x7 Bsl
7
54610016000
Bushing For Hub
8
50310071197
Spoke M5x197-10g 18" Dde
9
58309072100
Spoke Nipple M5-ta 8x21mm
10
54610070300
Rear Rim 2, 15x18" Did
11
58310060100
Brake Disc Rear D=220mm 2000
12
59009062013
Special Screw M6x13 Ws=8 10.9
19
58310051038
Rear Sprocket 38-t
19
58310151040
Rear Sprocket 40-t
19
58310051042
Rear Sprocket 42-t
19
58310151045
Rear Sprocket 45-t
20
58310151048
Rear Sprocket 48-t
20
58310151050
Rear Sprocket 50-t
20
58310151052
Rear Sprocket 52-t
21
54510052100
Sprocket Screw-ah M8x26 Ws=6
22
54310086200
Self Locking Nut M8 10.9
23
50310800118
% Chain Z-ring 5/8x1/4"
24
50010066100
Master Link 5/8x1/4" X-ring
33
54010100100
Rim Lock Vm3 (2.15")
34
50310090050
Nut For Wheel Holder '96
38
55003135000
Plug For Rim
39
50210086000
Covering Cap Sfl16
40
50210085044
Wheel Spindle Rear Cpl.l=264mm
41
56510084100
Chain Tensioner '95
42
50203030090
Hh Screw M8x40 Ws=10
43
0934080003
Hexagon Nut Din0934-m 8
44
50310099000
Hexagon Nut M20x1, 5 '98
