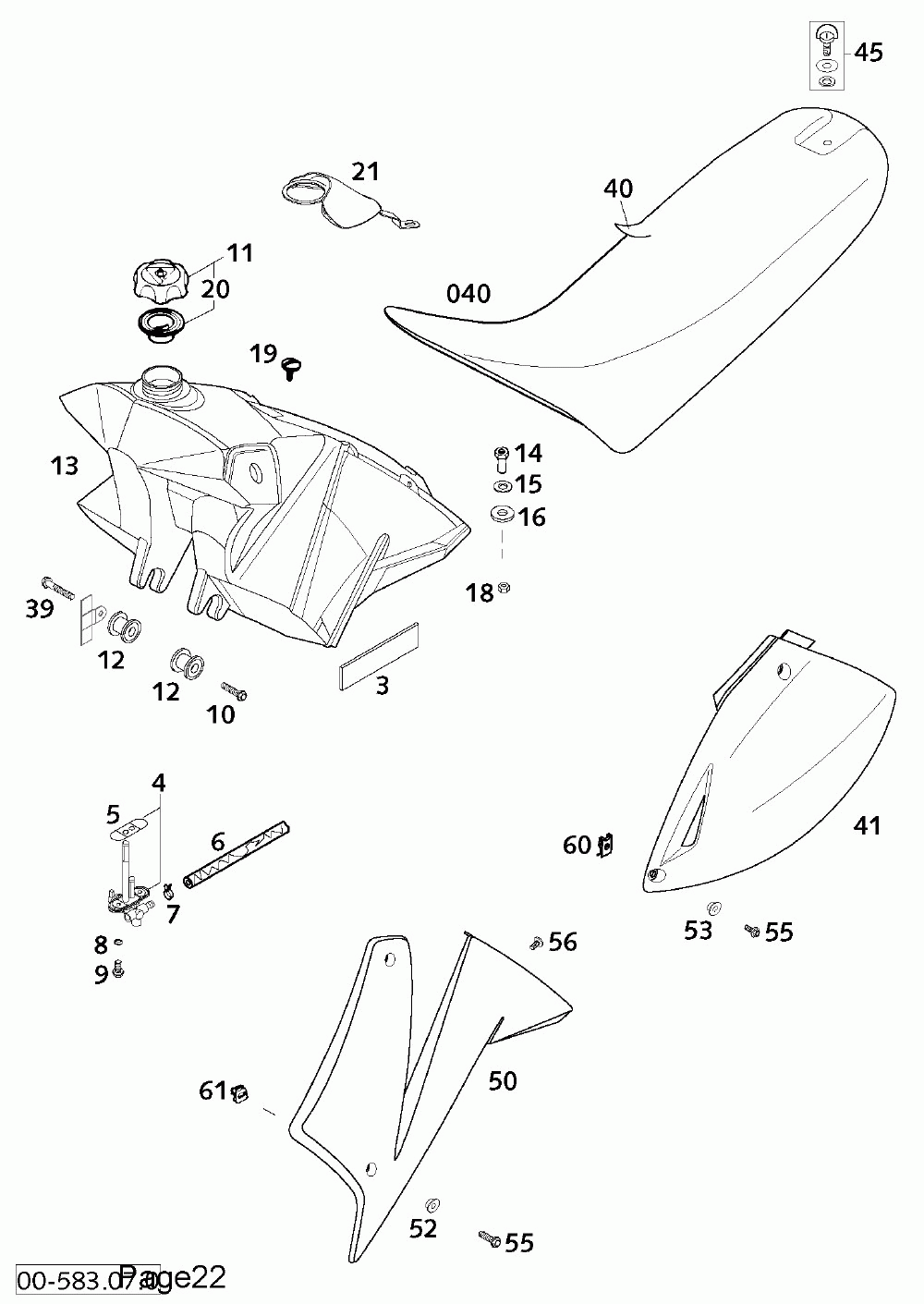

Tank, sitzbank, verkleidung tank, seat, cover 620

KTM 620 SUPER COMPETITION, 620 SC SUPERMOTO CHASSIS
KTM
#oem кодцена
3
54601097000
Rubber Strip 85x25x3 Mm
4
58307005100
Fuel Cock Mikuni Ck-84 '96
5
58307106100
Gasket Fuel Cock Mikuni
7
58031005000
Хомут 12мм
8
0603061001
Cu-seal Ring Din7603-6x10x1
9
0015060163
Hh Collar Screw M 6x16 Ws=8
10
0015060253
Hh Collar Screw M 6x25 Ws=8
11
59007008044
Filler Cap Cpl. With Valve
12
58307113250
Tank Bushing Cpl. 12 X 34 X 25
13
58307013700
Fuel Tank 9 Liter Black Sc'99
14
58307014000
Special Nut M8
15
58307019000
Washer 10, 5 X 25 X 1, 5
16
51005067100
Insolate Washer 12x28x3
18
0934080003
Hexagon Nut Din0934-m 8
19
58407011100
Screw For Seat M6x11, 5/8
20
59007009000
Gasket For Filler Cap High
21
58307013750
Genitalprotector Lc4 2000
39
0015060303
Hh Collar Screw M 6x30 Sw=8
41
5840804100090
Side Cover L/s Silver Lc4 '98
45
58307040551
Quick Release Cpl. '96
50
5840805000004
Spoiler L/s Orange Lc4 '98
52
50308052000
Bush For Spoiler 6x11x16x5 Mm
53
50308053000
Bush For Spoiler 6x11x16x7, 5
55
0015060203
Hh Collar Screw M 6x20 Ws=8
56
0024060106
Hh Collar Screw M6x10 Tx30
60
54603048100
Range Change Metal Nut M6
61
50235033300
Snap-nut Holder M6 Kp142
