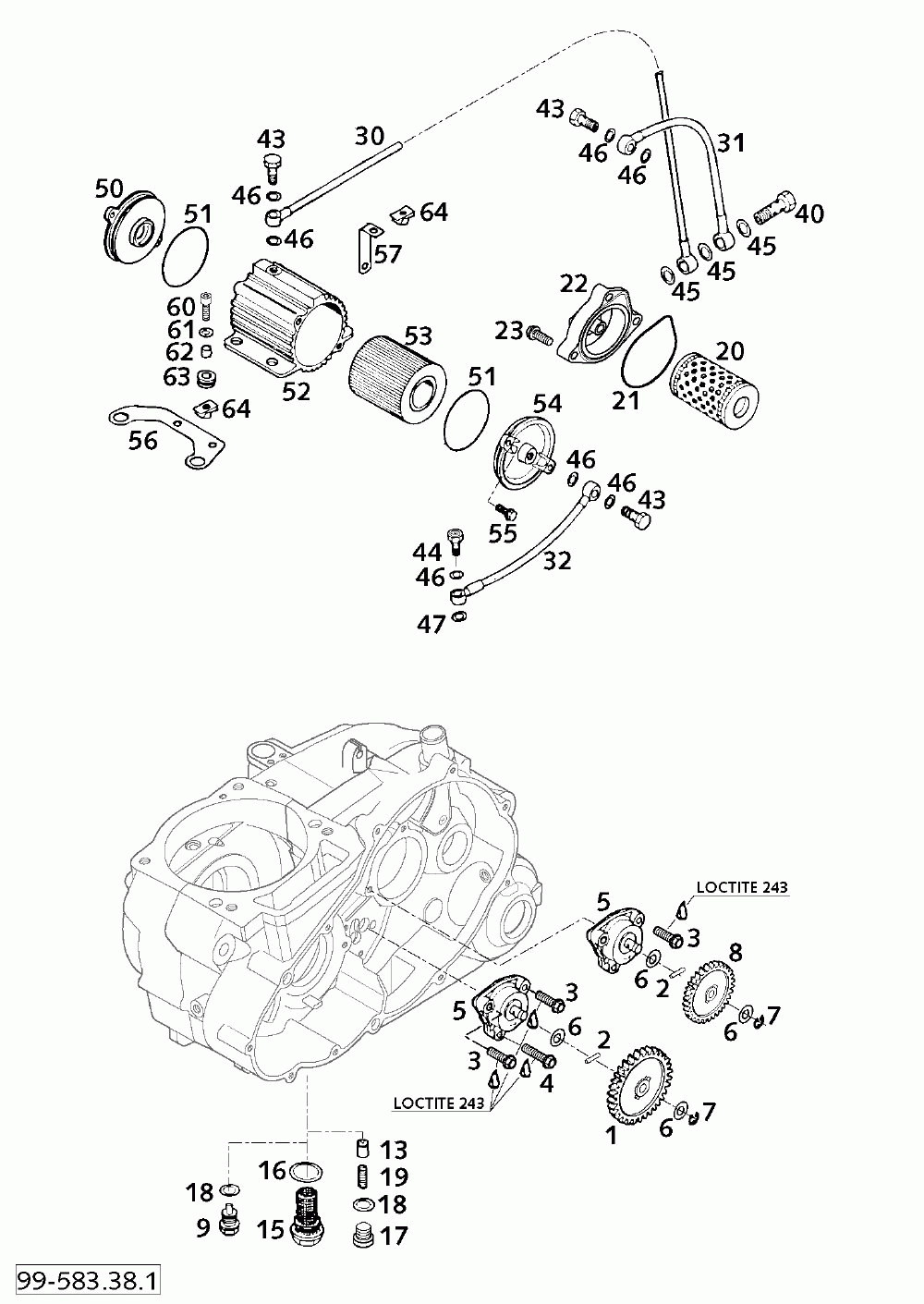

Schmiersystem lubricating system 620

KTM 620 SUPER COMPETITION, 620 SC SUPERMOTO ENGINE
KTM
#oem кодцена
1
58038001100
Oil Pump Gear 31-t
2
0402251980
Needlerol.din5402 Nra 2, 5x19, 8
3
0015060203
Hh Collar Screw M 6x20 Ws=8
4
0015060253
Hh Collar Screw M 6x25 Ws=8
5
58038007700
Oil Pump Mikuni G-73-10
6
58038007755
Stop Disk 8, 1 X 15 X 0, 5
7
0799060000
Tab Washer Din6799-rs 6, 0
8
58438001000
Oil Pump Gear 26-t
9
58030021000
Пробка сливная с магнитом M12x1,5
13
58038028000
Valve Piston D=10mm
15
58038019100
Oil Drain Plug M22x1, 5
16
58038017100
Cu-seal Ring Din7603-22x27x2
17
0908120153
Plug Din0908-m12x1, 5
18
58038022000
Кольцо 12x18x1, 5
19
58038023300
Pressure Spring L=25mm D=1mm
20
58038005100
Oil Filter Long
21
58030009000
Gasketring Oilf.cover Viton
22
58030008700
Oil Filter Cover 2001
30
58038234200
Oil Line Filter/ Micro-filter
31
58038334600
Oil Line Filter/inject.va. R/s
55
0010050163
Special Screw Din7500-m5, 0x16
56
57538090000
Bracket For Micro-filter '93
57
57538091000
Bracket Micro-filter '93
60
0912050163
Ah Screw Din0912-m 5x16
60
0912050203
Ah Screw Din0912-m 5x20
61
50232050000
Washer 6, 2x18x2
62
54431032050
Spacer Bushing 6x8x8, 5
63
31008060000
Rubber Sleeve D=8mm Open
64
54603048200
Скоба фиксатор
