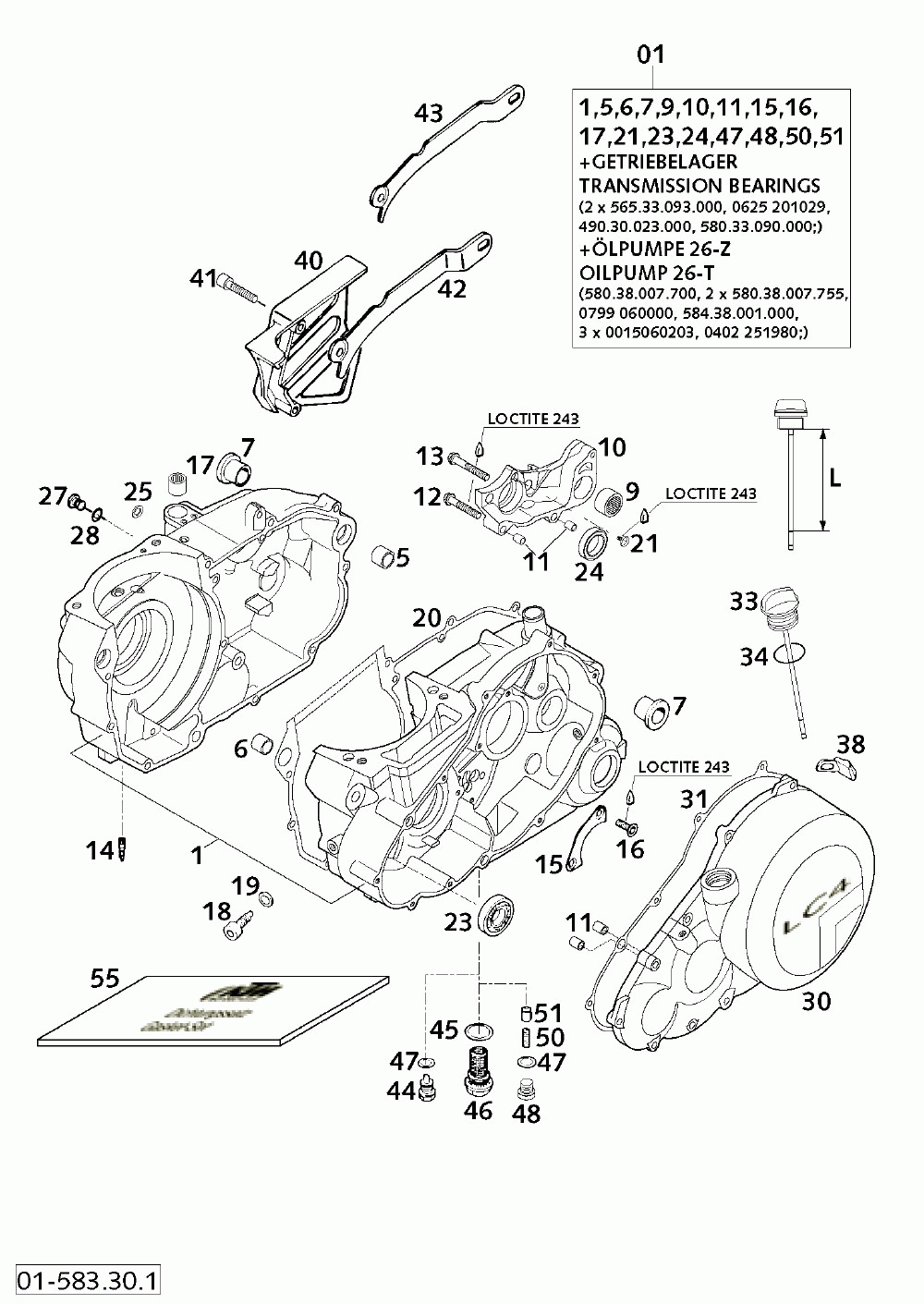

Engine case 620

KTM 620 SUPER COMPETITION, 620 SC SUPERMOTO ENGINE
KTM
#oem кодцена
1
58330000344
Eng.case Sc Cpl.w.tran.bear'97
5
50130027000
Dowel 19 X15, 1x12
6
51030026100
Dowel 17 X 13 X 12
7
50130010000
Crank Case Bush
9
58033097000
Needle Bearing Hk 2216
10
58330011000
Shift Mechanism Support Lc4'94
11
49030090000
Шпонка 9, 8 Х 7 Х 10
12
0015060353
Hh Collar Screw M 6x35 Ws=8
13
0015060403
Hh Collar Screw M 6x40 Ws=8
14
49130450050
Tube Lw 3
15
56530017000
Retaining Plate
16
0991060163
Flat Head Scr. Din7991-m 6x16
17
50332095000
Needle Bearing Hk 1212
18
58030080000
Locating Screw M8 L=23
19
58030081000
Cu-seal Ring 8 X 14 X 3
20
58430039100
Engine Case Gasket Lc4 02
21
0985050103
Oval Head Scr. Din7985-m 5x10
23
0625160030
Grooved Ball Bearing 16003 C3
24
0625618050
Ball Bearing 61805 C3
25
0603061001
Cu-seal Ring Din7603-6x10x1
27
49030029000
Oil Drain Plug M10x1, 5 Ah-ws=6
28
0603100141
Уплотнитель шланга
30
5833010124430
Clutch Cover Cpl. Black 03
31
58330025000
Clutch Cover Gasket '94
33
58330020144
Oil Dipstick Cpl. L=93mm '96
34
0770160030
O-ring 16, 00x3, 00 Nbr 70
38
58333041000
Bump Rubber
40
58030050700
Chain Cover Black '99
41
0912060303
Ah Screw Din0912-m 6x30
42
58030047515
Chain Damper Sheet Lc4 '90
43
58030047615
Chain Damper Sheet Duke'94
44
58030021000
Пробка сливная с магнитом M12x1,5
45
58038017100
Cu-seal Ring Din7603-22x27x2
46
58038019100
Oil Drain Plug M22x1, 5
47
58038022000
Кольцо 12x18x1, 5
48
0908120153
Plug Din0908-m12x1, 5
50
58038023300
Pressure Spring L=25mm D=1mm
51
58038028000
Valve Piston D=10mm
55
58330099200
Gasket Set 400/620 Sc, Egs '97
56
0015060553
Hh Collar Screw M 6x55 Ws=8
57
0015060653
Hh Collar Screw M 6x65 Ws=8
58
0015060303
Hh Collar Screw M 6x30 Sw=8
59
0015060253
Hh Collar Screw M 6x25 Ws=8
13
0025060406
Hh Collar Screw M6x40 Tx30
