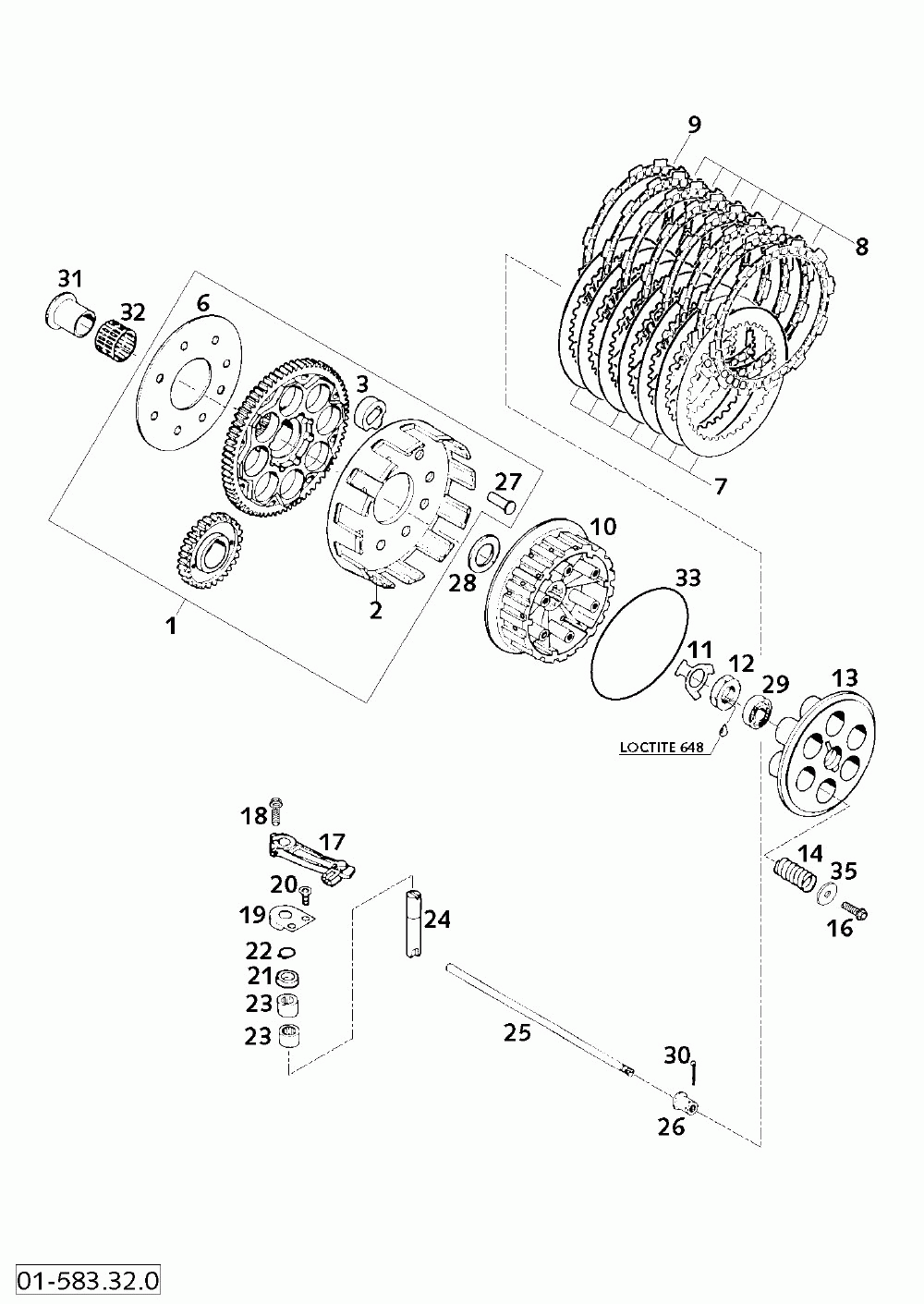

Kupplung clutch 620

KTM 620 SUPER COMPETITION, 620 SC SUPERMOTO ENGINE
KTM
#oem кодцена
1
57932001044
Out Clutch Hub & Wh. 81zmil 03
2
58432001000
Outer Clutch Hub Loose Lc4 03
3
58332026000
Damping Element '94
6
58332028000
Bracket 57 X 132 X 1, 5 '94
7
58332112000
Steel Disk 1, 5 Mm Lc4'94
8
58332011300
Lining Disk 2, 7mm Fcc 02
9
58332111300
Lining Disk Turn Out Fcc 02
10
58332002300
Inner Clutch Hub Lc4/lc4-e 04
11
58332018000
Lock Washer '94
12
0936181505
Hexagon Nut Din0936-m18x1, 5 R.
13
58332003200
Pressure Cap Lc4/lc4-e '98
14
58332080000
Clutch Spring 2, 8 X 37
16
0015060203
Hh Collar Screw M 6x20 Ws=8
17
58332014044
Cl.release Lever L=51, 5mm '94
19
54532013000
Retaining Plate For Releasing
20
0991060126
Flat Head Screw Din7991-m 6x12
21
54532093000
Nut Ring Nis 12x20x5, 5
22
0471120010
Circlip Din0471-12x1
23
50332095000
Needle Bearing Hk 1212
24
57532015000
Disengaging Shaft 12 X 66 '93
25
58332017000
Push Rod 224 Mm Lc4'94
26
58332032000
Pressure Bolt Lc4'94
27
58332007000
Rivet 6 X 23 X 11, 2
28
57532013000
Supportwasher 22, 2x35x3 Harde.
29
0625060016
Groov.ball Bear. 6001.2rsr C3
30
0094020163
Pin Din0094-2, 0x16
31
50332070000
Inner Ring With Collar
32
56532095000
Needle Bearing K26x30x22zw.kse
33
0770116030
O-ring 116, 00x3, 00 Hnbr 70
35
58432081000
Washer 6, 5 X 20 X 2
13
58332003300
Pressure Cap Lc4/lc4-e 04
