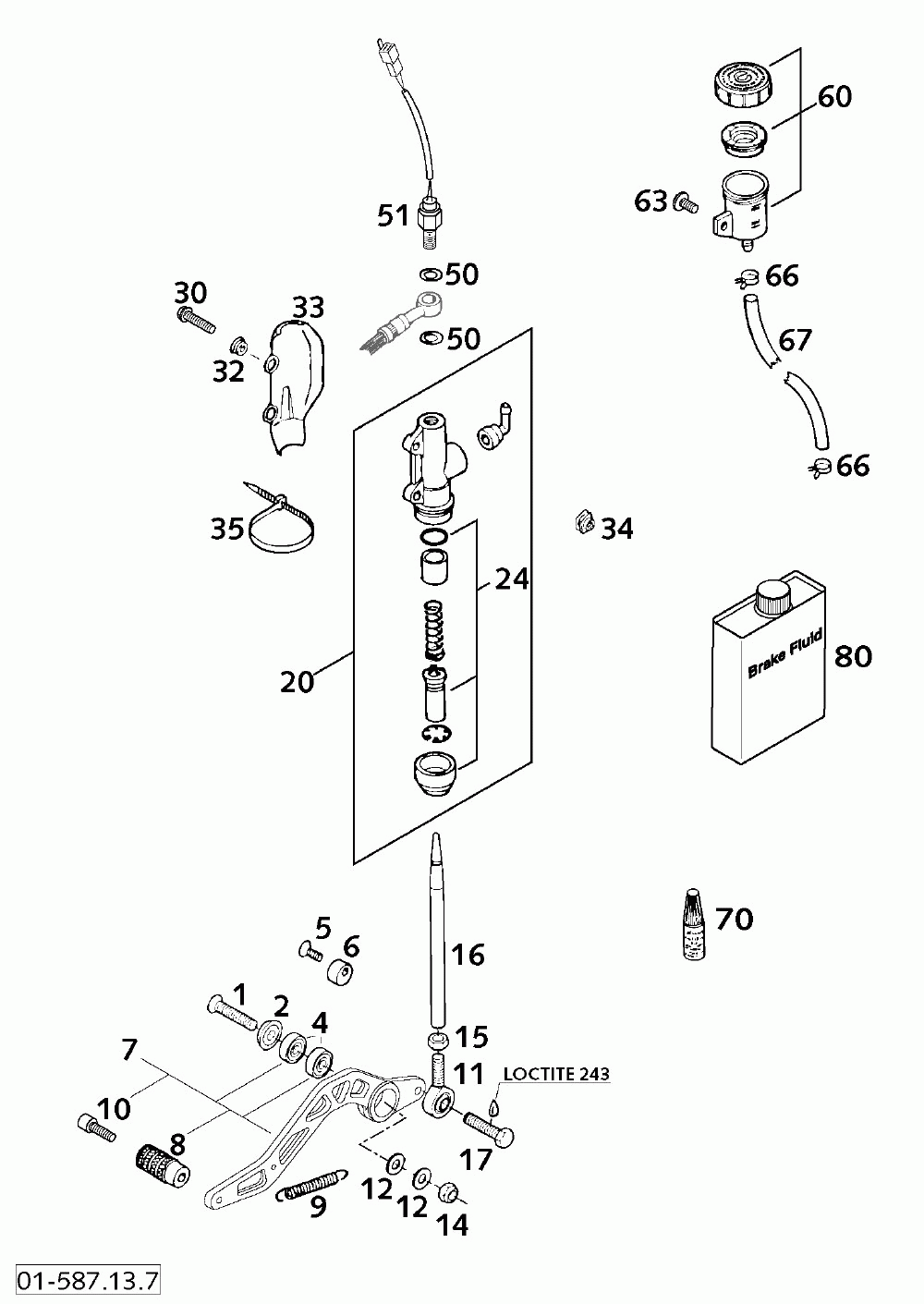

Rear brake control 640

KTM 640 DUKE II CHASSIS
KTM
#oem кодцена
1
0991080353
Flat Head Screw Din7991-m 8x35
2
58303061000
Special Washer Alu 8 X 24 Mm
4
0625006087
Grooved Ball Bear. 608 2rs C3
5
0991060202
Flat Head Din7991-m 6x20
6
58303063000
Brake Lever Stop '93
7
58703060044
Foot Brake Lever Cpl.duke 2000
8
58303060051
Brake Lever Pedal Duke'94
9
13003062000
Return Spring
10
0912060203
Ah Screw Din0912-m 6x20
11
58303062000
Heim Joint M8 W=12mm '93
12
0125080003
Washer Din0125-a 8, 4
14
0985080003
Self Locking Nut Din0985-m 8
15
0934080003
Hexagon Nut Din0934-m 8
16
58303068100
Push Rod Alu L=178mm '93
17
0933080223
Hh Screw Din0933-m 8x22 8.8
20
54513101044
Main Brake Cylinder '89
24
54513150000
Repair Kit Piston 13mm
30
0015060253
Hh Collar Screw M 6x25 Ws=8
32
50213161000
Collar Bushing
33
54513038000
Brake Cyl. Protector "brembo"
34
50235033300
Snap-nut Holder M6 Kp142
35
44011076305
Cable Tie 300/4, 8mm Black
50
42013226000
Cu-seal Ring Din7603-10x16x1
51
50311051100
Brake Light Switch Rear '98
60
54513030044
Brake Fluid Reservoir '89
63
0024060106
Hh Collar Screw M6x10 Tx30
66
58007017000
Ydnac Clamp 10101 (9mm)
80
306054
Brake Fluid Dot 4.0
