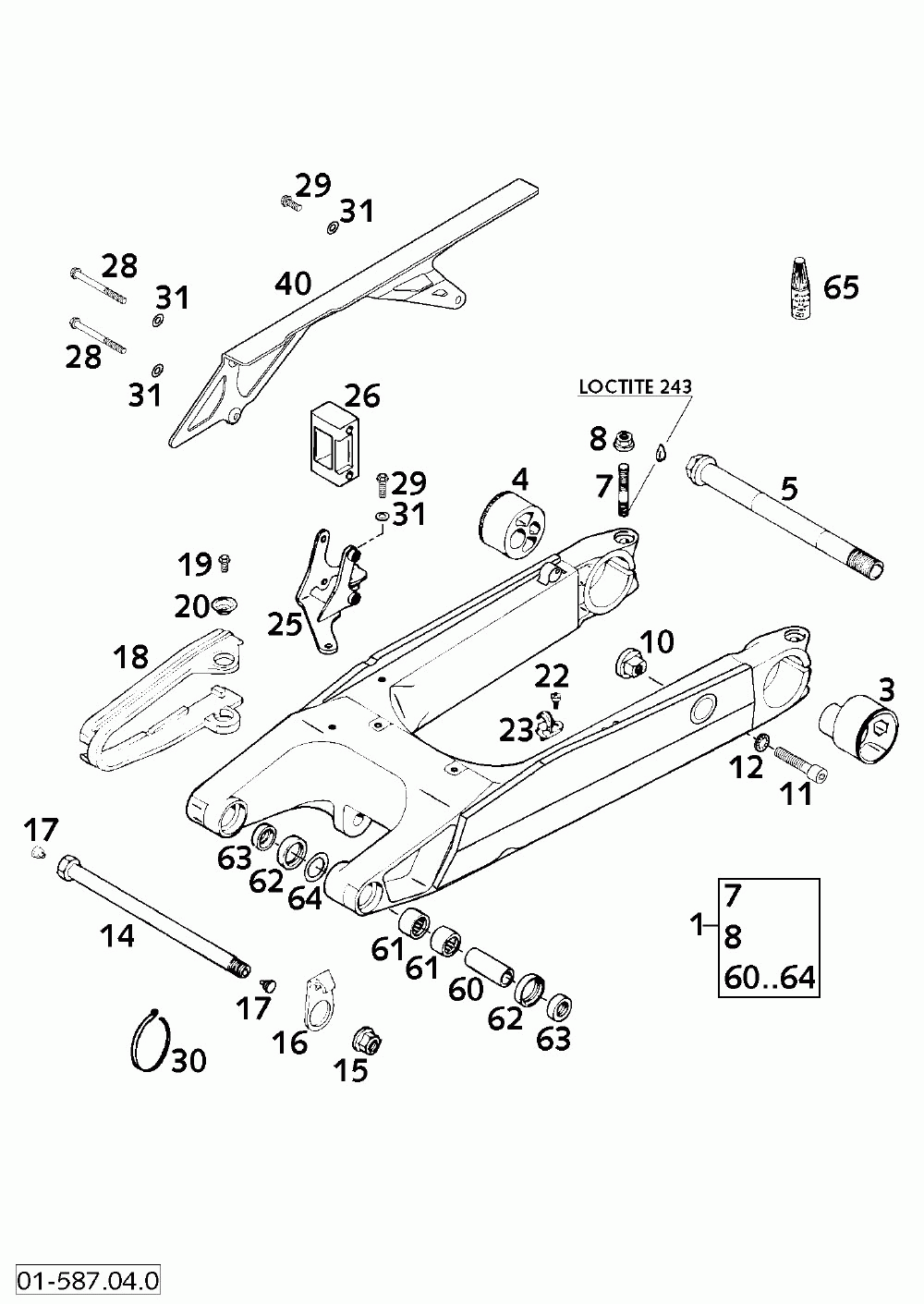

Schwingarm, kettenschutz swingarm, chain guard 640

KTM 640 DUKE II CHASSIS
KTM
#oem кодцена
1
58404060000
Chainguard Sm, Duke 2002
3
58303030011
Eccentrics L/s '94
4
58303130011
Eccentrics R/s '94
5
58310085000
Wheel Spindle Rear L=232mm '94
7
0835100456
Stud Din0835-m10x45
8
54630044000
Collar Nut M10 Ws=13
10
58313050000
Brake Carrier Support
11
0912100453
Ah Screw Din0912-m10x45
12
50233041100
Pair Of Washers M10 Nordlock
14
54603014100
Swingarm Bolt Kpl. L=253
15
54603015000
Self Locking Nut M14x1, 5 Ws=19
16
50230211000
Brake Hose Guide '89
17
54403135000
Plastic Cap Sfl10
18
58307073000
Chain Sliding Guard Duke'94
19
0015060123
Hh Collar Screw M 6x12 Ws=8
20
72210079000
Шайба
22
0010050103
Special Screw M 5, 0x10
23
54611076000
Retaining Clamp For Brake Hose
25
58307068200
Bracket For Chain Guide 02
26
51007066600
Chain Guide Sm/duke 2002
28
0015060553
Hh Collar Screw M 6x55 Ws=8
29
0015060163
Hh Collar Screw M 6x16 Ws=8
30
44011076200
Стяжка пластиковая 6мм
31
0125060003
Washer Din0125-a 6, 4
60
50203081700
Bushing Sleeve 15x20x38, 75
61
59004031000
Needle Bush Hk2012v
62
0760253270
Shaft Seal Ring 25x32x7
63
54603090000
Bucket F.shaftsealring 15x25x9
64
54603036000
Stop Disk 22, 2x31, 7x1
