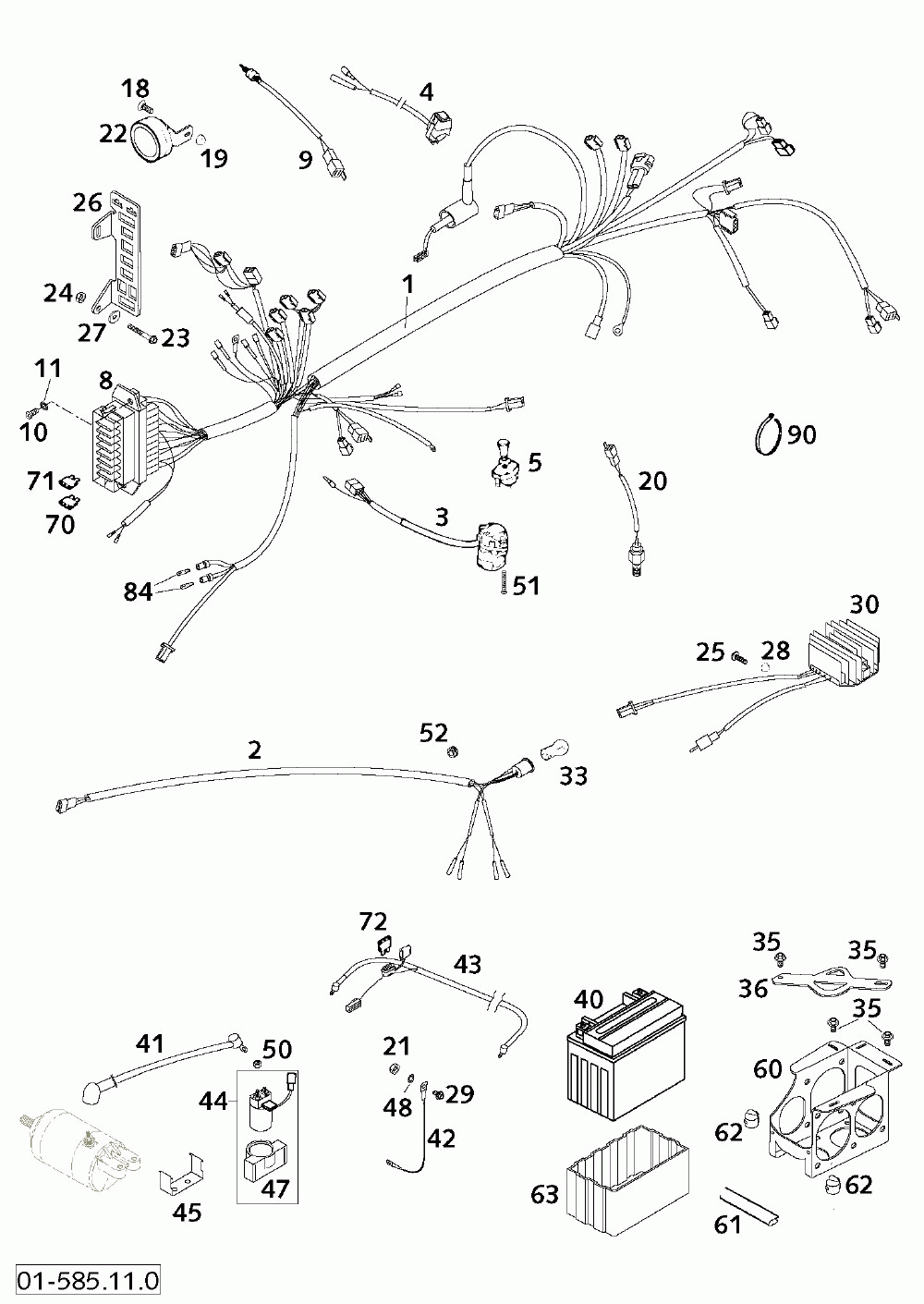

Kabelstrang wiring harness 660

KTM 660 RALLYE CUSTOMER BIKE CHASSIS
KTM
#oem кодцена
2
58511076000
Wiring Harness Rear Rallye '97
3
50311070000
H.light Switch Cev 2/4takt '98
4
50311089200
Short Circuit Button 02
5
55011599000
Pull Switch Loose
10
0985050103
Oval Head Scr. Din7985-m 5x10
11
0797050003
Tooth Lock Wash. Din6797-j 5, 3
18
0991060163
Flat Head Scr. Din7991-m 6x16
19
56509064100
Self Locking Nut M6 10.9
20
50311051100
Brake Light Switch Rear '98
21
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
24
0934050003
Hexagon Nut Din0934-m 5
25
0015060203
Hh Collar Screw M 6x20 Ws=8
27
0021050003
Washer Din9021-a 5, 3
29
0015050163
Hh Collar Screw M 5x16 Ws=8
30
58411034100
Volt.regulator-rectifier 12v
33
58414042000
Bulb 12v 21/5w (bay15s)reinfo.
35
0024060106
Hh Collar Screw M6x10 Tx30
40
58411053000
Battery 12v 8ah '96
44
58411058000
Starter Relay With Hold.rubber
47
58411058050
Hold. Rubber For Startrelay
48
58411098100
Contact Washer M6 Vsv-k6
50
0985060003
Self Lock. Nut Din0985-m 6
52
31008060000
Rubber Sleeve D=8mm Open
61
58214070150
Border Protec. Adventure 2002
62
58111076000
Хомут
63
58411053050
Battery Cover 96
70
58011109105
Fuse 5 A 2003
71
58011109110
Fuse 10 A 2000
72
58011109120
Fuse 20 A
84
49111425000
Bulb 12v 1, 2w (w2x4, 6d)
90
44011076100
% Cable Tie 100/2, 5mm Black
84
49111425200
Bulb 12v 2, 3w (w2x4, 6d)
