Typisierte teile homologated parts 660

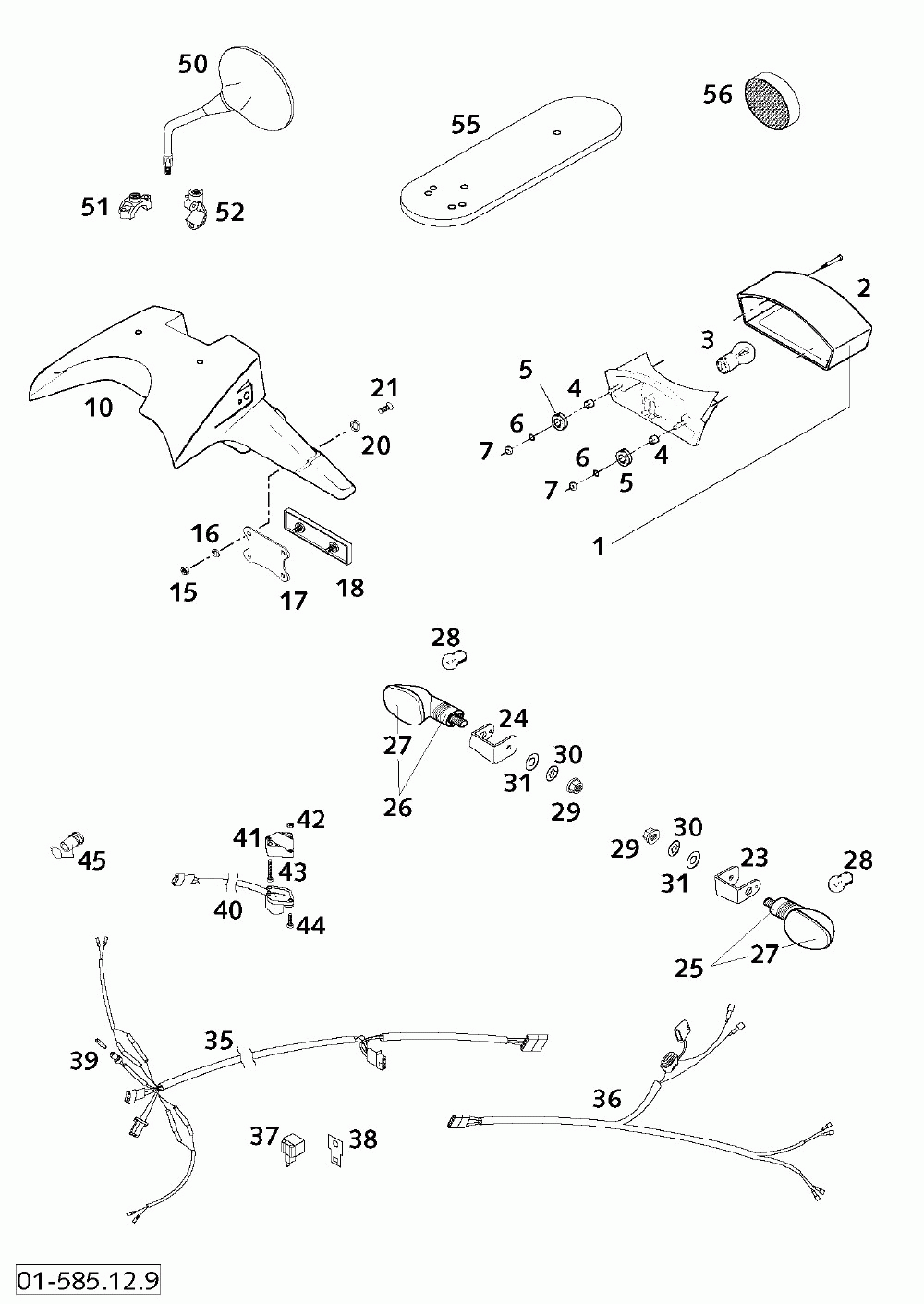

KTM 660 RALLYE CUSTOMER BIKE CHASSIS
KTM
#oem кодцена
1
58311040000
Rear Light Cpl. Cev 358 '93
2
58311041000
Lens '93
3
58414042000
Bulb 12v 21/5w (bay15s)reinfo.
4
58011039000
Spacer Bushing 6, 5 X 8 X 7
5
31008060000
Rubber Sleeve D=8mm Open
6
0021060003
Washer Din9021-a 6, 4
7
0985060003
Self Lock. Nut Din0985-m 6
10
58308013051
Number Plate Carrier Egs '93
15
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
16
0125050003
Шайба Din0125-в 5, 3
17
58412080050
Bracket For Reflector
18
58412080000
Reflector Red Lc4 '98
20
40006006000
Шайба 6мм
21
0966050163
Винт с полупотайной головкой Din0966-м 5х16
25
5841402500030
Flasher Cpl.front L/s Rear R/s
26
5841402600030
Flasher Cpl.front R/s Rear L/s
27
58414028000
Flasher Lens L/s & R/s '98
28
44111015100
Bulb 12v 10w (ba15s)
29
58414030000
Hh Collar Nut M10x1, 25 Ws=13
30
0797100003
Lock Washer Din6797-j10, 5 Zi
31
0125100003
Washer Din0125-a10, 5
35
50311080100
Flas.wiringharn. Front 125-380
36
50311081000
Flas.wiringharn. Rear 125-380
37
44611207200
Flasher Unit 97
38
58211031100
Bracket For Flasher Relay
39
49111425000
Bulb 12v 1, 2w (w2x4, 6d)
40
50311029000
Flasher Switch Cev '98
41
13011070060
Adapter For Flasher Switch '98
42
0934040003
Hexagon Nut Din0934-m 4
43
0084040223
Cyl.head Screw Din0084-m 4x22a
44
0985040163
Flat Head Screw Din7985-m 4x16
45
58011024300
Flasher Indicat.light Green'98
50
58412040100
Rear Mirror L/s+r/s Lc4 2001
51
58012040150
Clamp For Mirror '94
52
59002044000
Clamp Mirror With Pin
39
49111425200
Bulb 12v 2, 3w (w2x4, 6d)
