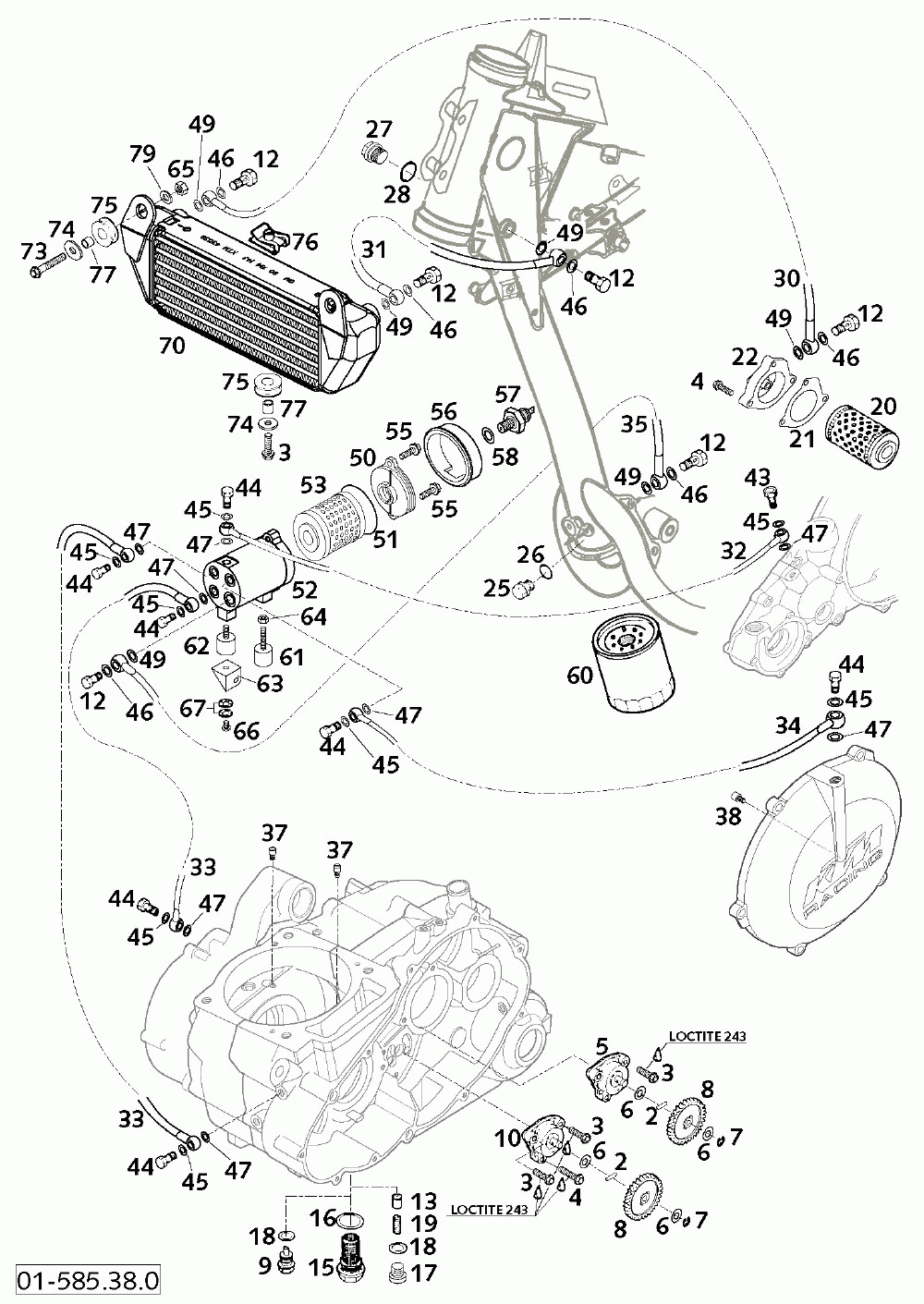

Schmiersystem lubricating system 660

KTM 660 RALLYE CUSTOMER BIKE ENGINE
KTM
#oem кодцена
2
0402251980
Needlerol.din5402 Nra 2, 5x19, 8
3
0015060203
Hh Collar Screw M 6x20 Ws=8
4
0015060253
Hh Collar Screw M 6x25 Ws=8
5
58038007700
Oil Pump Mikuni G-73-10
6
58038007755
Stop Disk 8, 1 X 15 X 0, 5
7
0799060000
Tab Washer Din6799-rs 6, 0
8
58438001000
Oil Pump Gear 26-t
9
58030021000
Пробка сливная с магнитом M12x1,5
12
54313025000
Hollow Screw M10 X 1
13
58038028000
Valve Piston D=10mm
15
58038019100
Oil Drain Plug M22x1, 5
16
58038017100
Cu-seal Ring Din7603-22x27x2
17
0908120153
Plug Din0908-m12x1, 5
18
58038022000
Кольцо 12x18x1, 5
19
58538023000
Oil Pres.spring 5 Bar Red 2001
20
58038005100
Oil Filter Long
21
58530041000
Oil Filter Cover Gasket 2001
22
58030008700
Oil Filter Cover 2001
25
0910100003
Plug Din0910-m 10x1
26
58038022900
Cu-seal Ring 10 X 14 X 1, 5
27
0910160153
Plug Din0910-m16x1, 5
28
0603162220
Cu-seal Ring 16x22x2
37
57031523090
Carburetor Jet Dellorto 90
43
59038029000
Jet Screw "100" M8x1 Ws=12
44
58038029000
Banjo Bolt M8x1
45
0603082131
Copper Gask.din7603- 8, 2x13x1
46
0603100141
Уплотнитель шланга
47
0603821220
Copper Gasket 8, 2x12x2 Mm 2001
49
0603101420
Copper Gasket 10, 2x14x2 Mm 01
51
0770400025
O-ring 40, 00x2, 50 Nbr 70
53
59038046144
Oil Filter Short With Gasket
55
0015050123
Hh Collar Screw M 5x12 Ws=8
57
58338091000
Oilpressure Switch Hella Duke
60
58338045100
Screw Type Filter
62
43205062100
Rubber Grommet 20x15-m6x10 (1)
64
0934060003
Hexagon Nut Din0934-m 6
65
0985060003
Self Lock. Nut Din0985-m 6
66
0902060083
Ah Oval Screw Iso 7380 M 6x8
67
50233041000
Pair Of Washers M 6 Nordlock
73
0015060353
Hh Collar Screw M 6x35 Ws=8
74
0021060003
Washer Din9021-a 6, 4
75
31008060000
Rubber Sleeve D=8mm Open
76
50235033300
Snap-nut Holder M6 Kp142
77
54431032050
Spacer Bushing 6x8x8, 5
79
0125060003
Washer Din0125-a 6, 4
