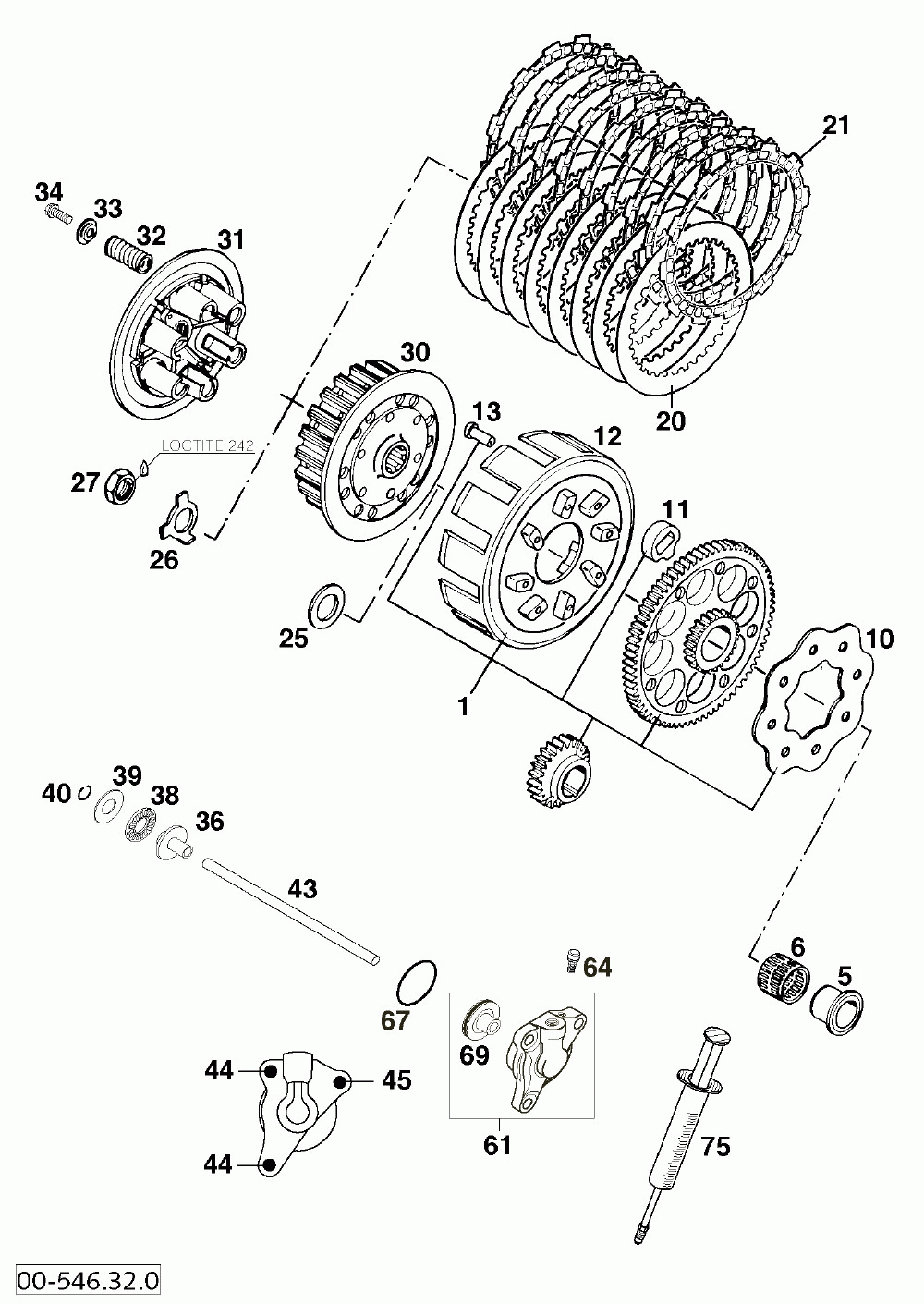

Kupplung clutch 250/300/380

KTM 250/300/380 SX MXC EXC ENGINE
KTM
#oem кодцена
1
54632001272
Outer Clutch Hub 72t Prim. 25t
1
54632001372
Outer Clutch Hub 72t Prim. 26t
5
50332070000
Inner Ring With Collar
6
56532095000
Needle Bearing K26x30x22zw.kse
10
58132028000
Retaining Plate
11
58132026000
Damping Element
12
54632001200
Outer Clutch Hub Loose
13
0733060150
Clutch Rivet Din7338- 6x15
20
54832012100
Стальной Диск
21
54832011000
Lining Disc Fcc 04
25
57532013000
Supportwasher 22, 2x35x3 Harde.
26
56532018000
Гровер
27
0936181505
Hexagon Nut Din0936-m18x1, 5 R.
30
54632002200
Внутренняя Ступица Муфты
31
54632003000
Pressure Cap 250-380 '98
32
54632080000
Clutch Spring 2, 5x43 8, 5w
33
58132081000
Spring Retainer 6, 2 X 20 X 3, 2
34
0015060163
Hh Collar Screw M 6x16 Ws=8
36
50332054051
Pressure Piece 125-380 '98
38
54637097200
Axial Needle Bearing Axk 1226
39
54637098200
Axial Washer As1226 12x26x1
39
54637098300
Axial Washer 12, 5x25, 8x1, 5
40
0993012000
Circlip Din7993-rw12
43
54732054000
Push Rod L=199, 8mm 250-380 '99
45
0015060203
Hh Collar Screw M 6x20 Ws=8
61
59032061044
% Output Cylinder Cpl. 27mm 03
64
54732064000
Штуцер С Колпачком
67
0770300015
O-ring 30, 00x1, 50 Nbr 70
69
54632066000
Piston W. O-ring 250-380 '2000
75
50329050000
Vent Injektion Hydr. Clutch
