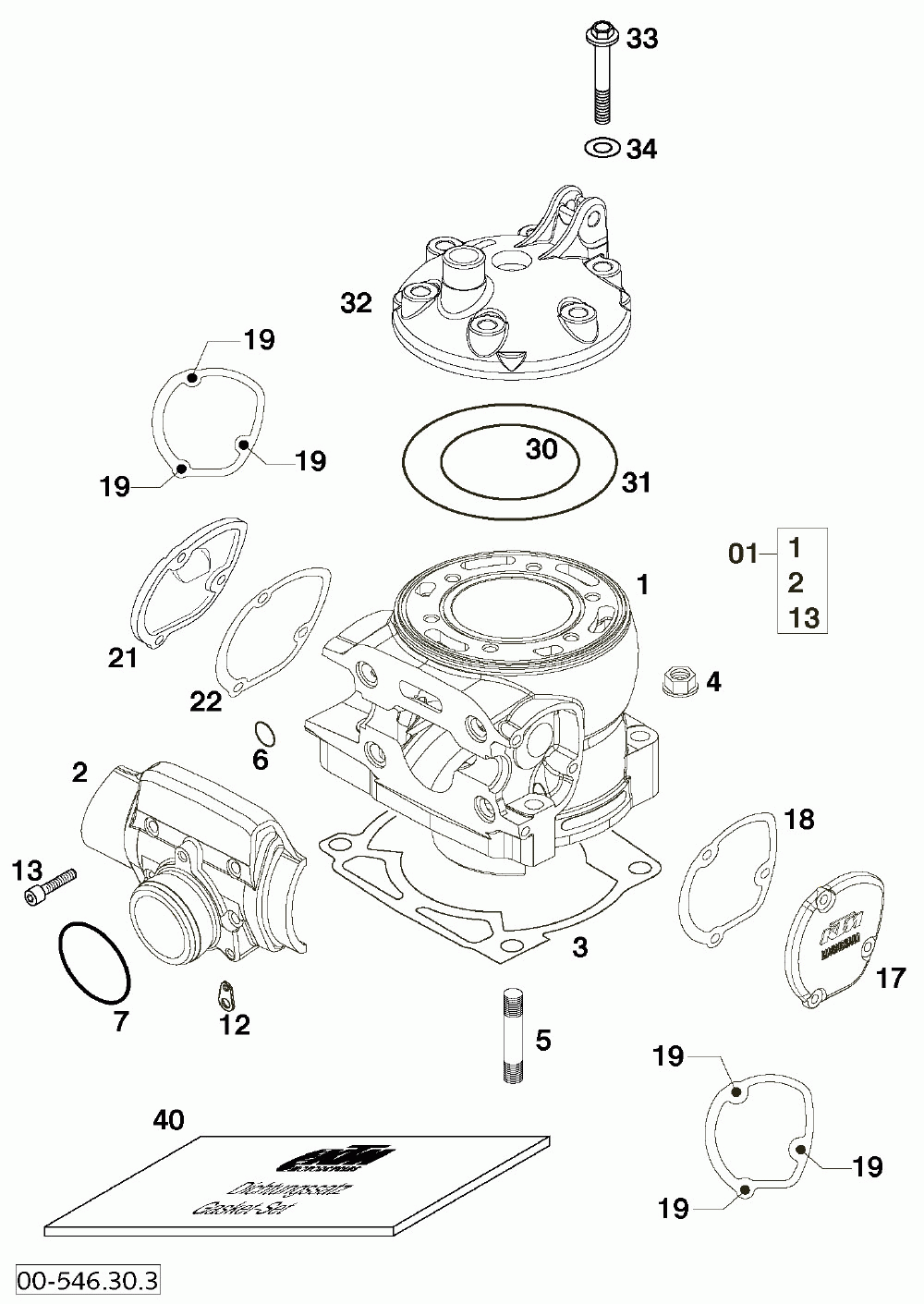

Zylinder cylinder 250

KTM 250/300/380 SX MXC EXC ENGINE
KTM
#oem кодцена
1
54630046000
Exhaust Flange Gasket
3
54630030102
Cylinder Base Gasket 0, 20mm'96
3
54630030104
Cylinder Base Gasket 0, 40mm'98
3
54630030105
Cylinder Base Gasket 0, 50mm'96
3
54630030107
Cylinder Base Gasket 0, 75mm'96
4
54630044000
Collar Nut M10 Ws=13
5
0835100456
Stud Din0835-m10x45
6
0770116241
O-ring 11, 3 X2, 4 Silicon
7
0770440030
O-ring 44, 00x3, 00 Viton
12
51005074000
Retaining Plate
13
0912060303
Ah Screw Din0912-m 6x30
17
60008001100
Head Light Mask 07
18
54737006000
Gasket For Control Cover L/s
19
0912050123
Ah Screw Din0912-m 5x12
21
5473700700098
Control Cover R/s 2001
22
54737008000
Gasket For Control Cover R/s
30
0770760021
O-ring 76, 00x2, 00 Viton
31
0770114020
O-ring 114, 00x2, 00 Silicone
32
54630206300
Cylinder Head Sx 250 2002
33
56530079000
Collar Screw M8x42 Ws=13 10.9
34
56530080000
Cu-seal Ring 8 X 16 X 1
40
54630097100
Gasket Set Cyl. 250/300 96-06
