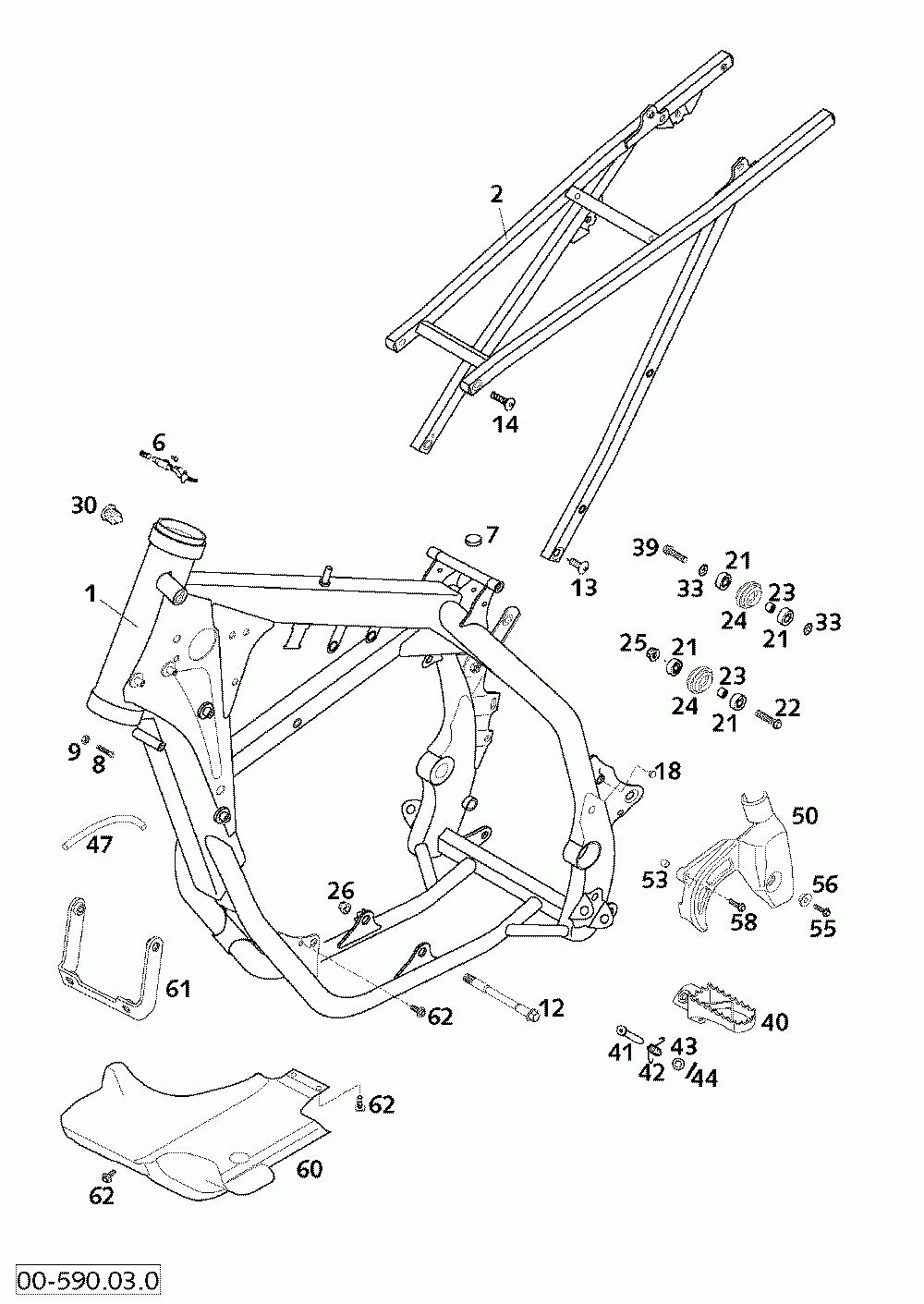

Rahmen, ausleger frame, sub frame 400/520

KTM 400/520 SX, EXC RACING CHASSIS
KTM
#oem кодцена
1
42007049000
Plastic Cap
2
59003002044
Sub Frame Cpl. Alu Racing 2000
6
71003007000
Steering Head Lock Cpl. Zadi
7
50307020000
Rubber Buffer For Tank '98
8
59001037000
Special Screw M8x26 Ws=10
9
0934080003
Hexagon Nut Din0934-m 8
12
59003013000
Enginebrac.screw M10x123 Ws=13
13
54610052000
Винт M8x20 Ws=6
14
54510052100
Sprocket Screw-ah M8x26 Ws=6
18
54403135000
Plastic Cap Sfl10
21
0625006087
Grooved Ball Bear. 608 2rs C3
22
0015080353
Hh Collar Screw M 8x35 Ws=10
23
74003021000
Bushing 8.2 X 12 X 6
24
52303053000
Chain Roll D=30mm 125-380 '99
25
54310086200
Self Locking Nut M8 10.9
26
54310086100
Self Locking Nut M10 Cu Ws=14
33
36003014000
Стопорная шайба 8 мм
39
0025080306
Hh Collar Screw M8x30 Tx40
40
59003040050
Foot Ped L/s Exc Silver 2000
40
59003040250
Foot Peg L/s Silver 02
41
54603044000
Bolt For Footrest 9, 8 X 50
42
54603041000
Footrest Spring L/s & R/s
43
0125100003
Washer Din0125-a10, 5
44
0094032253
Pin Din0094-3, 2x25 Steel
50
59030060050
Bushing F. Sprocket Cover Rac.
53
54613038150
Bushing 6, 5x8x11
55
0015060203
Hh Collar Screw M 6x20 Ws=8
56
50308053000
Bush For Spoiler 6x11x16x7, 5
58
0015060403
Hh Collar Screw M 6x40 Ws=8
62
0014060153
Hh Collar Screw M 6x15 Ws=8
58
0025060406
Hh Collar Screw M6x40 Tx30
